Gokhroo Rajendra Kumar, Anantharaj Avinash, Bisht Devendra, Kishor Kamal, Plakkal Nishad, Aghoram Rajeswari, Mondal Nivedita, Pandey Shashi K, Roy Ramsagar
Department of Cardiology, JLN Medical College and Associated Group of Hospitals, Ajmer, Rajasthan, India.
Department of Cardiology, Ace Heart and Vascular Institute, Shivalik Hospital Premises, Sector 69, Mohali, Punjab, India.
Ann Pediatr Cardiol. 2017 Jan-Apr;10(1):31-38. doi: 10.4103/0974-2069.197053.
Almost all presently available pediatric echocardiography Z-score nomograms are based on Western data. They may not be a suitable reference standard for assessing the sizes of cardiac structures of children from developing countries.
This study's objective was to collect normative data of 21 commonly measured cardiovascular structures using M-mode and two-dimensional echocardiography in Indian children aged between 4 and 15 years and to derive Z-score nomograms for each.
The study was conducted at two centers in India - Ajmer, Rajasthan, and Mohali, Punjab. We studied a community-based sample involving healthy school going children. After excluding children with cardiovascular abnormalities on the screening echocardiogram, 746 children were included in the final analysis. Echocardiographic assessment was performed using a Philips iE33 system.

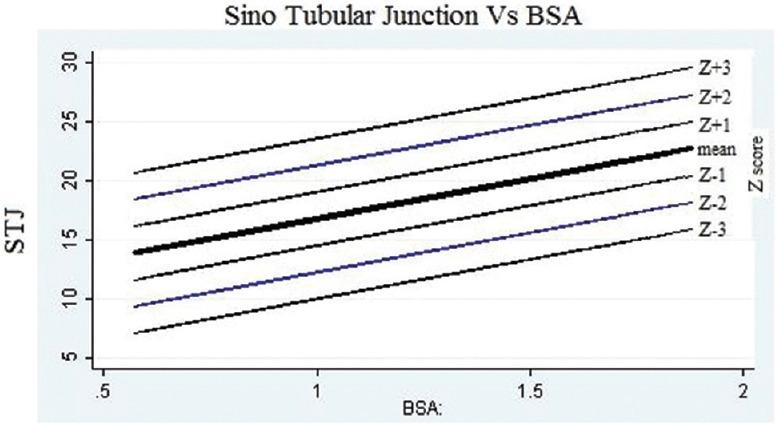

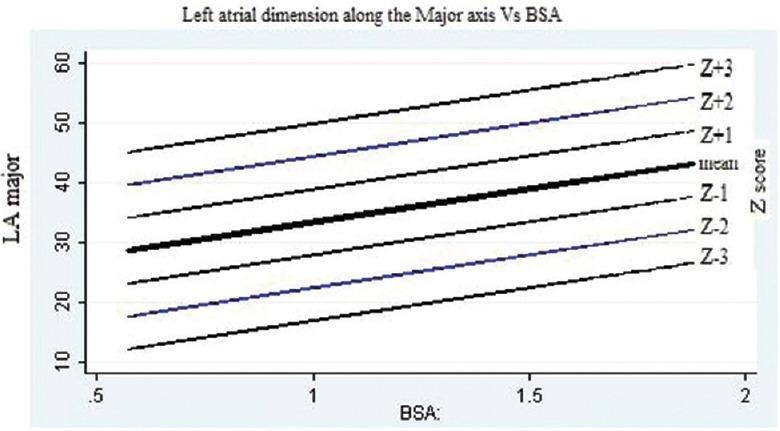

For each parameter measured, seven models were evaluated to assess the relationship of that parameter with the body surface area and the one with the best fit was used to plot the Z-score chart for that parameter. Z score charts were thus derived.
The Z-score nomograms derived by this study may be better alternatives to the Western nomograms for use in India and other developing countries for preprocedural decision making in the pediatric population. However, they will require validation in large-scale studies before they can become clinically applicable.
目前几乎所有可用的儿科超声心动图Z值 nomogram均基于西方数据。它们可能不是评估发展中国家儿童心脏结构大小的合适参考标准。
本研究的目的是收集4至15岁印度儿童使用M型和二维超声心动图对21个常用测量心血管结构的规范数据,并为每个结构推导Z值 nomogram。
该研究在印度的两个中心进行——拉贾斯坦邦的阿杰梅尔和旁遮普邦的莫哈利。我们研究了一个基于社区的样本,包括健康的在校儿童。在排除筛查超声心动图显示有心血管异常的儿童后,746名儿童纳入最终分析。使用飞利浦iE33系统进行超声心动图评估。
对于每个测量参数,评估了七个模型以评估该参数与体表面积的关系,并使用拟合最佳的模型绘制该参数的Z值图表。由此得出Z值图表。
本研究得出的Z值 nomogram可能比西方 nomogram更适合在印度和其他发展中国家用于儿科人群术前决策。然而,在它们能够临床应用之前,需要在大规模研究中进行验证。
