Karlsruhe Institute of Technology, Institute of Applied Geosciences, Adenauerring 20 b, Karlsruhe, Germany.
University of Tuebingen, Department of Geosciences, Wilhelmstraße 56, Tuebingen, Germany.
PLoS One. 2018 Mar 6;13(3):e0193826. doi: 10.1371/journal.pone.0193826. eCollection 2018.

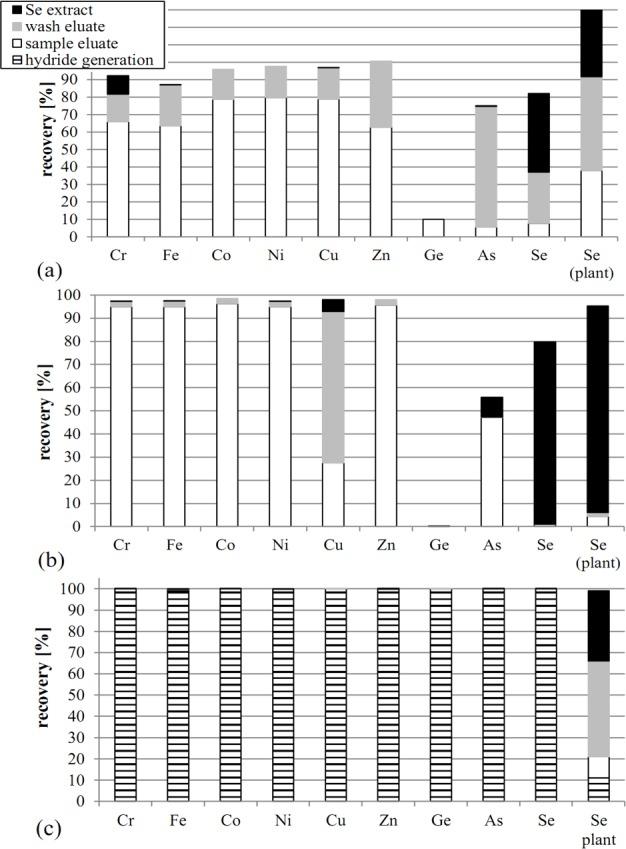

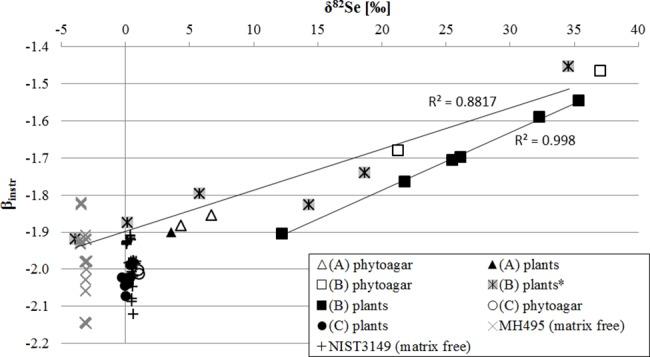

Selenium (Se) is an important micronutrient but also a strong toxin with a narrow tolerance range for many organisms. As such, a globally heterogeneous Se distribution in soils is responsible for various disease patterns (i.e. Se excess and deficiency) and environmental problems, whereby plants play a key role for the Se entrance into the biosphere. Selenium isotope variations were proved to be a powerful tracer for redox processes and are therefore promising for the exploration of the species dependent Se metabolism in plants and the Se cycling within the Critical Zone. Plant cultivation setups enable systematic controlled investigations, but samples derived from them-plant tissue and phytoagar-are particularly challenging and require specific preparation and purification steps to ensure precise and valid Se isotope analytics performed with HG-MC-ICP-MS. In this study, different methods for the entire process from solid tissue preparation to Se isotope measurements were tested, optimized and validated. A particular microwave digestion procedure for plant tissue and a vacuum filtration method for phytoagar led to full Se recoveries, whereby unfavorable organic residues were reduced to a minimum. Three purification methods predominantly described in the literature were systematically tested with pure Se solution, high concentrated multi-element standard solution as well as plant and phytoagar as target matrices. All these methods efficiently remove critical matrix elements, but differ in Se recovery and organic residues. Validation tests doping Se-free plant material and phytoagar with a reference material of known Se isotope composition revealed the high impact of organic residues on the accuracy of MC-ICP-MS measurements. Only the purification method with no detectable organic residues, hydride generation and trapping, results in valid mass bias correction for plant samples with an average deviation to true δ82/76Se values of 0.2 ‰ and a reproducibility (2 SD) of ± 0.2 ‰. For phytoagar this test yields a higher deviation of 1.1 ‰ from the true value and a 2 SD of ± 0.1 ‰. The application of the developed methods to cultivated plants shows sufficient accuracy and precision and is a promising approach to resolve plant internal Se isotope fractionations, for which respective δ82/76Se values of +2.3 to +3.5 ‰ for selenate and +1.2 to +1.9 ‰ for selenite were obtained.
硒(Se)是一种重要的微量元素,但对许多生物体来说也是一种很强的毒素,其耐受范围很窄。因此,土壤中硒的全球异质性分布导致了各种疾病模式(即硒过量和缺乏)和环境问题,而植物在硒进入生物圈的过程中起着关键作用。硒同位素的变化被证明是氧化还原过程的有力示踪剂,因此对于探索植物中依赖于物种的硒代谢和关键带内的硒循环具有很大的潜力。植物培养装置可以进行系统的控制研究,但从中提取的样品——植物组织和植物琼脂——特别具有挑战性,需要进行特定的准备和净化步骤,以确保使用 HG-MC-ICP-MS 进行精确和有效的硒同位素分析。在本研究中,测试、优化和验证了从固体组织准备到硒同位素测量的整个过程的不同方法。一种特殊的植物组织微波消解程序和一种植物琼脂真空过滤方法导致了完全的硒回收,同时将不利的有机残留物减少到最低水平。系统地测试了文献中主要描述的三种净化方法,分别用纯硒溶液、高浓度多元素标准溶液以及植物和植物琼脂作为目标基质进行测试。所有这些方法都能有效地去除关键的基质元素,但在硒的回收和有机残留物方面有所不同。用已知硒同位素组成的参考物质对无硒植物材料和植物琼脂进行掺杂的验证测试表明,有机残留物对 MC-ICP-MS 测量的准确性有很大的影响。只有没有可检测到的有机残留物的净化方法,即氢化物发生和捕获,才能对植物样品进行有效的质量偏差校正,其平均偏差为 0.2‰,重复性(2 SD)为±0.2‰。对于植物琼脂,该测试的偏差为 1.1‰,2 SD 为±0.1‰。所开发方法在栽培植物中的应用表明具有足够的准确性和精密度,是解决植物内部硒同位素分馏的有前途的方法,为此获得了硒酸盐为+2.3 至+3.5‰,亚硒酸盐为+1.2 至+1.9‰的相应 δ82/76Se 值。
