Influence of respiratory mechanics and drive on genioglossus movement under ultrasound imaging.

METHODS

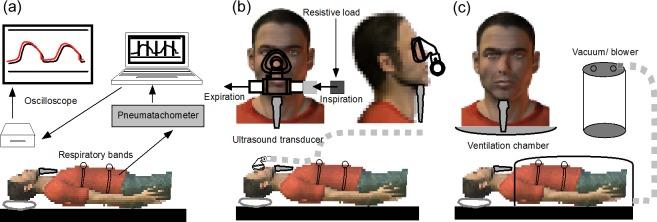

Twenty healthy subjects (10 males, age 28±5 years [mean ± SD]) lay supine, awake, with the head in a neutral position. Ventilation was monitored with inductance bands. Real-time B-mode ultrasound movies were analysed. We measured genioglossus motion (i) during spontaneous breathing, voluntary targeted breathing (normal tidal volume Vt), and voluntary hyperpnoea (at 1.5Vt and 2 Vt); (ii) during inspiratory flow resistive loading; (iii) with changes in end-expiratory lung volume (EELV).

RESULTS

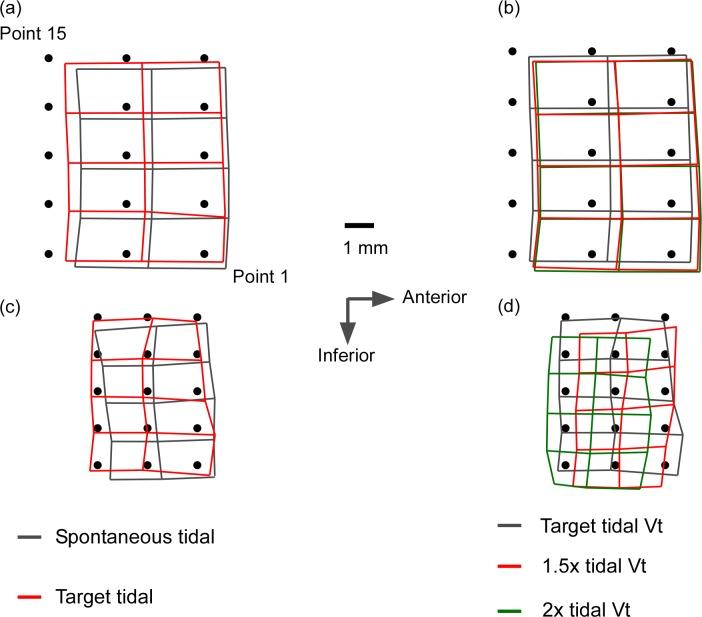

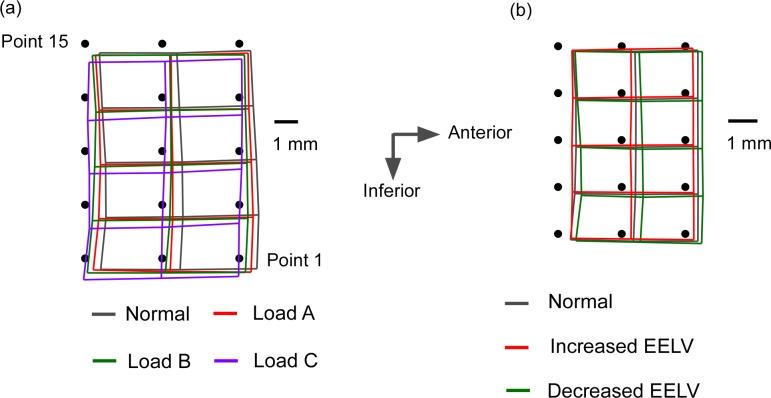

Average peak inspiratory displacement of the infero-posterior region of genioglossus was 0.89±0.56 mm; 1.02±0.88 mm; 1.27±0.70 mm respectively for voluntary Vt, and during voluntary hyperpnoea at 1.5Vt and 2Vt. A change in genioglossus motion was observed with increased Vt. During increasing inspiratory resistive loading, the genioglossus displaced less anteriorly (p = 0.005) but more inferiorly (p = 0.027). When lung volume was altered, no significant changes in genioglossus movement were observed (p = 0.115).

CONCLUSION

In healthy subjects, we observed non-uniform heterogeneous inspiratory motion within the inferoposterior part of genioglossus during spontaneous quiet breathing with mean peak displacement between 0.5-2 mm, with more displacement in the posterior region than the anterior. This regional heterogeneity disappeared during voluntary targeted breathing. This may be due to different neural drive to genioglossus during voluntary breathing. During inspiratory resistive loading, the observed genioglossus motion may serve to maintain upper airway patency by balancing intraluminal negative pressure with positive pressure generated by upper airway dilatory muscles. In contrast, changes in EELV were not accompanied by major changes in genioglossus motion.
