Chen Ji, Wang Wei, Tian Zhaohui, Dong Ying, Dong Tian, Zhu Hua, Zhu Zuoyan, Hu Hongxia, Hu Wei
State Key Laboratory of Freshwater Ecology and Biotechnology, Institute of Hydrobiology, Chinese Academy of Sciences, Wuhan, China.
Beijing Fisheries Research Institute, Beijing Key Laboratory of Fishery Biotechnology, Beijing, China.
Front Genet. 2018 Apr 6;9:117. doi: 10.3389/fgene.2018.00117. eCollection 2018.

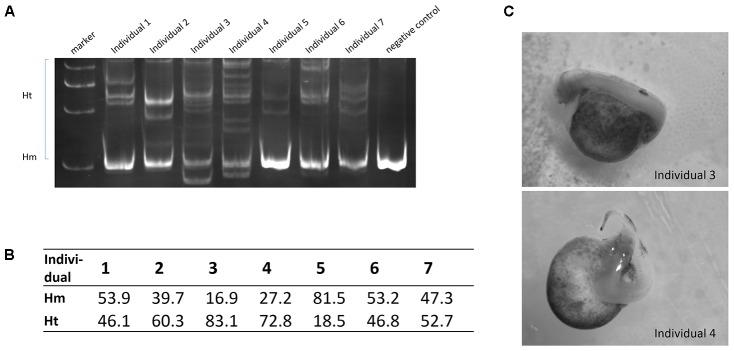

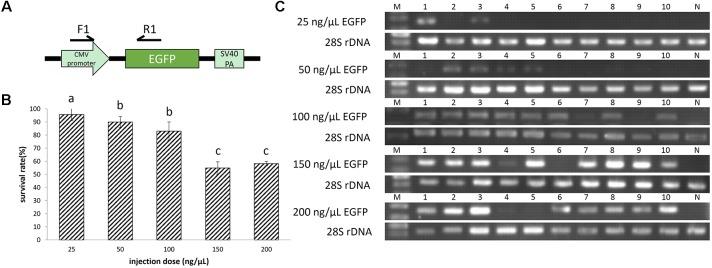

The sturgeon (Acipenseriformes) is an important farmed species because of its economical value. However, neither gene transfer nor gene editing techniques have been established in sturgeon for molecular breeding and gene functional study until now. In this study, we accomplished gene transfer and gene editing in sterlet (), which has the shortest sexual maturation period of sturgeons. The plasmid encoding enhanced green fluorescent protein (EGFP) was transferred into the embryos of sterlet at injection concentration of 100 ng/μL, under which condition high survival rate and gene transfer rate could be achieved. Subsequently, exogenous EGFP was efficiently disrupted by transcription activator-like effector nucleases (TALENs) or clustered regularly interspaced short palindromic repeats (CRISPR)/Cas9 nuclease/guide RNA (gRNA), with injection concentrations of 300 ng/μL TALENs, or 100 ng/μL Cas9 nuclease and 30 ng/μL gRNA, respectively, under which condition high survival rate and gene mutation rate could be achieved. Finally, the endogenous gene in sterlet was successfully mutated by Cas9 nuclease/gRNA. We observed the CRISPR-induced mutation, at a high efficiency with the mutant P0 embryos displaying the expected phenotype of bent spine and twisted tail.
鲟鱼(鲟形目)因其经济价值而成为重要的养殖物种。然而,迄今为止,在鲟鱼中尚未建立用于分子育种和基因功能研究的基因转移或基因编辑技术。在本研究中,我们在性成熟周期最短的小体鲟中实现了基因转移和基因编辑。将编码增强型绿色荧光蛋白(EGFP)的质粒以100 ng/μL的注射浓度导入小体鲟胚胎,在此条件下可实现高存活率和基因转移率。随后,分别以300 ng/μL的转录激活样效应物核酸酶(TALENs)或100 ng/μL的Cas9核酸酶和30 ng/μL的向导RNA(gRNA)的注射浓度,利用TALENs或成簇规律间隔短回文重复序列(CRISPR)/Cas9核酸酶/gRNA有效地破坏了外源EGFP,在此条件下可实现高存活率和基因突变率。最后,利用Cas9核酸酶/gRNA成功地使小体鲟中的内源基因发生了突变。我们观察到CRISPR诱导的突变效率很高,突变的P0胚胎表现出预期的脊柱弯曲和尾巴扭曲的表型。
