Zufía-Rivas Juan, Morales Puerto, Veintemillas-Verdaguer Sabino
Instituto de Ciencia de Materiales de Madrid, ICMM/CSIC Sor Juana Inés de la Cruz 3, Cantoblanco, 28049 Madrid, Spain.
Nanomaterials (Basel). 2018 Jun 27;8(7):470. doi: 10.3390/nano8070470.

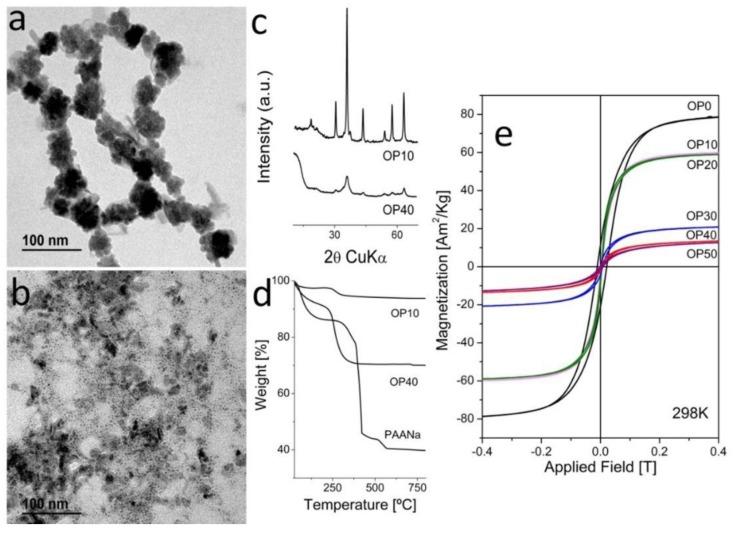

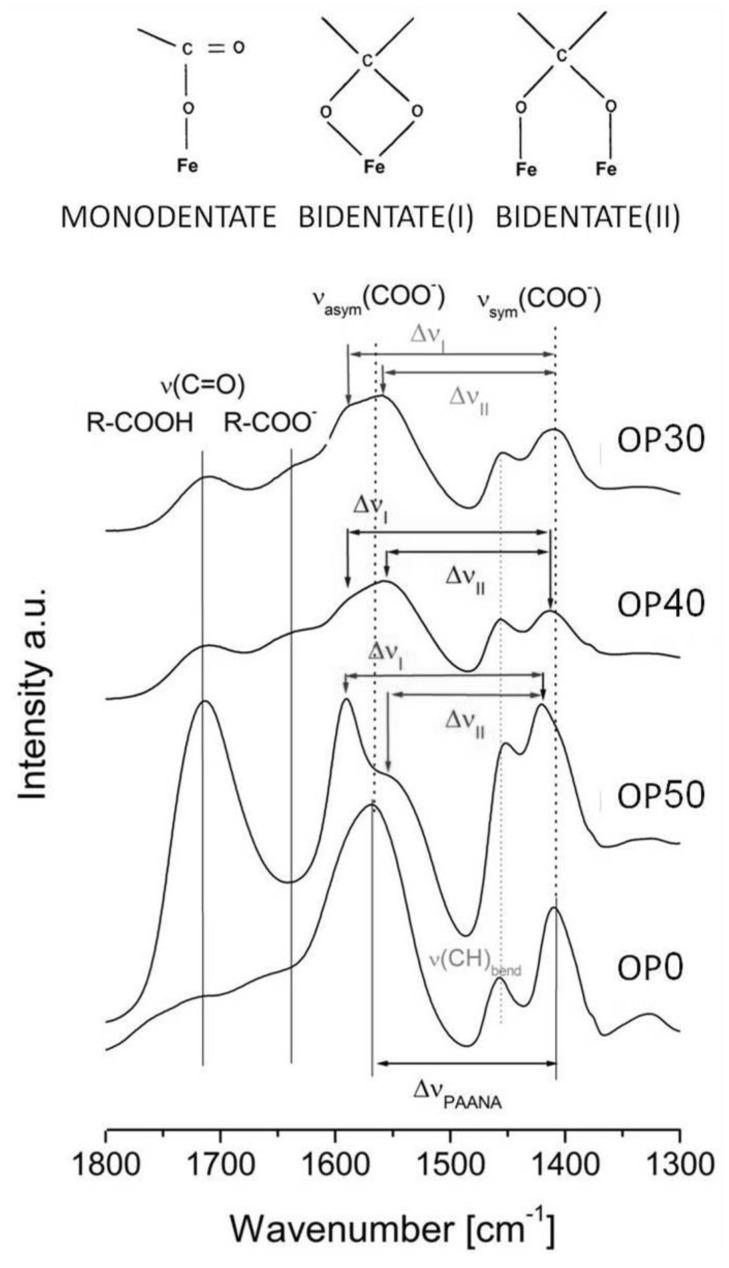

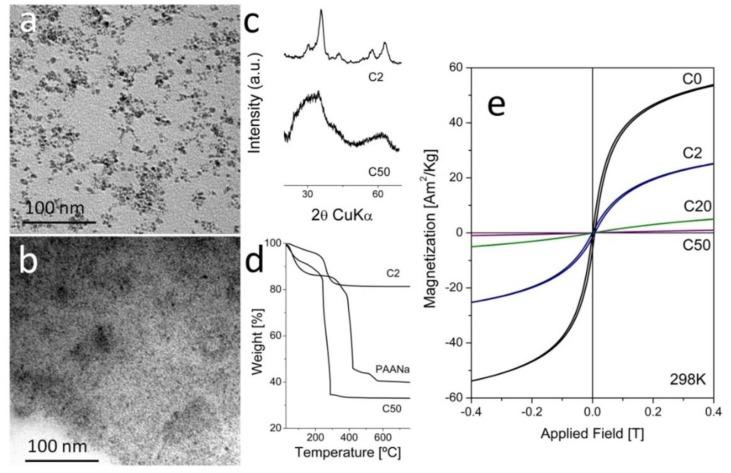

Aqueous dispersions of magnetic nanocomposites have been proposed as draw electrolytes in forward osmosis. One possible approach for the production of nanocomposites based on magnetite nanoparticles and sodium polyacrylate is the synthesis of the magnetic iron oxide by coprecipitation or oxidative precipitation in the presence of an excess of the polymer. In this work, we explored the effect of the polymer proportion on the nanomaterials produced by these procedures. The materials obtained were compared with those obtained by the coating of magnetite nanocrystals produced beforehand with the same polymer. The samples were characterized by chemical analysis, photon correlation spectroscopy, thermogravimetry, X-ray diffraction, infrared spectroscopy, transmission electron microscopy, and magnetometry. The general trend observed is that the polymers heavily modify the texture of the magnetic material during the synthesis, with a drastic reduction of the particle size and magnetic response. The polycrystalline texture that is generated permits the incorporation of the polymer both on the external surface and in the intergranular space. The aqueous dispersions of the nanocomposites were highly stable, with a hydrodynamic size that was roughly independent of the polymer/magnetite ratio. Such dispersions show an osmotic pressure that is proportional to the concentration of the polymer. Interestingly, the proportionality constant was similar to that of the free polymer only in the case of the samples prepared by oxidative precipitation, being lower in the case of the samples prepared by coprecipitation. Finally, the possibilities of using these materials as draw electrolytes in forward osmosis will be briefly discussed.
磁性纳米复合材料的水分散体已被提议用作正向渗透中的汲取电解质。一种基于磁铁矿纳米颗粒和聚丙烯酸钠生产纳米复合材料的可能方法是在过量聚合物存在下通过共沉淀或氧化沉淀合成磁性氧化铁。在这项工作中,我们探讨了聚合物比例对通过这些方法生产的纳米材料的影响。将获得的材料与通过用相同聚合物预先包覆磁铁矿纳米晶体获得的材料进行比较。通过化学分析、光子相关光谱、热重分析、X射线衍射、红外光谱、透射电子显微镜和磁强计对样品进行表征。观察到的总体趋势是,聚合物在合成过程中会严重改变磁性材料的织构,粒径和磁响应会急剧降低。产生的多晶织构允许聚合物在外表面和晶间空间中掺入。纳米复合材料的水分散体高度稳定,流体动力学尺寸大致与聚合物/磁铁矿比例无关。这种分散体显示出与聚合物浓度成正比的渗透压。有趣的是,仅在通过氧化沉淀制备的样品中,比例常数与游离聚合物的比例常数相似,在通过共沉淀制备的样品中则较低。最后,将简要讨论使用这些材料作为正向渗透中的汲取电解质的可能性。
