High-Field and Hybrid MR Imaging, University Hospital Essen, University Duisburg-Essen, Essen, Germany.
Department of Nuclear Medicine, Medical Faculty, University Duisburg-Essen, Essen, Germany.
PLoS One. 2018 Oct 30;13(10):e0206573. doi: 10.1371/journal.pone.0206573. eCollection 2018.
The trend towards faster acquisition protocols in whole-body positron emission tomography/magnetic resonance (PET/MR) arises the question of whether short PET data acquisition protocols in a whole-body multi-station context allow for reduced PET acquisition times while providing adequate PET image quality and accurate quantification parameters. The study goal is to investigate how reducing PET acquisition times affects PET image quality and quantification in whole-body PET/MR in patients with oncologic findings.
Fifty-one patients with different oncologic findings underwent a clinical whole-body 18F-Fluorodeoxyglucose PET/MR examination. PET data was reconstructed with 4, 3, 2, and 1 min/bed time intervals for each patient to simulate the effect of reduced PET acquisition times. The 4-minute PET reconstructions served as reference standard. All whole-body PET data sets were analyzed regarding image quality, lesion detectability, PET quantification and standardized uptake values.

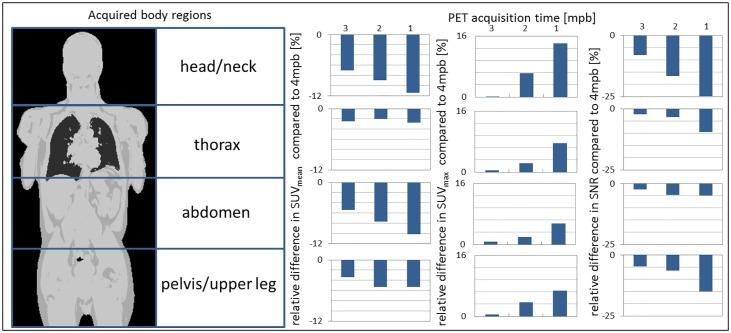

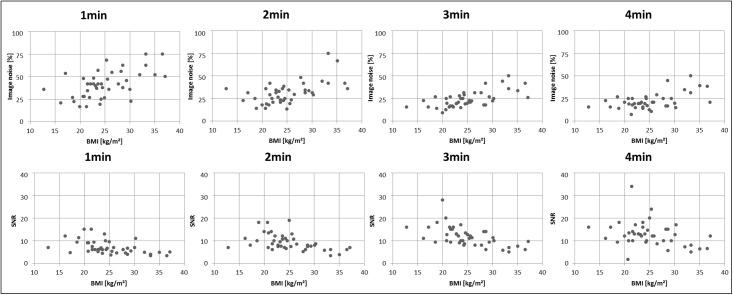

A total of 91 lesions were detected in the 4-minute PET reconstructions. The same number of congruent lesions was also noticed in the 3 and 2 minutes-per-bed (mpb) reconstructed images. A total of 2 lesions in 2 patients was not detected in the 1 minute PET data reconstructions due to poor image quality. Image noise in the blood pool increased from 22.2% (4 mpb) to 42.1% (1 mpb). Signal-to-noise ratio declined with shorter timeframes from 13.1 (4 mpb) to 9.3 (1 mpb). SUVmean and SUVmax showed no significant changes between 4 and 1 mpb reconstructed timeframes.
Reconstruction of PET data with different time intervals has shown that 2 minutes acquisition time per bed position instead of 4 minutes is sufficient to provide accurate lesion detection and adequate image quality in a clinical setting, despite the trends to lower image quality with shorter PET acquisition times. This provides latitude for potential reduction of PET acquisition times in fast PET/MR whole-body examinations.
在全身正电子发射断层扫描/磁共振(PET/MR)中,采集协议向更快的方向发展,这就提出了一个问题,即在全身多床位的情况下,采用较短的 PET 数据采集协议是否可以在提供足够的 PET 图像质量和准确的量化参数的同时,减少 PET 采集时间。本研究的目的是探讨在有肿瘤发现的患者中,全身 PET/MR 中减少 PET 采集时间如何影响 PET 图像质量和定量。
51 例不同肿瘤发现的患者接受了临床全身 18F-氟脱氧葡萄糖 PET/MR 检查。为每位患者模拟减少 PET 采集时间的效果,对 PET 数据进行了 4、3、2 和 1 分钟/床位时间间隔的重建。4 分钟的 PET 重建作为参考标准。对所有全身 PET 数据集进行了图像质量、病灶可探测性、PET 定量和标准化摄取值的分析。
在 4 分钟的 PET 重建中总共检测到 91 个病灶。在 3 分钟和 2 分钟/床位(mpb)重建图像中也发现了相同数量的一致病灶。由于图像质量差,在 1 分钟 PET 数据重建中,有 2 例 2 例患者的 2 个病灶未被检测到。血池中的图像噪声从 22.2%(4mpb)增加到 42.1%(1mpb)。信噪比值随着时间框架的缩短而下降,从 13.1(4mpb)降至 9.3(1mpb)。SUVmean 和 SUVmax 在 4 分钟和 1 分钟重建时间框架之间没有显著变化。
不同时间间隔的 PET 数据重建表明,在临床环境中,2 分钟而不是 4 分钟采集时间/床位位置是足够的,可以提供准确的病灶检测和足够的图像质量,尽管随着 PET 采集时间的缩短,图像质量有下降的趋势。这为在快速 PET/MR 全身检查中潜在减少 PET 采集时间提供了空间。
