Janelia Research Campus, Howard Hughes Medical Institute, Ashburn, VA, United States.
Front Neural Circuits. 2018 Nov 13;12:101. doi: 10.3389/fncir.2018.00101. eCollection 2018.

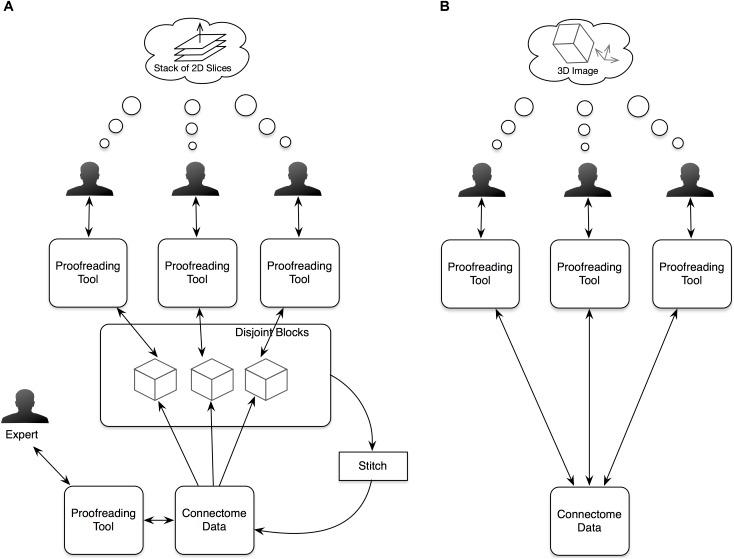

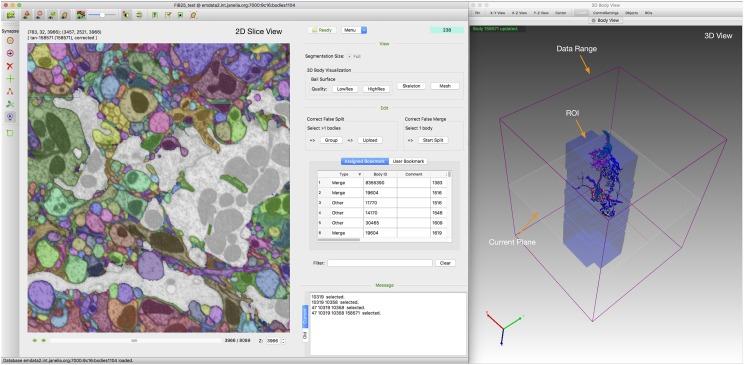

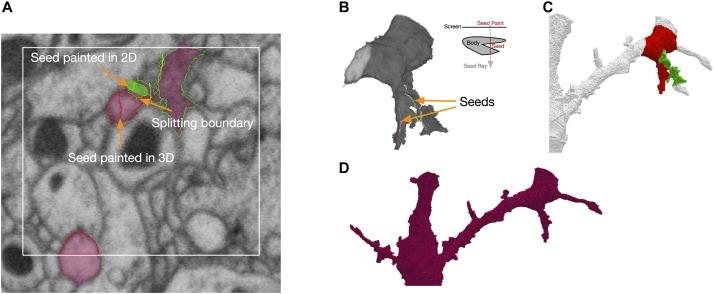

Reconstructing a connectome from an EM dataset often requires a large effort of proofreading automatically generated segmentations. While many tools exist to enable tracing or proofreading, recent advances in EM imaging and segmentation quality suggest new strategies and pose unique challenges for tool design to accelerate proofreading. Namely, we now have access to very large multi-TB EM datasets where (1) many segments are largely correct, (2) segments can be very large (several GigaVoxels), and where (3) several proofreaders and scientists are expected to collaborate simultaneously. In this paper, we introduce NeuTu as a solution to efficiently proofread large, high-quality segmentation in a collaborative setting. NeuTu is a client program of our high-performance, scalable image database called DVID so that it can easily be scaled up. Besides common features of typical proofreading software, NeuTu tames unprecedentedly large data with its distinguishing functions, including: (1) low-latency 3D visualization of large mutable segmentations; (2) interactive splitting of very large false merges with highly optimized semi-automatic segmentation; (3) intuitive user operations for investigating or marking interesting points in 3D visualization; (4) visualizing proofreading history of a segmentation; and (5) real-time collaborative proofreading with lock-based concurrency control. These unique features have allowed us to manage the workflow of proofreading a large dataset smoothly without dividing them into subsets as in other segmentation-based tools. Most importantly, NeuTu has enabled some of the largest connectome reconstructions as well as interesting discoveries in the fly brain.
从 EM 数据集重建连接组通常需要大量的校对自动生成的分割工作。虽然有许多工具可用于追踪或校对,但最近 EM 成像和分割质量的进步提出了新的策略,并为工具设计带来了独特的挑战,以加速校对。也就是说,我们现在可以访问非常大的多 TB 的 EM 数据集,其中:(1) 许多分割在很大程度上是正确的,(2) 分割可以非常大(几个 GigaVoxels),(3) 预计会有几个校对者和科学家同时协作。在本文中,我们引入 NeuTu 作为一种解决方案,以便在协作环境中高效地校对大型高质量分割。NeuTu 是我们高性能、可扩展图像数据库 DVID 的客户端程序,因此可以轻松扩展。除了典型校对软件的常见功能外,NeuTu 还具有一些独特的功能来处理前所未有的大型数据,包括:(1) 大型可变更分割的低延迟 3D 可视化;(2) 具有高度优化的半自动分割的非常大的假合并的交互式分割;(3) 用于在 3D 可视化中调查或标记感兴趣点的直观用户操作;(4) 可视化分割的校对历史;以及 (5) 基于锁的并发性控制的实时协作校对。这些独特的功能使我们能够流畅地管理大型数据集的校对工作流程,而无需像其他基于分割的工具那样将它们划分为子集。最重要的是,NeuTu 已经实现了一些最大的连接组重建以及在果蝇大脑中的有趣发现。
