NILOP Nanomedicine Research Laboratories, National Institute of Lasers and Optronics, Pakistan Institute of Engineering and Applied Sciences Islamabad, Pakistan,
University College of Pharmacy, University of the Punjab, Allama Iqbal Campus, Lahore, Pakistan,
Int J Nanomedicine. 2018 Dec 18;14:1-15. doi: 10.2147/IJN.S176868. eCollection 2019.
This study was aimed to develop doxorubicin-loaded quaternary ammonium palmitoyl glycol chitosan (DOX-GCPQ) nanoformulation that could enable DOX delivery and noninvasive monitoring of drug accumulation and biodistribution at tumor site utilizing self-florescent property of doxorubicin.

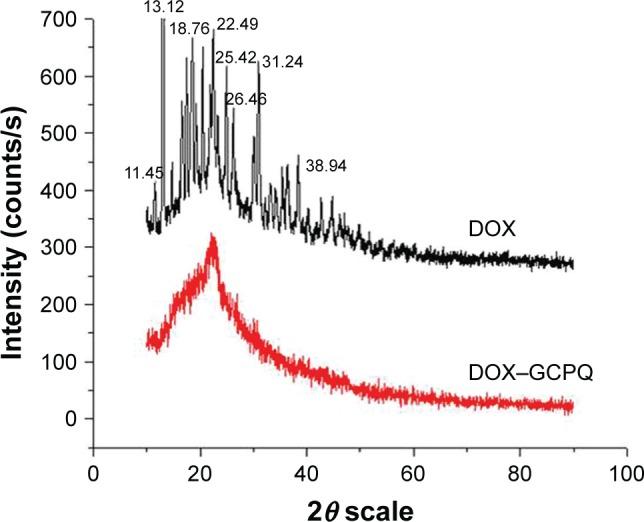

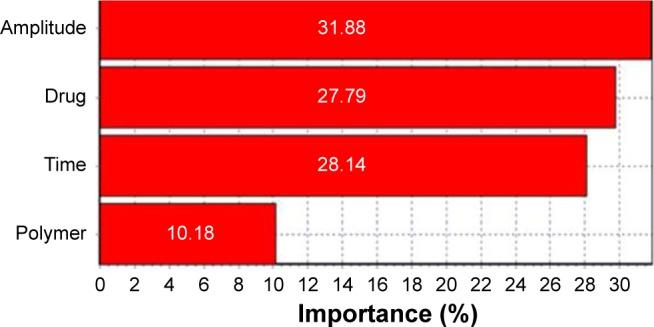

DOX-GCPQ amphiphilic polymeric nanoformulations were prepared and optimized using artificial neural network (ANN) and characterized for surface morphology by atomic force microscopy, particle size with polydispersity index (PDI), and zeta potential by dynamic light scattering. Fourier transformed infrared (FTIR) and X-ray diffractometer studies were performed to examine drug polymer interaction. The ANN-optimized nanoformulation was investigated for in vitro release, cellular, tumor, and tissue uptake.

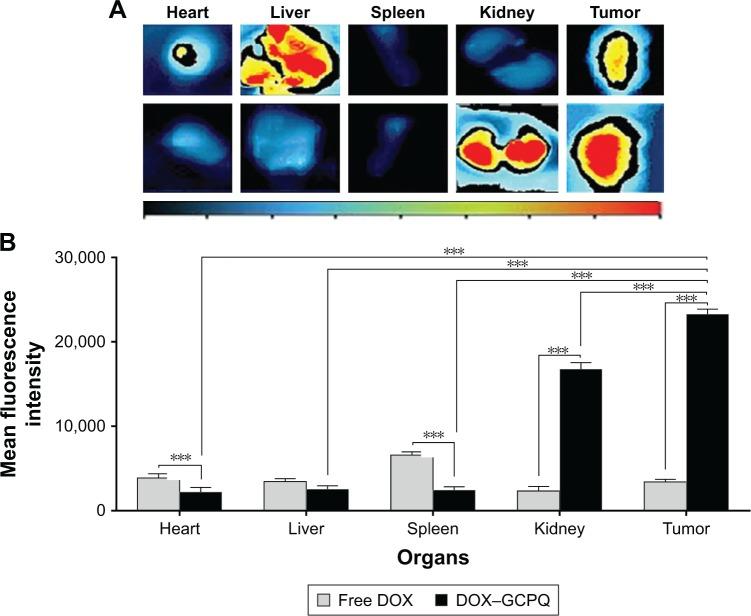

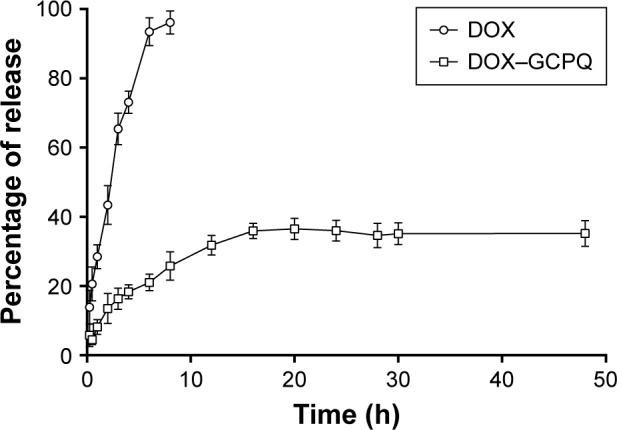

The optimized DOX-GCPQ nanoformulation was anionic spherical micelles with the hydrodynamic particle size of 97.8±1.5 nm, the PDI of <0.3, the zeta potential of 28±2 mV, and the encapsulation efficiency of 80%±1.5%. Nanoformulation demonstrated a sustained release pattern over 48 h, assuming Weibull model. Fluorescence microscopy revealed higher uptake of DOX-GCPQ in human rhabdomyosarcoma (RD) cells as compared to free DOX. In vitro cytotoxicity assay indicated a significant cytotoxicity of DOX-GCPQ against RD cells as compared to DOX and blank GCPQ (<0.05). DOX-GCPQ exhibited low IC (1.7±0.404 µmol) when compared to that of DOX (3.0±0.968 µmol). In skin tumor xenografts, optical imaging revealed significantly lower DOX-GCPQ in heart and liver (<0.05) and accumulated mainly in tumor (<0.05) as compared to other tissues.
The features of nanoformulation, ie, small particle size, sustained drug release, and enhanced cellular uptake, potential to target tumor passively coupled with the possibility of monitoring of tumor localization by optical imaging may make DOX-GCPQ an efficient nanotheranostic system.
本研究旨在开发载多柔比星的季铵化棕榈酰基乙二醇壳聚糖(DOX-GCPQ)纳米制剂,利用多柔比星的自荧光特性,实现 DOX 的递药,并在肿瘤部位无创监测药物积累和分布。
采用人工神经网络(ANN)对 DOX-GCPQ 两亲性聚合物纳米制剂进行制备和优化,并通过原子力显微镜对其表面形态、动态光散射法对其粒径和多分散指数(PDI)、以及 Zeta 电位进行表征。傅里叶变换红外(FTIR)和 X 射线衍射仪研究用于检查药物-聚合物相互作用。对 ANN 优化的纳米制剂进行体外释放、细胞摄取、肿瘤摄取和组织摄取研究。
优化的 DOX-GCPQ 纳米制剂为带负电荷的球形胶束,水动力粒径为 97.8±1.5nm,PDI<0.3,Zeta 电位为 28±2mV,包封率为 80%±1.5%。纳米制剂在 48 小时内呈现出持续释放模式,符合 Weibull 模型。荧光显微镜显示,与游离 DOX 相比,DOX-GCPQ 在人横纹肌肉瘤(RD)细胞中的摄取量更高。体外细胞毒性试验表明,与 DOX 和空白 GCPQ 相比,DOX-GCPQ 对 RD 细胞具有显著的细胞毒性(<0.05)。与 DOX(3.0±0.968µmol)相比,DOX-GCPQ 的 IC50 更低(1.7±0.404µmol)。在皮肤肿瘤异种移植模型中,光学成像显示,与其他组织相比,DOX-GCPQ 在心脏和肝脏中的含量明显较低(<0.05),主要积聚在肿瘤中(<0.05)。
纳米制剂的特点包括粒径小、药物持续释放和增强细胞摄取,具有被动靶向肿瘤的潜力,并且可以通过光学成像监测肿瘤定位,这使得 DOX-GCPQ 成为一种有效的纳米治疗系统。
