Improved DC Dielectric Performance of cPP-g-MAH/iPP/SEBS Composite with Chemical Graft Modification.

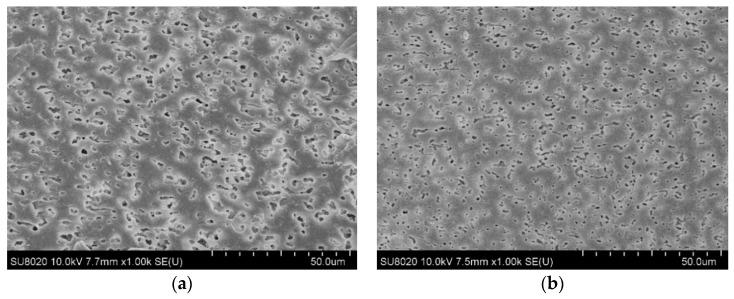

In order to achieve both high toughness and favorable dielectric properties of polypropylene materials, a styrene⁻butadiene⁻styrene block copolymer (SEBS) was employed as a toughening filler, in addition to a copolymerized polypropylene grafted by maleic anhydride (cPP--MAH) as a compatibilization modifier, to develop a novel isotactic polypropylene (iPP) composite (cPP--MAH/iPP/SEBS composite) with significantly improved direct-current (DC) dielectric performance and tenacity. The underlying physical and chemical mechanisms of modifying electric insulation were studied utilizing micro-structure characterization methods in combination with multiple thermal⁻mechanic⁻electric tests. The SEBS phase islands are uniformly distributed in the PP matrix with evidently improved dispersion due to cPP--MAH compatibilization. Compared with iPP, the elastic modulus of cPP--MAH/iPP/SEBS composites can be reduced by 58% with doubled thermal elongation, which is still superior to that of cross-linked polyethylene (XLPE), implying that the composites are qualified in terms of mechanical properties for use as power cables. The space charge accumulation and electric conduction are considerably suppressed in comparison with pure iPP and the iPP/SEBS composite. In the interest of charge-trapping characteristics modified by chemically grafting MAH, the deep traps introduced into polypropylene by grafting MAH were measured with a thermal stimulation current experiment to be 1.2 and 1.6 eV of energy level in trapping depth, verified through the first-principles electronic structure calculations with an all-electron numerical orbital scheme. It was concluded that the acquired high density of deep traps can effectively restrict the carrier transport and suppress the injection of space charge, resulting in a remarkable improvement of DC dielectric properties for the MAH grafted composites. The present work demonstrates that the cPP--MAH/iPP/SEBS composites are eligible to be applied to polypropylene-based high-voltage DC cables due to their excellent DC insulation performance, together with the appropriate mechanical properties.
