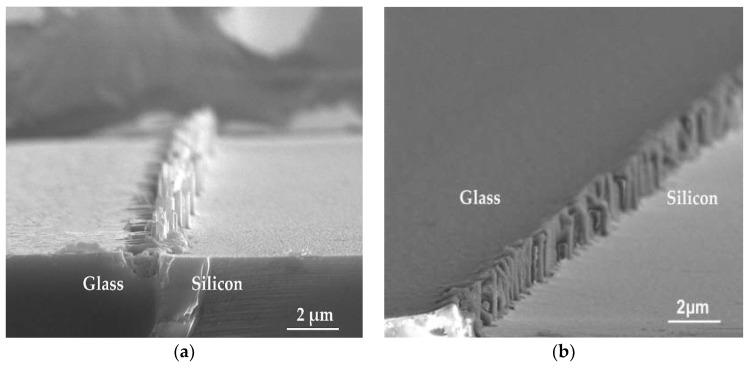

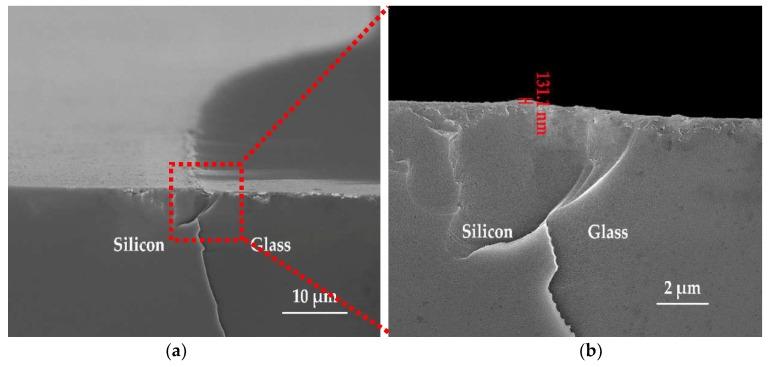

Taking advantage of good hermeticity, tiny parasitic capacitance, batch mode fabrication, and compatibility with multiple bonding techniques, the glass-silicon composite substrate manufactured by the glass reflow process has great potential to achieve 3D wafer-level packaging for high performance. However, the difference in etching characteristics between silicon and glass inevitably leads to the formation of the undesired micro-protrusions near the silicon-glass interface when preparing a shallow cavity etched around a few microns in the composite substrate. The micro-protrusions have a comparable height with the depth of the cavity, which increases the risks of damages to sensitive structures and may even trigger electrical breakdown, resulting in thorough device failure. In this paper, we studied the characteristics of the chemical composition and etching mechanisms at the interface carefully and proposed the corresponding optimized solutions that utilized plasma accumulation at the interface to accelerate etching and bridge the gap in etching rates between different chemical compositions. Finally, a smooth transition of 131.1 nm was achieved at the interface, obtaining an ideal etching cavity surface and experimentally demonstrating the feasibility of our proposal. The micromachining solution is beneficial for improving the yield and structural design flexibility of higher performance micro-electromechanical systems (MEMS) devices.
利用良好的密封性、微小的寄生电容、批量制造模式以及与多种键合技术的兼容性,通过玻璃回流工艺制造的玻璃 - 硅复合基板在实现高性能3D晶圆级封装方面具有巨大潜力。然而,在复合基板中围绕几微米蚀刻浅腔时,硅和玻璃蚀刻特性的差异不可避免地导致在硅 - 玻璃界面附近形成不需要的微突起。这些微突起的高度与腔的深度相当,这增加了损坏敏感结构的风险,甚至可能引发电击穿,导致器件彻底失效。在本文中,我们仔细研究了界面处的化学成分特性和蚀刻机制,并提出了相应的优化解决方案,即利用界面处的等离子体积累来加速蚀刻并弥合不同化学成分之间的蚀刻速率差距。最后,在界面处实现了131.1 nm的平滑过渡,获得了理想的蚀刻腔表面,并通过实验证明了我们方案的可行性。这种微加工解决方案有利于提高高性能微机电系统(MEMS)器件的良率和结构设计灵活性。
