配位聚合物 -聚[[[(乙腈-κ)铜(I)]-μ-1,3-二硫杂环戊烷-κ ::']六氟磷酸盐]的晶体结构

Crystal structure of the coordination polymer -poly[[[(acetonitrile-κ)copper(I)]-μ-1,3-dithiolane-κ ::'] hexafluoridophosphate].

作者信息

Knauer Lena, Knorr Michael, Viau Lydie, Strohmann Carsten

机构信息

Anorganische Chemie, Technische Universität Dortmund, Otto-Hahn-Strasse 6, D-44227 Dortmund, Germany.

Institut UTINAM UMR 6213 CNRS, Université Bourgogne Franche-Comté, 16 Route de Gray, 25030 Besançon Cedex, France.

出版信息

Acta Crystallogr E Crystallogr Commun. 2020 Jan 1;76(Pt 1):38-41. doi: 10.1107/S205698901901627X.

Abstract

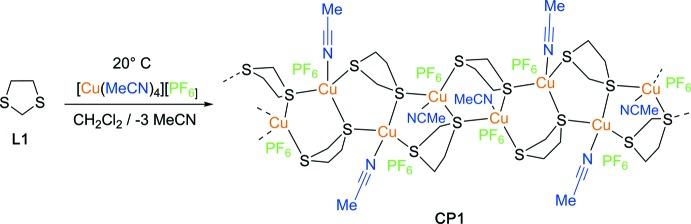

The polymeric title compound, Cu(CHN)(CHS), represents an example of a one-dimensional coordination polymer resulting from the reaction of [Cu(MeCN)][PF] with 1,3-di-thiol-ane. The cationic one-dimensional ribbon consists of two copper(I) centers each ligated by one aceto-nitrile mol-ecule and inter-connected through two bridging 1,3-di-thiol-ane ligands. One S-donor site of each ligand is κ-bound to Cu, whereas the second S atom acts as a four-electron donor, bridging two Cu atoms in a κ-bonding mode. The positive charge of each copper cation is compensated for by a hexa-fluorido-phosphate counter-ion. In the crystal, the polymer chains are linked by a series of C-H⋯F hydrogen bonds, forming a supra-molecular framework.

摘要

聚合标题化合物Cu(CHN)(CHS)是[Cu(MeCN)][PF]与1,3 - 二硫戊环反应生成的一维配位聚合物的一个实例。阳离子一维带状结构由两个铜(I)中心组成,每个中心由一个乙腈分子配位,并通过两个桥连的1,3 - 二硫戊环配体相互连接。每个配体的一个硫供体位点以κ配位方式与铜相连,而第二个硫原子作为四电子供体,以κ键合模式桥连两个铜原子。每个铜阳离子的正电荷由一个六氟磷酸根抗衡离子补偿。在晶体中,聚合物链通过一系列C - H⋯F氢键相连,形成一个超分子框架。

https://cdn.ncbi.nlm.nih.gov/pmc/blobs/4d49/6944091/6444aa029e2e/e-76-00038-fig1.jpg
