Vorländer Karl, Kampen Ingo, Finke Jan Henrik, Kwade Arno
Institute for Particle Technology, Technische Universität Braunschweig, Volkmaroder Straße 5, 38104 Braunschweig, Germany.
Center of Pharmaceutical Engineering (PVZ), Technische Universität Braunschweig, Franz-Liszt-Straße 35A, 38106 Braunschweig, Germany.
Pharmaceutics. 2020 Jan 15;12(1):66. doi: 10.3390/pharmaceutics12010066.

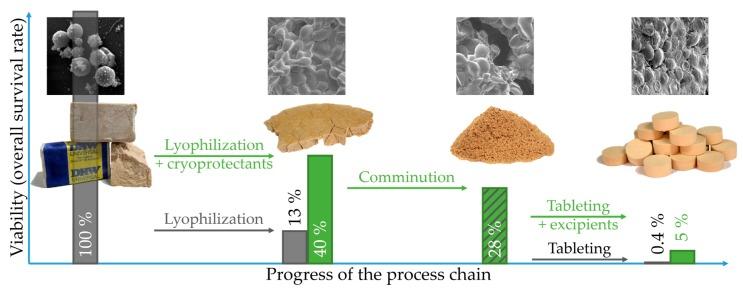

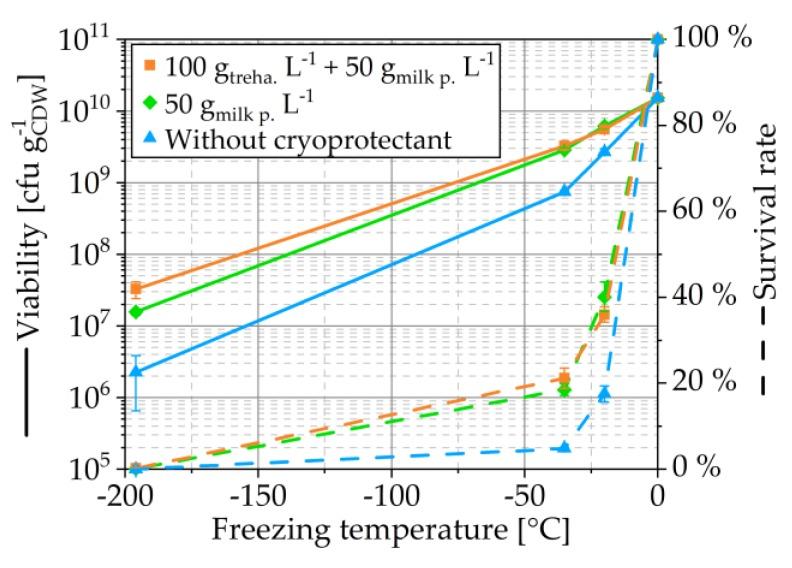

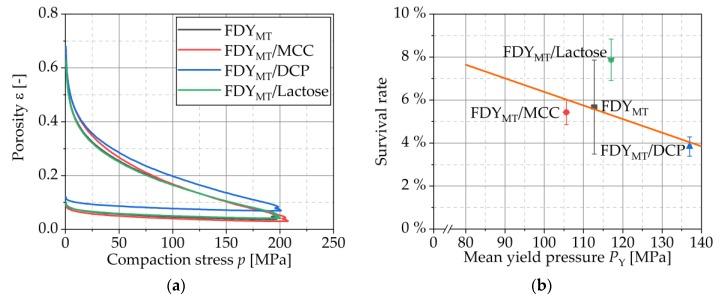

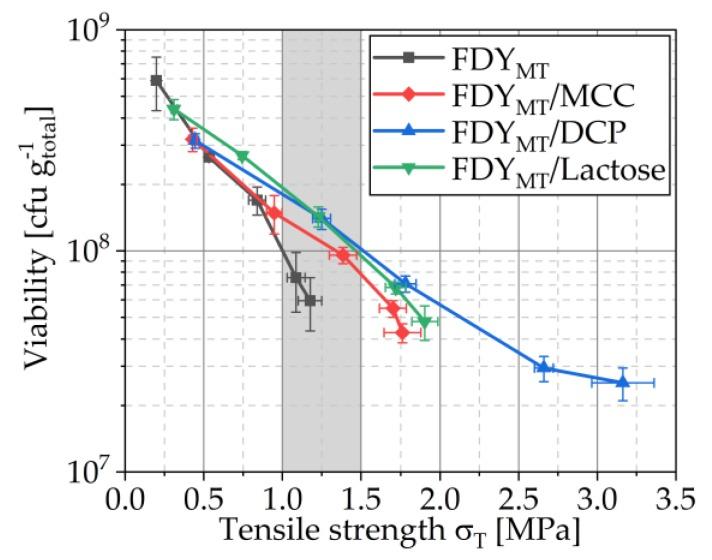

Today, probiotics are predominantly used in liquid or semi-solid functionalized foods, showing a rapid loss of cell viability. Due to the increasing spread of antibiotic resistance, probiotics are promising in pharmaceutical development because of their antimicrobial effects. This increases the formulation requirements, e.g., the need for an enhanced shelf life that is achieved by drying, mainly by lyophilization. For oral administration, the process chain for production of tablets containing microorganisms is of high interest and, thus, was investigated in this study. Lyophilization as an initial process step showed low cell survival of only 12.8%. However, the addition of cryoprotectants enabled survival rates up to 42.9%. Subsequently, the dried cells were gently milled. This powder was tableted directly or after mixing with excipients microcrystalline cellulose, dicalcium phosphate or lactose. Survival rates during tableting varied between 1.4% and 24.1%, depending on the formulation and the applied compaction stress. More detailed analysis of the tablet properties showed advantages of excipients in respect of cell survival and tablet mechanical strength. Maximum overall survival rate along the complete manufacturing process was >5%, enabling doses of 6 × 108 colony forming units per gram (CFU gtotal-1), including cryoprotectants and excipients.
如今,益生菌主要用于液态或半固态功能食品中,但细胞活力会迅速丧失。由于抗生素耐药性的日益扩散,益生菌因其抗菌作用在药物开发中具有广阔前景。这增加了制剂要求,例如需要通过干燥(主要是冻干)来延长保质期。对于口服给药,含微生物片剂的生产工艺链备受关注,因此本研究对其进行了调查。作为初始工艺步骤的冻干显示细胞存活率很低,仅为12.8%。然而,添加冷冻保护剂可使存活率高达42.9%。随后,对干燥后的细胞进行轻柔研磨。该粉末可直接压片,也可在与微晶纤维素、磷酸二钙或乳糖等辅料混合后压片。压片过程中的存活率在1.4%至24.1%之间,具体取决于制剂和所施加的压片压力。对片剂特性的更详细分析表明,辅料在细胞存活率和片剂机械强度方面具有优势。整个生产过程中的最大总存活率>5%,每克可实现6×108菌落形成单位(CFU gtotal-1)的剂量,包括冷冻保护剂和辅料。
