多次注射对叶酸靶向磁性纳米粒子作为肿瘤细胞 MRI 检测和磁热疗的治疗诊断试剂的疗效和细胞毒性的影响。
Effects of multiple injections on the efficacy and cytotoxicity of folate-targeted magnetite nanoparticles as theranostic agents for MRI detection and magnetic hyperthermia therapy of tumor cells.
机构信息
Department of Chemical Engineering, Faculty of Engineering, Arak University, Arak, 38156-88349, Iran.
Brain and Spinal Cord Injury research center, Neuroscience Institute, Tehran University of Medical Sciences, Tehran, Iran.
出版信息
Sci Rep. 2020 Feb 3;10(1):1695. doi: 10.1038/s41598-020-58605-3.
Folate-targeted iron oxide nanoparticles (FA@FeO NPs) were prepared by a one-pot hydrothermal method and then used as cancer theranostic agents by combining magnetic resonance imaging (MRI) and magnetic hyperthermia therapy (MHT). Crystal structure, morphology, magnetic properties, surface functional group, and heating efficacy of the synthesized nanoparticles were characterized by XRD, TEM, VSM, FTIR, and hyperthermia analyses. The results indicated that the crystal structure, magnetic properties, and heating efficacy of the magnetite nanoparticles were improved by hydrothermal treatment. Toxicity of the prepared NPs was assessed in vitro and in vivo on the mammary cells and BALB/c mice, respectively. The results of the in vitro toxicity analysis showed that the FA@FeO NPs are relatively safe even at high concentrations of the NPs up to 1000 µg mL. Also, the targetability of the FA@FeO NPs for the detection of folate over-expressed cancer cells was evaluated in an animal model of breast tumor using MRI analysis. It was observed that T-weighted magnetic resonance signal intensity was decreased with the three-time injection of the FA@FeO NPs with 24 h interval at a safe dose (50 mg kg), indicating the accumulation and retention of the NPs within the tumor tissues. Moreover, the therapeutic efficacy of the MHT using the FA@FeO NPs was evaluated in vivo in breast tumor-bearing mice. Hyperthermia treatment was carried out under a safe alternating magnetic field permissible for magnetic hyperthermia treatment (f = 150 kHz, H = 12.5 mT). The therapeutic effects of the MHT were evaluated by monitoring the tumor volume during the treatment period. The results showed that the mice in the control group experienced an almost 3.5-fold increase in the tumor volume during 15 days, while, the mice in the MHT group had a mild increase in the tumor volume (1.8-fold) within the same period (P < 0.05). These outcomes give promise that FA@FeO NPs can be used as theranostic agents for the MRI and MHT applications.

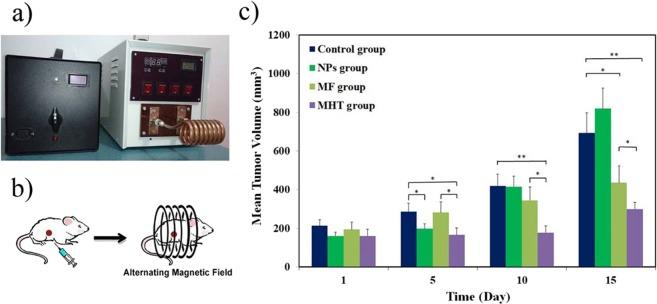

叶酸靶向氧化铁纳米粒子(FA@FeO NPs)通过一锅水热法制备,然后通过磁共振成像(MRI)和磁热疗(MHT)结合将其用作癌症治疗诊断剂。通过 XRD、TEM、VSM、FTIR 和热疗分析对合成纳米粒子的晶体结构、形态、磁性、表面官能团和加热效果进行了表征。结果表明,水热处理改善了磁铁矿纳米粒子的晶体结构、磁性和加热效果。分别在体外和体内对制备的 NPs 的毒性进行了评估,即在乳腺细胞和 BALB/c 小鼠上进行了评估。体外毒性分析结果表明,即使在高达 1000μg·mL 的 NPs 高浓度下,FA@FeO NPs 也相对安全。此外,还使用 MRI 分析在乳腺癌动物模型中评估了 FA@FeO NPs 对叶酸过表达癌细胞检测的靶向性。观察到,在安全剂量(50mg·kg)下,FA@FeO NPs 三次注射后,T1 加权磁共振信号强度降低,24 小时间隔一次,表明 NPs 在肿瘤组织内的积累和保留。此外,在荷乳腺癌小鼠体内对 FA@FeO NPs 的 MHT 治疗效果进行了评估。在可用于磁热疗的安全交变磁场下(f=150kHz,H=12.5mT)进行了热疗。通过监测治疗期间的肿瘤体积来评估 MHT 的治疗效果。结果表明,在 15 天内,对照组小鼠的肿瘤体积几乎增加了 3.5 倍,而在 MHT 组小鼠中,同一时期肿瘤体积仅轻度增加(1.8 倍)(P<0.05)。这些结果表明,FA@FeO NPs 可用作 MRI 和 MHT 应用的治疗诊断剂。
