Aihara Takatsugu, Shimokawa Takeaki, Ogawa Takeshi, Okada Yuto, Ishikawa Akihiro, Inoue Yoshihiro, Yamashita Okito
Graduate School of Human and Environmental Studies, Kyoto University, Kyoto, Japan.
Neural Information Analysis Laboratories, Advanced Telecommunications Research Institute International, Kyoto, Japan.
Front Neurosci. 2020 Jan 31;14:32. doi: 10.3389/fnins.2020.00032. eCollection 2020.

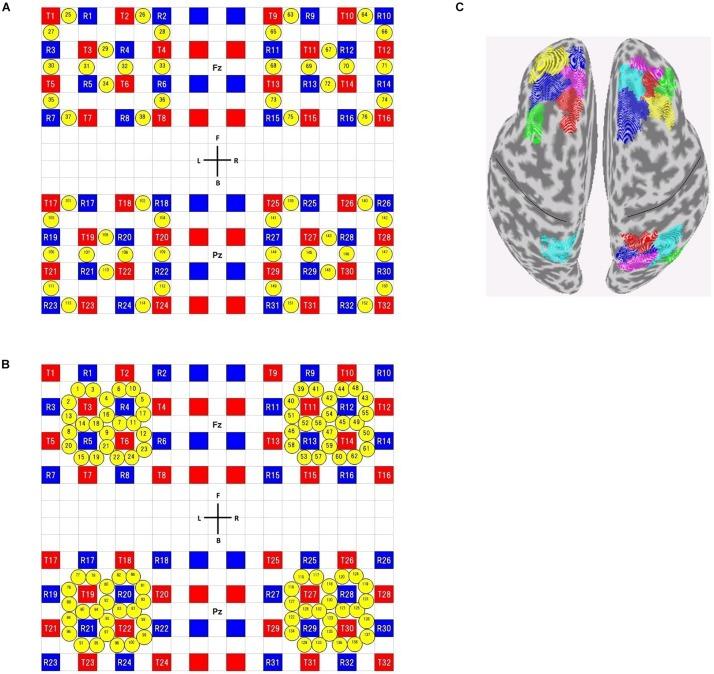

Resting-state functional connectivity (RSFC) has been generally assessed with functional magnetic resonance imaging (fMRI) thanks to its high spatial resolution. However, fMRI has several disadvantages such as high cost and low portability. In addition, fMRI may not be appropriate for people with metal or electronic implants in their bodies, with claustrophobia and who are pregnant. Diffuse optical tomography (DOT), a method of neuroimaging using functional near-infrared spectroscopy (fNIRS) to reconstruct three-dimensional brain activity images, offers a non-invasive alternative, because fNIRS as well as fMRI measures changes in deoxygenated hemoglobin concentrations and, in addition, fNIRS is free of above disadvantages. We recently proposed a hierarchical Bayesian (HB) DOT algorithm and verified its performance in terms of task-related brain responses. In this study, we attempted to evaluate the HB DOT in terms of estimating RSFC. In 20 healthy males (21-38 years old), 10 min of resting-state data was acquired with 3T MRI scanner or high-density NIRS on different days. The NIRS channels consisted of 96 long (29-mm) source-detector (SD) channels and 56 short (13-mm) SD channels, which covered bilateral frontal and parietal areas. There were one and two resting-state runs in the fMRI and fNIRS experiments, respectively. The reconstruction performances of our algorithm and the two currently prevailing algorithms for DOT were evaluated using fMRI signals as a reference. Compared with the currently prevailing algorithms, our HB algorithm showed better performances in both the similarity to fMRI data and inter-run reproducibility, in terms of estimating the RSFC.
静息态功能连接(RSFC)通常借助功能磁共振成像(fMRI)进行评估,这得益于其高空间分辨率。然而,fMRI存在诸多缺点,如成本高昂且便携性差。此外,fMRI可能不适用于体内有金属或电子植入物、患有幽闭恐惧症以及孕妇。扩散光学断层扫描(DOT)是一种利用功能近红外光谱(fNIRS)重建三维脑活动图像的神经成像方法,它提供了一种非侵入性的替代方案,因为fNIRS与fMRI一样可测量脱氧血红蛋白浓度的变化,而且fNIRS没有上述缺点。我们最近提出了一种分层贝叶斯(HB)DOT算法,并验证了其在任务相关脑反应方面的性能。在本研究中,我们试图从估计RSFC的角度评估HB DOT。在20名健康男性(21 - 38岁)中,在不同日期使用3T MRI扫描仪或高密度NIRS采集了10分钟的静息态数据。NIRS通道由96个长(29毫米)的源探测器(SD)通道和56个短(13毫米)的SD通道组成,覆盖双侧额叶和顶叶区域。fMRI和fNIRS实验分别有一次和两次静息态扫描。以fMRI信号为参考,评估了我们的算法以及两种当前流行的DOT算法的重建性能。与当前流行的算法相比,在估计RSFC方面,我们的HB算法在与fMRI数据的相似性和扫描间可重复性方面均表现出更好的性能。
