肺双源 CT 能谱成像结合光谱成形和高级迭代重建:最大限度降低辐射剂量的潜力。

Dual-source computed tomography of the lung with spectral shaping and advanced iterative reconstruction: potential for maximum radiation dose reduction.

机构信息

Department of Radiology, University Hospital Erlangen, Erlangen, Germany.

Imaging Science Institute, University Hospital Erlangen, Erlangen, Germany.

出版信息

Pediatr Radiol. 2020 Aug;50(9):1240-1248. doi: 10.1007/s00247-020-04714-0. Epub 2020 Jun 17.

Abstract

BACKGROUND

Radiation dose at CT should be as low as possible without compromising diagnostic quality.

OBJECTIVE

To assess the potential for maximum dose reduction of pediatric lung dual-source CT with spectral shaping and advanced iterative reconstruction (ADMIRE).

MATERIALS AND METHODS

We retrospectively analyzed dual-source CT acquisitions in a full-dose group (FD: 100 kV, 64 reference mAs) and in three groups with spectral shaping and differing reference mAs values (Sn: 100 kV, 96/64/32 reference mAs), each group consisting of 16 patients (age mean 11.5 years, standard deviation 4.8 years, median 12.8 years, range 1.3-18 years). Advanced iterative reconstruction of images was performed with different strengths (FD: ADMIRE Level 2; Sn: ADMIRE Levels 2, 3 and 4). We analyzed dose parameters and measured noise. Diagnostic confidence and detectability of lung lesions as well as anatomical structures were assessed using a Likert scale (from 1 [unacceptable] to 4 [fully acceptable]).

RESULTS

Compared to full dose, effective dose was reduced to 16.7% in the Sn 96 group, 11.1% in Sn64, and 5.5% in Sn32 (P<0.001). Noise values of Sn64 did not statistically differ from those in FD (45.7 vs. 38.9 Hounsfield units [HU]; P=0.132), whereas noise was significantly higher in Sn32 compared to Sn64 (61.5 HU; P<0.001). A Likert score >3 was reached in Sn64 regarding diagnostic confidence (3.2) and detectability of lung lesions (3.3). For detectability of most anatomical structures, no significant differences were found between FD and Sn64 (P≥0.05).

CONCLUSION

In pediatric lung dual-source CT, spectral shaping together with ADMIRE 4 enable radiation dose reduction to about 10% of a full-dose protocol while maintaining an acceptable diagnostic quality.

摘要

背景

在不影响诊断质量的情况下,CT 的辐射剂量应尽可能降低。

目的

评估使用光谱成形和高级迭代重建(ADMIRE)技术降低儿童肺部双源 CT 最大剂量的潜力。

材料与方法

我们回顾性分析了全剂量组(FD:100kV,64 参考 mAs)和三组光谱成形且参考 mAs 值不同的双源 CT 采集(Sn:100kV,96/64/32 参考 mAs),每组 16 例患者(年龄平均 11.5 岁,标准差 4.8 岁,中位数 12.8 岁,范围 1.3-18 岁)。使用不同强度的高级迭代重建图像(FD:ADMIRE Level 2;Sn:ADMIRE Levels 2、3 和 4)。我们分析了剂量参数并测量了噪声。使用李克特量表(1 表示不可接受,4 表示完全可接受)评估肺病变和解剖结构的诊断信心和可检测性。

结果

与全剂量相比,Sn96 组有效剂量降低至 16.7%,Sn64 组降低至 11.1%,Sn32 组降低至 5.5%(P<0.001)。Sn64 的噪声值与 FD 相比无统计学差异(45.7 与 38.9 亨氏单位[HU];P=0.132),而 Sn32 的噪声值明显高于 Sn64(61.5 HU;P<0.001)。Sn64 在诊断信心(3.2)和肺病变可检测性(3.3)方面达到了>3 的李克特评分。对于大多数解剖结构的可检测性,FD 与 Sn64 之间无显著差异(P≥0.05)。

结论

在儿童肺部双源 CT 中,光谱成形联合 ADMIRE 4 可使辐射剂量降低至全剂量方案的 10%左右,同时保持可接受的诊断质量。

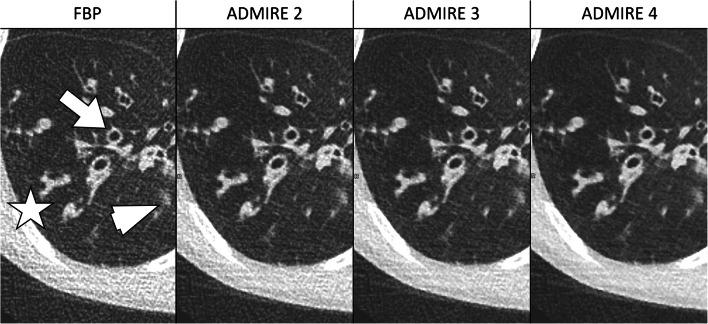

https://cdn.ncbi.nlm.nih.gov/pmc/blobs/513a/7398955/0e44e95dd7fe/247_2020_4714_Fig1_HTML.jpg
