Gandolfi Marco, Banfi Francesco, Glorieux Christ
CNR-INO, Via Branze 45, 25123 Brescia, Italy.
Department of Information Engineering, University of Brescia, Via Branze 38, 25123 Brescia, Italy.
Photoacoustics. 2020 Aug 12;20:100199. doi: 10.1016/j.pacs.2020.100199. eCollection 2020 Dec.

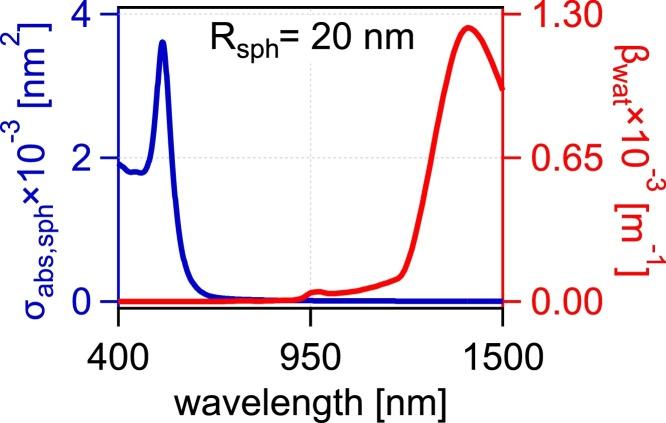

We investigate the optical wavelength dependence of the photoacoustic (PA) signal, detected with bandwidth (BW) in the MHz range, of gold nanospheres (NSs) immersed in water upon illumination with ns laser pulses. We compare the wavelength dependence of the PA signal (within the MHz BW) with the one of the optical absorption coefficient as determined from optical transmission measurements. Thermal boundary conductance (TBC) at the gold-water interface is taken into account, as well as the temperature dependence of the thermal expansion coefficient of water. The effects of NS size and laser pulse duration on the PA signal are also explored. The PA signal is investigated with an opto-thermo-acoustic model considering light absorption in gold NS and in a surrounding water shell.
我们研究了用兆赫兹范围内带宽(BW)检测的光声(PA)信号的光波长依赖性,该信号是由纳秒激光脉冲照射下浸没在水中的金纳米球(NSs)产生的。我们将PA信号(在兆赫兹带宽内)的波长依赖性与通过光透射测量确定的光吸收系数的波长依赖性进行了比较。考虑了金 - 水界面处的热边界电导(TBC)以及水的热膨胀系数的温度依赖性。还探讨了纳米球尺寸和激光脉冲持续时间对PA信号的影响。使用考虑金纳米球和周围水壳中光吸收的光热声模型对PA信号进行了研究。
