多模态成像显示急性黄斑神经视网膜病变患者深层毛细血管丛和脉络膜毛细血管层的并发血管血流缺损:病例系列

Concurrent vascular flow defects at the deep capillary plexus and choriocapillaris layers in acute macular neuroretinopathy on multimodal imaging: A case series.

作者信息

Hwang Christopher K, Sen H Nida

机构信息

Laboratory of Immunology, National Eye Institute, National Institutes of Health, Bethesda, MD, 20814, USA.

出版信息

Am J Ophthalmol Case Rep. 2020 Aug 12;20:100866. doi: 10.1016/j.ajoc.2020.100866. eCollection 2020 Dec.

DOI:10.1016/j.ajoc.2020.100866
PMID:32875152
原文链接:https://pmc.ncbi.nlm.nih.gov/articles/PMC7452008/
Abstract

PURPOSE

To describe multimodal imaging findings with focus on retinal and choroidal vascular features in acute macular neuroretinopathy (AMN).

OBSERVATIONS

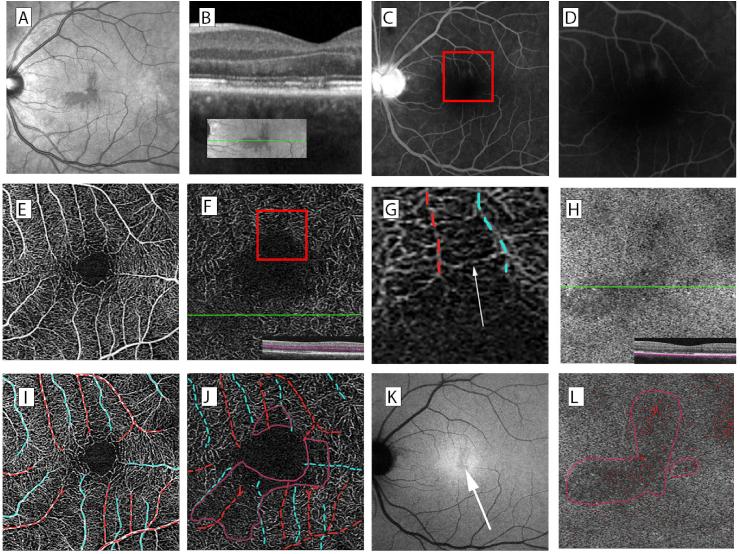

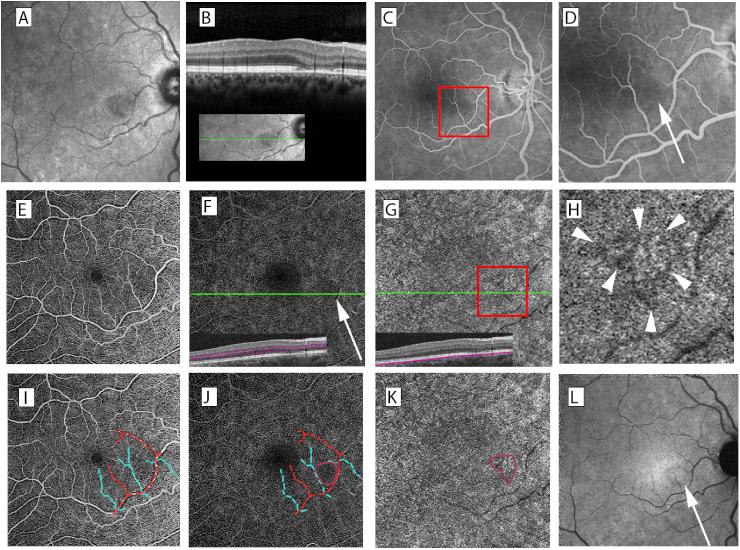

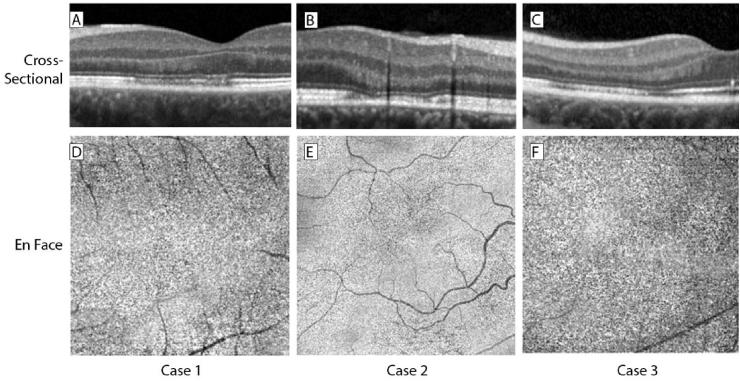

Three eyes from 3 patients (1 man, 2 women) with average age of 31 were included in this retrospective case series at a single institution. Each case showed petaloid hyporeflective areas on infrared images (IR) with variable levels of outer retinal defects on spectral domain optical coherence tomography (OCT). OCT angiography (OCT-A) images showed quantifiable reduction in vessel density at levels of the deep capillary plexus (DCP) and choriocapillaris (CC) layers. In 2 of the cases with near-infrared autofluorescence imaging (NIRAF), there were subtle areas of hypoautofluorescence corresponding in location to the lesions seen on IR. In one case, fluorescein angiography (FA) showed a small area of retinal vascular leakage in the area of the IR lesion, and in other 2 cases, there were paracentral areas of hypofluorescence in the area of the IR lesions. structural OCT image at the retinal pigment epithelium (RPE) level in each case showed no evidence of projection artifact from the retina.

CONCLUSIONS AND IMPORTANCE

The pathogenesis of AMN is suspected to involve a vasogenic insult. However, the precise localization of the vascular insult has been controversial and unclear. Our findings demonstrate that concurrent vascular flow defects in both DCP and CC could be possible in AMN and suggest that an inflammatory and vascular etiology in concert could underlie the pathogenesis of AMN.

摘要

目的

描述急性黄斑神经视网膜病变(AMN)的多模态成像结果,重点关注视网膜和脉络膜血管特征。

观察结果

本回顾性病例系列纳入了来自同一机构的3例患者(1例男性,2例女性)的3只眼睛,平均年龄为31岁。每个病例在红外图像(IR)上均显示花瓣状低反射区,在光谱域光学相干断层扫描(OCT)上有不同程度的视网膜外层缺损。OCT血管造影(OCT-A)图像显示,深层毛细血管丛(DCP)和脉络膜毛细血管(CC)层的血管密度有可量化的降低。在2例近红外自发荧光成像(NIRAF)病例中,低自发荧光的细微区域在位置上与IR上所见病变相对应。1例病例中,荧光素血管造影(FA)显示IR病变区域有一小片视网膜血管渗漏,另外2例病例中,IR病变区域有旁中心低荧光区。每个病例视网膜色素上皮(RPE)水平的结构OCT图像均未显示来自视网膜的投影伪影迹象。

结论与意义

AMN的发病机制怀疑涉及血管源性损伤。然而,血管损伤的确切定位一直存在争议且不明确。我们的研究结果表明,AMN中DCP和CC可能同时存在血管血流缺陷,并提示炎症和血管病因共同作用可能是AMN发病机制的基础。

https://cdn.ncbi.nlm.nih.gov/pmc/blobs/4110/7452008/0ef2c4a4ead4/gr4.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/4110/7452008/86d158ea1450/gr1.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/4110/7452008/63fe28a8f2d3/gr2.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/4110/7452008/c2ae51cbf0b2/gr3.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/4110/7452008/0ef2c4a4ead4/gr4.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/4110/7452008/86d158ea1450/gr1.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/4110/7452008/63fe28a8f2d3/gr2.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/4110/7452008/c2ae51cbf0b2/gr3.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/4110/7452008/0ef2c4a4ead4/gr4.jpg
