用于时间分辨扫描透射X射线显微镜成像的到达时间检测

Time-of-arrival detection for time-resolved scanning transmission X-ray microscopy imaging.

作者信息

Finizio Simone, Mayr Sina, Raabe Jörg

机构信息

Paul Scherrer Institut, Forschungsstrasse 111, 5232 Villigen PSI, Switzerland.

出版信息

J Synchrotron Radiat. 2020 Sep 1;27(Pt 5):1320-1325. doi: 10.1107/S1600577520007262. Epub 2020 Jul 14.

DOI:10.1107/S1600577520007262
PMID:32876607
原文链接:https://pmc.ncbi.nlm.nih.gov/articles/PMC7467344/
Abstract

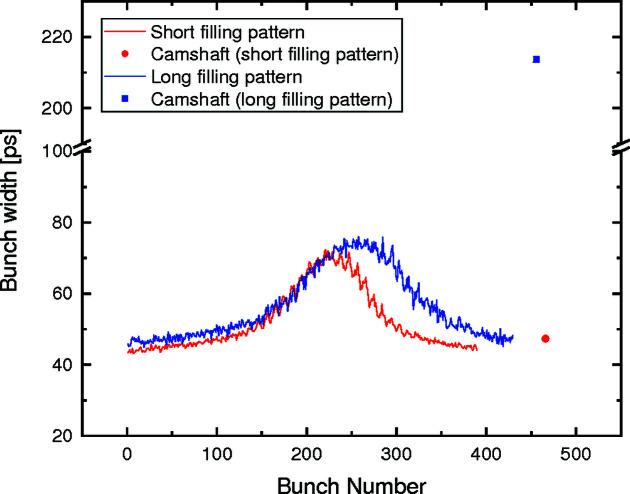

A setup for time-resolved scanning transmission X-ray microscopy imaging is presented, which allows for an increase in the temporal resolution without the requirement of operating the synchrotron light source with low-α optics through the measurement of the time-of-arrival of the X-ray photons. Measurements of two filling patterns in hybrid mode of the Swiss Light Source are presented as a first proof-of-principle and benchmark for the performances of this new setup. From these measurements, a temporal resolution on the order of 20-30 ps could be determined.

摘要

本文介绍了一种用于时间分辨扫描透射X射线显微镜成像的装置，该装置通过测量X射线光子的到达时间，无需使用低α光学器件运行同步加速器光源，就能提高时间分辨率。作为这种新装置性能的首个原理验证和基准，展示了瑞士光源混合模式下两种填充模式的测量结果。通过这些测量，可以确定时间分辨率约为20 - 30皮秒。

https://cdn.ncbi.nlm.nih.gov/pmc/blobs/5883/7467344/6cbaf1ed16a8/s-27-01320-fig6.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/5883/7467344/f241e94de4c9/s-27-01320-fig1.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/5883/7467344/354c20c6de96/s-27-01320-fig2.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/5883/7467344/30cee5963002/s-27-01320-fig3.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/5883/7467344/18dfb61417e0/s-27-01320-fig4.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/5883/7467344/8a785322001c/s-27-01320-fig5.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/5883/7467344/6cbaf1ed16a8/s-27-01320-fig6.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/5883/7467344/f241e94de4c9/s-27-01320-fig1.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/5883/7467344/354c20c6de96/s-27-01320-fig2.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/5883/7467344/30cee5963002/s-27-01320-fig3.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/5883/7467344/18dfb61417e0/s-27-01320-fig4.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/5883/7467344/8a785322001c/s-27-01320-fig5.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/5883/7467344/6cbaf1ed16a8/s-27-01320-fig6.jpg
