School of Basic Pharmaceutical and Toxicological Sciences, College of Pharmacy, University of Louisiana Monroe, Monroe, LA, USA.
Department of Chemistry and Biochemistry, Rowan University, Glassboro, NJ, USA.
Int J Nanomedicine. 2020 Sep 11;15:6689-6703. doi: 10.2147/IJN.S259724. eCollection 2020.
Nucleic acid-based therapies are a promising therapeutic tool. The major obstacle in their clinical translation is their efficient delivery to the desired tissue. We developed a novel nanosized delivery system composed of conjugates of α-tocopherol, polyethyleneimine, and polyethylene glycol (TPP) to deliver nucleic acids.

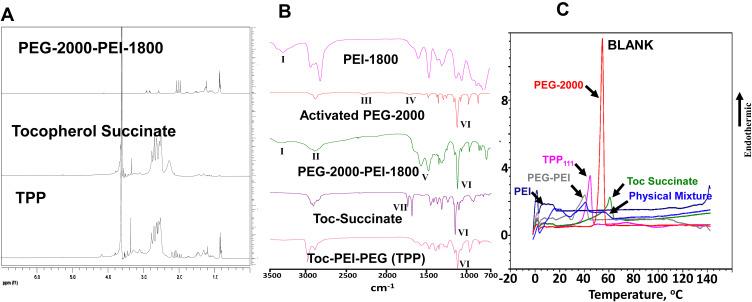

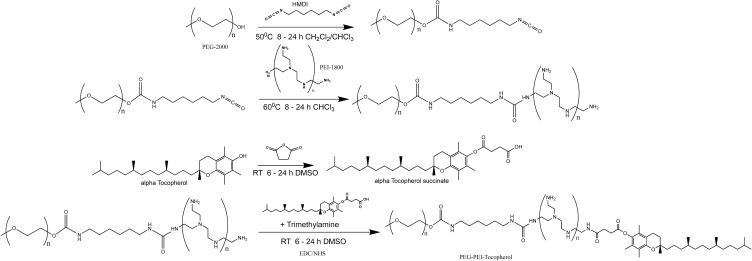

We synthesized a panel of TPP molecules using different molecular weights of PEG and PEI and analyzed with various analytical approaches. The optimized version of TPP (TPP - the 1:1:1 molecular ratio) was self-assembled in water to produce nanostructures and then evaluated in diversified in vitro and in vivo studies.

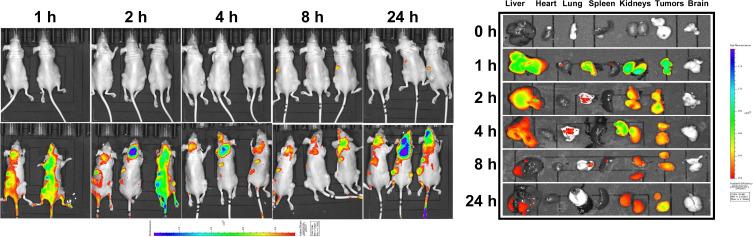

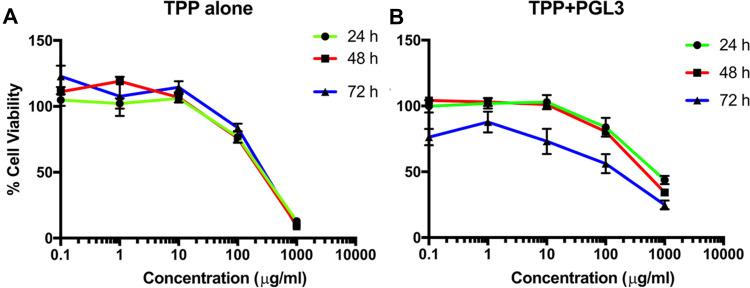

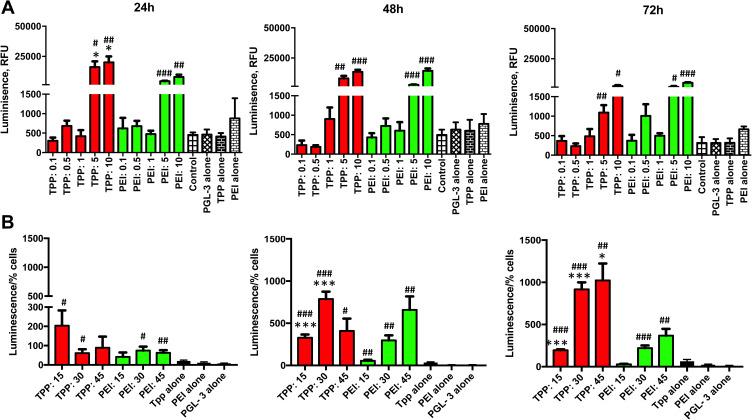

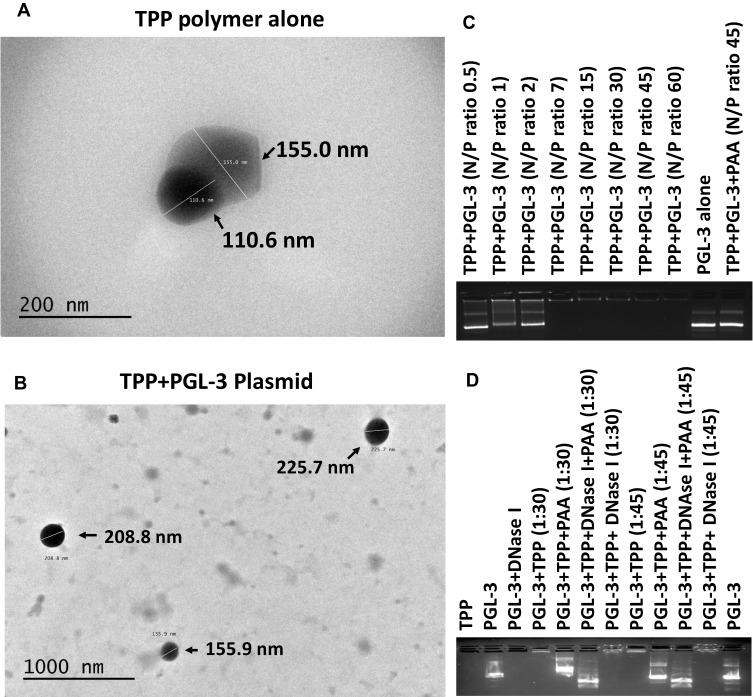

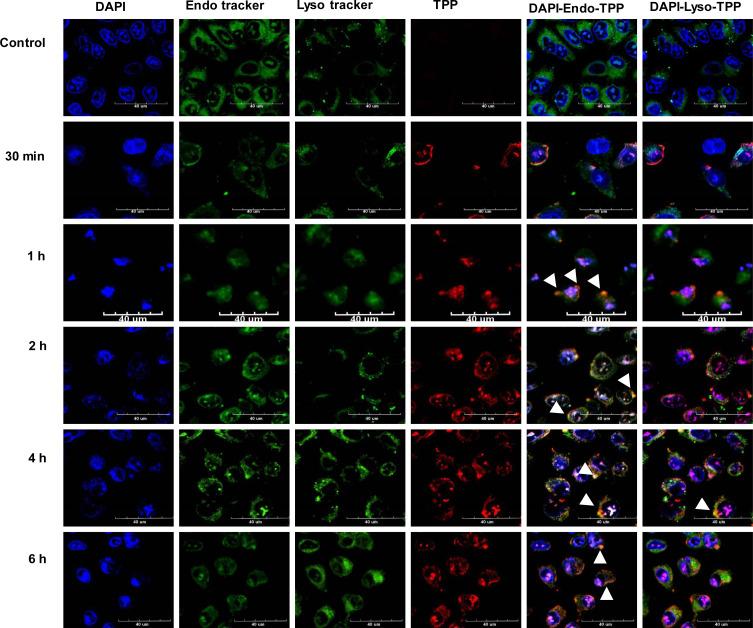

Through a panel of synthesized molecules, TPP conjugate components self-assembled in water, forming globular shaped nanostructures of ~90 nm, with high nucleic acid entrapment efficiency. The polymer had low cytotoxicity in vitro and protected nucleic acids from nucleases. Using a luciferase-expressing plasmid, TPP-plasmid nano-complexes were rapidly up-taken by cancer cells in vitro and induced strong transfection, comparable to PEI. Colocalization of the nano-complexes and endosomes/lysosomes suggested an endosome-mediated uptake. Using a subcutaneous tumor model, intravenously injected nano-complexes preferentially accumulated to the tumor area over 24 h.
These results indicate that we successfully synthesized the TPP nanocarrier system, which can deliver nucleic acids in vitro and in vivo and merits further evaluation.
核酸类治疗是一种很有前途的治疗手段。其临床转化的主要障碍是有效地将其递送到靶组织。我们开发了一种新型的纳米级递药系统,由 α-生育酚、聚乙烯亚胺和聚乙二醇(TPP)的缀合物组成,用于递送核酸。
我们使用不同分子量的 PEG 和 PEI 合成了一系列 TPP 分子,并通过各种分析方法进行了分析。优化的 TPP 版本(TPP-1:1:1 分子比)在水中自组装形成纳米结构,然后在多样化的体外和体内研究中进行了评估。
通过一系列合成的分子,TPP 缀合物成分在水中自组装,形成~90nm 的球形纳米结构,具有高核酸包封效率。该聚合物在体外具有低细胞毒性,并能保护核酸免受核酸酶的侵害。使用表达荧光素酶的质粒,TPP-质粒纳米复合物在体外能被癌细胞迅速摄取,并诱导强烈的转染,与 PEI 相当。纳米复合物与内体/溶酶体的共定位表明存在内体介导的摄取。在皮下肿瘤模型中,静脉注射的纳米复合物在 24 小时内优先聚集到肿瘤区域。
这些结果表明,我们成功合成了 TPP 纳米载体系统,该系统可以在体外和体内递送核酸,并值得进一步评估。
