Suleiman Ehsan, Mayer Julia, Lehner Elisabeth, Kohlhauser Bianca, Katholnig Alexandra, Batzoni Mirjam, Damm Dominik, Temchura Vladimir, Wagner Andreas, Überla Klaus, Vorauer-Uhl Karola
Polymun Scientific Immunbiologische Forschung GmbH, 3400 Klosterneuburg, Austria.
Department of Biotechnology, University of Natural Resources and Life Sciences, 1190 Vienna, Austria.
Pharmaceutics. 2020 Oct 16;12(10):979. doi: 10.3390/pharmaceutics12100979.

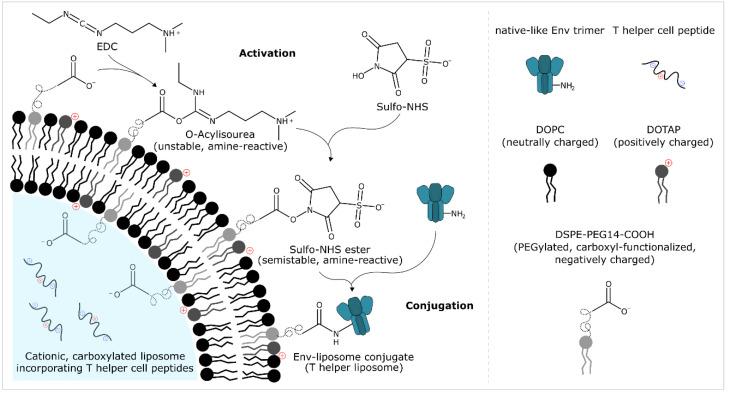

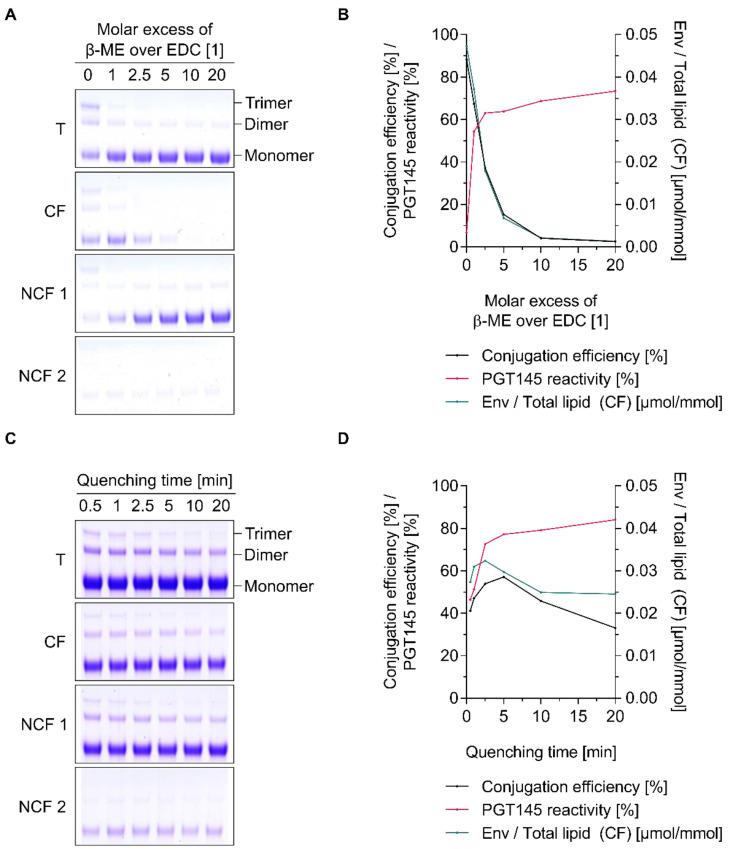

The display of native-like human immunodeficiency virus type 1 envelope (HIV-1 Env) trimers on liposomes has gained wide attention over the last few years. Currently, available methods have enabled the preparation of Env-liposome conjugates of unprecedented quality. However, these protocols require the Env trimer to be tagged and/or to carry a specific functional group. For this reason, we have investigated -(3-Dimethylaminopropyl)-'-ethylcarbodiimide/-Hydroxysulfosuccinimide (EDC/Sulfo-NHS) chemistry for its potential to covalently conjugate tag-free, non-functionalized native-like Env trimers onto the surface of carboxyl-functionalized liposomes. The preservation of the liposome's physical integrity and the immunogen's conformation required a fine-tuned two-step approach based on the controlled use of β-mercaptoethanol. The display of Env trimers was strictly limited to activated liposomes of positive charge, i.e., liposomes with a positive zeta potential that carry amine-reactive Sulfo-NHS esters on their surface. In agreement with that, conjugation was found to be highly ionic strength- and pH-dependent. Overall, we have identified electrostatic pre-concentration (i.e., close proximity between negatively charged Env trimers and positively charged liposomes established through electrostatic attraction) to be crucial for conjugation reactions to proceed. The present study highlights the requirements and limitations of potentially scalable EDC/Sulfo-NHS-based approaches and represents a solid basis for further research into the controlled conjugation of tag-free, non-functionalized native-like Env trimers on the surface of liposomes, and other nanoparticles.
在过去几年中,在脂质体上展示天然样人类免疫缺陷病毒1型包膜(HIV-1 Env)三聚体受到了广泛关注。目前,可用的方法已能够制备出质量前所未有的Env-脂质体偶联物。然而,这些方案要求Env三聚体带有标签和/或携带特定的官能团。因此,我们研究了-(3-二甲基氨基丙基)-'-乙基碳二亚胺/ -羟基磺基琥珀酰亚胺(EDC/磺基-NHS)化学方法,以探讨其将无标签、未功能化的天然样Env三聚体共价偶联到羧基功能化脂质体表面的潜力。为了保持脂质体的物理完整性和免疫原的构象,需要基于对β-巯基乙醇的控制使用,采用微调的两步法。Env三聚体的展示严格限于带正电荷的活化脂质体,即表面带有胺反应性磺基-NHS酯且ζ电位为正的脂质体。与此一致,发现偶联高度依赖离子强度和pH值。总体而言,我们发现静电预浓缩(即通过静电吸引在带负电荷的Env三聚体和带正电荷的脂质体之间建立紧密接近)对于偶联反应的进行至关重要。本研究突出了基于EDC/磺基-NHS的潜在可扩展方法的要求和局限性,并为进一步研究无标签、未功能化的天然样Env三聚体在脂质体和其他纳米颗粒表面的可控偶联奠定了坚实基础。
