Graduate Department of Chemical Materials, Pusan National University, Busan 46241, Korea.
Department of Cogno-Mechatronics Engineering, Department of Optics and Mechatronics Engineering, College of Nanoscience and Nanotechnology, Pusan National University, Busan 46241, Korea.
Sensors (Basel). 2020 Oct 26;20(21):6083. doi: 10.3390/s20216083.

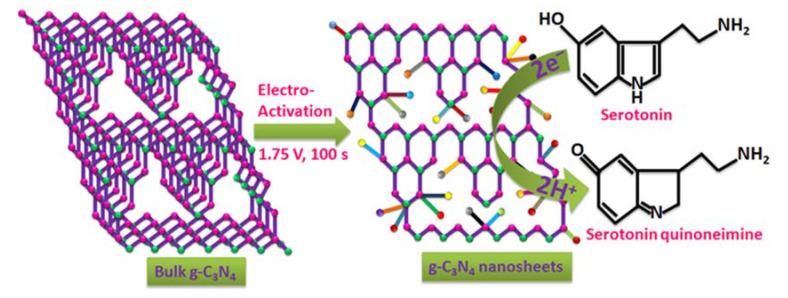

A simple one-step electrochemical deposition/activation of graphitic carbon nitride (g-CN) is highly desired for sensor configurations and remains a great challenge. Herein, we attempt an electrochemical route to exfoliate the g-CN nanosheets in an aqueous solution of pH 7.0 for constructing a sensor, which is highly sensitive for the detection of serotonin (5-HT). The significance of our design is to exfoliate the g-CN nanosheets, a strong electrocatalyst for 5-HT detection. Investigations regarding the effect of neutral pH (pH 7.0) on the bulk g-CN and g-CN nanosheets, physical characterization, and electrochemical studies were extensively carried out. We demonstrate that the g-CN nanosheets have a significant electrocatalytic effect for the 5-HT detection in a dynamic linear range from 500 pM to 1000 nM ( = 0.999). The limit of detection and sensitivity of the designed 5-HT sensor was calculated to be 150 pM and 1.03 µA µM cm, respectively. The proposed sensor has great advantages such as high sensitivity, good selectivity, reproducibility, and stability. The constructed g-CN nanosheets-based sensor platform opens new feasibilities for the determination of 5-HT even at the picomolar/nanomolar concentration range.
电化学沉积/活化石墨相氮化碳(g-CN)的一步法是传感器配置中非常需要的,但仍然是一个巨大的挑战。本文尝试了一种电化学途径,在 pH 值为 7.0 的水溶液中剥离 g-CN 纳米片,用于构建一个对血清素(5-HT)检测具有高灵敏度的传感器。我们设计的意义在于剥离 g-CN 纳米片,它是 5-HT 检测的强电催化剂。我们广泛研究了中性 pH 值(pH 值 7.0)对块状 g-CN 和 g-CN 纳米片的影响、物理特性和电化学研究。我们证明 g-CN 纳米片对 5-HT 的检测具有显著的电催化作用,动态线性范围为 500 pM 至 1000 nM( = 0.999)。设计的 5-HT 传感器的检测限和灵敏度分别计算为 150 pM 和 1.03 µA µM cm。该传感器具有高灵敏度、良好的选择性、重现性和稳定性等优点。基于构建的 g-CN 纳米片的传感器平台为 5-HT 的测定开辟了新的可能性,即使在皮摩尔/纳摩尔浓度范围内也是如此。
