Protein Binding and Orientation Matter: Bias-Induced Conductance Switching in a Mutated Azurin Junction.

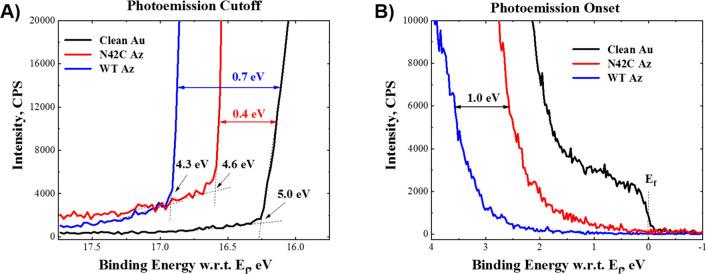

We observe reversible, bias-induced switching of conductance via a blue copper protein azurin mutant, , with a nearly 10-fold increase at || > 0.8 V than at lower bias. No such switching is found for wild-type azurin, , up to |1.2 V|, beyond which irreversible changes occur. The mutant will, when positioned between electrodes in a solid-state Au-protein-Au junction, have an orientation opposite that of with respect to the electrodes. Current(s) via both proteins are temperature-independent, consistent with quantum mechanical tunneling as dominant transport mechanism. No noticeable difference is resolved between the two proteins in conductance and inelastic electron tunneling spectra at <|0.5 V| bias voltages. Switching behavior persists from 15 K up to room temperature. The conductance peak is consistent with the system switching in and out of resonance with the changing bias. With further input from UV photoemission measurements on Au-protein systems, these striking differences in conductance are rationalized by having the location of the Cu(II) coordination sphere in the mutant, proximal to the (larger) substrate-electrode, to which the protein is chemically bound, while for the that coordination sphere is closest to the other Au electrode, with which only physical contact is made. Our results establish the key roles that a protein's orientation and binding nature to the electrodes play in determining the electron transport tunnel barrier.
