用弥散磁共振成像估计轴突大小。

A simple estimate of axon size with diffusion MRI.

机构信息

Biomedical Engineering, Vanderbilt University, United States; Institute of Imaging Science, Vanderbilt University, United States.

Biomedical Engineering, University of Alberta, Canada.

出版信息

Neuroimage. 2021 Feb 15;227:117619. doi: 10.1016/j.neuroimage.2020.117619. Epub 2020 Dec 8.


DOI:10.1016/j.neuroimage.2020.117619
PMID:33301942
原文链接:https://pmc.ncbi.nlm.nih.gov/articles/PMC7949481/
Abstract

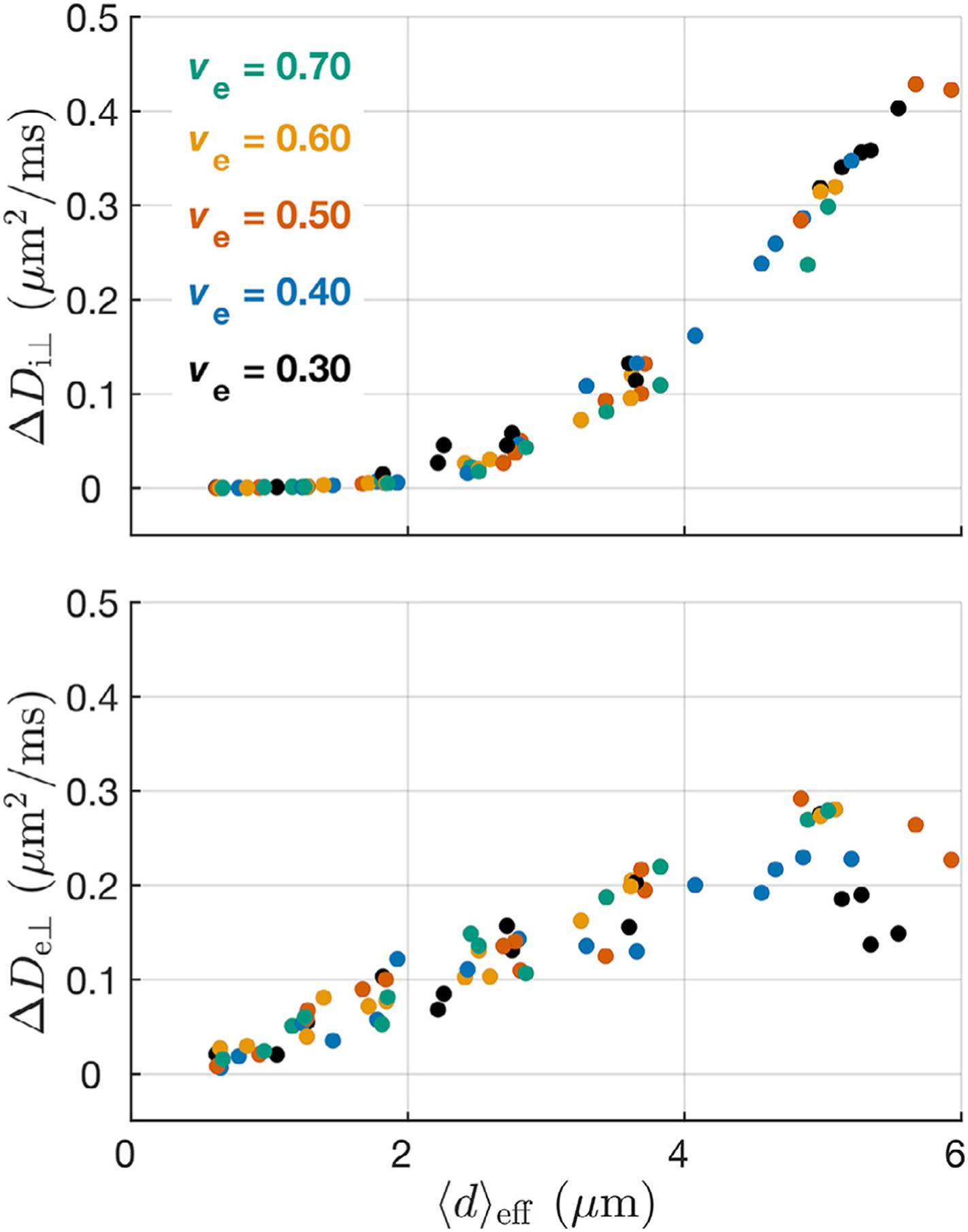

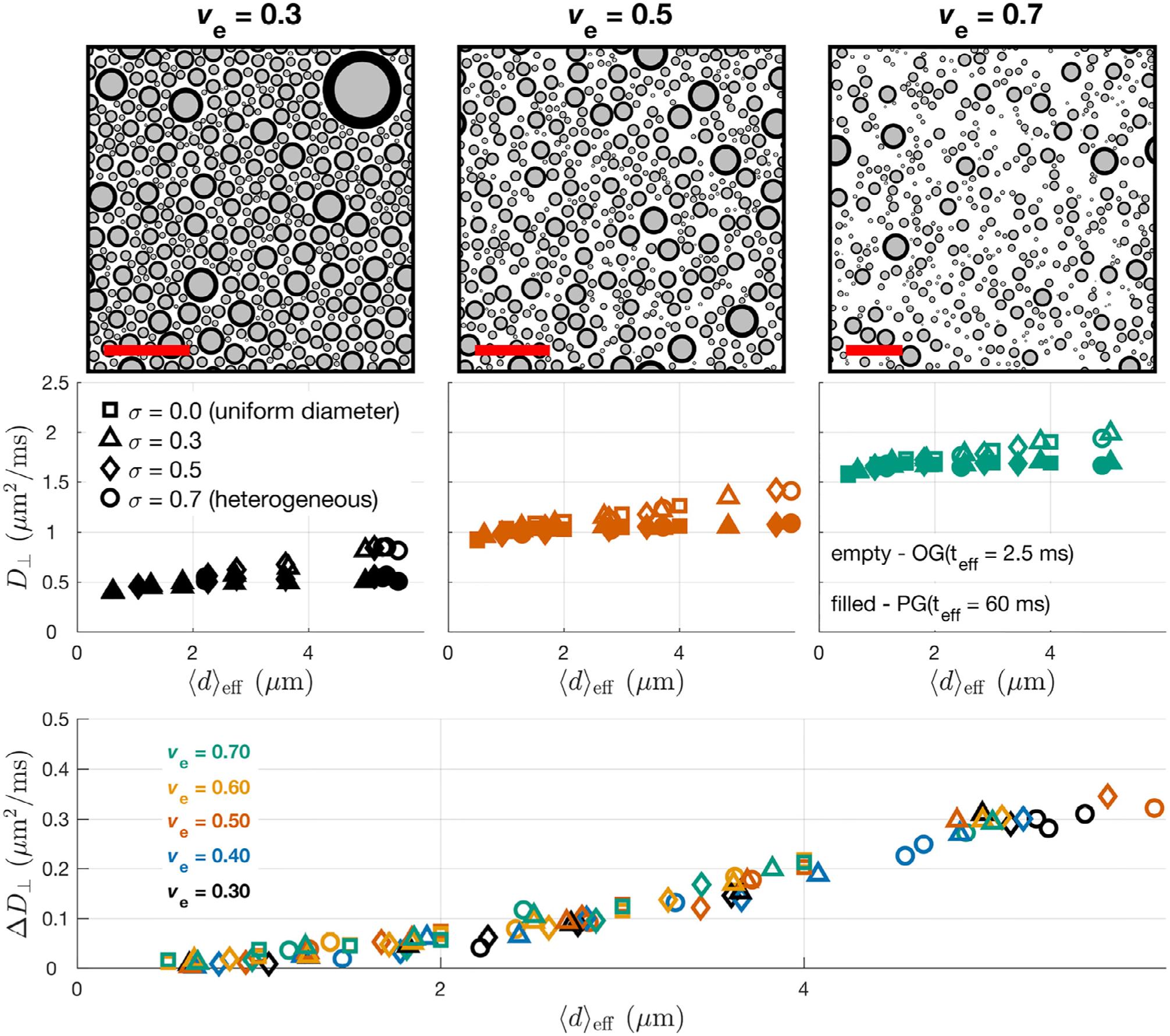

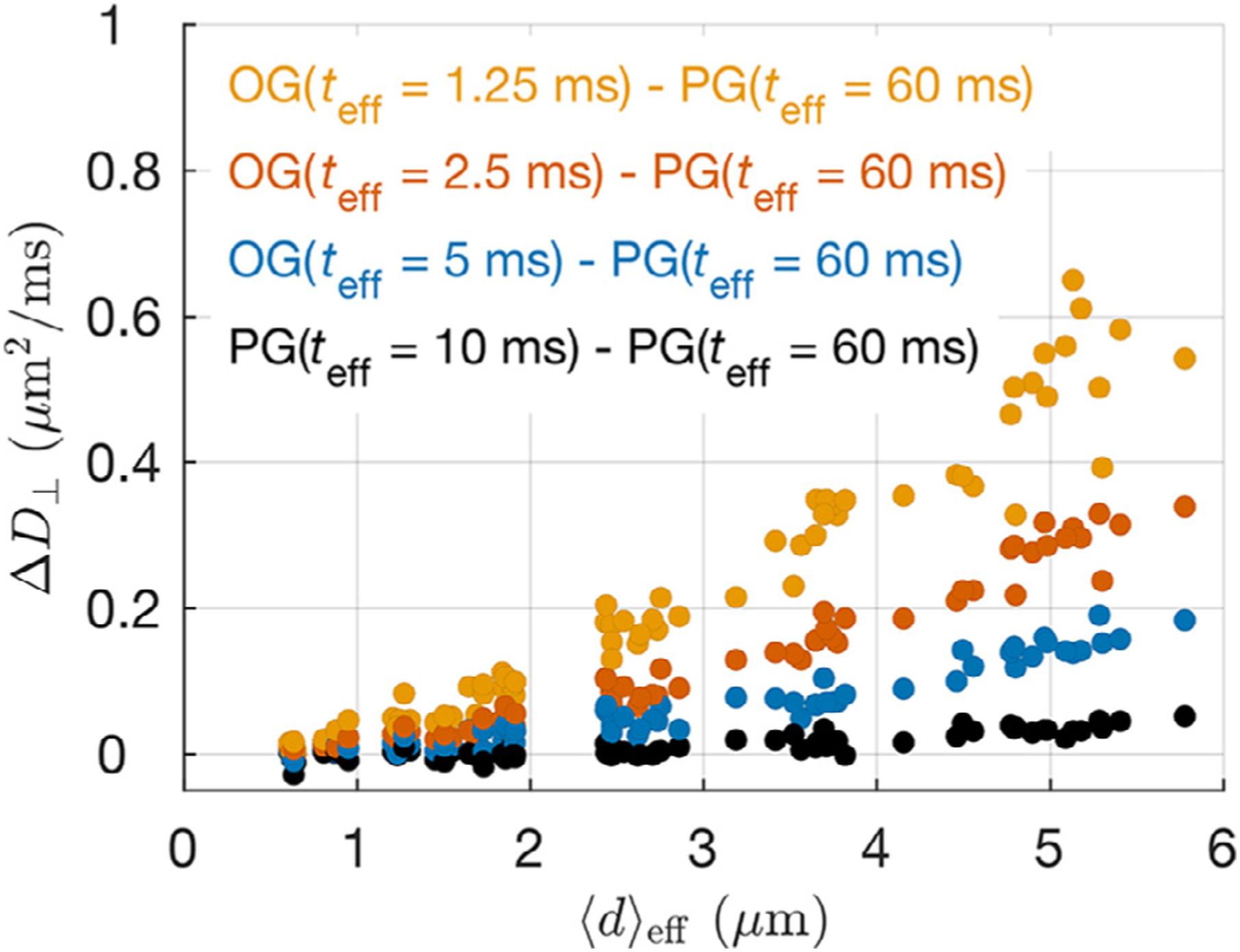

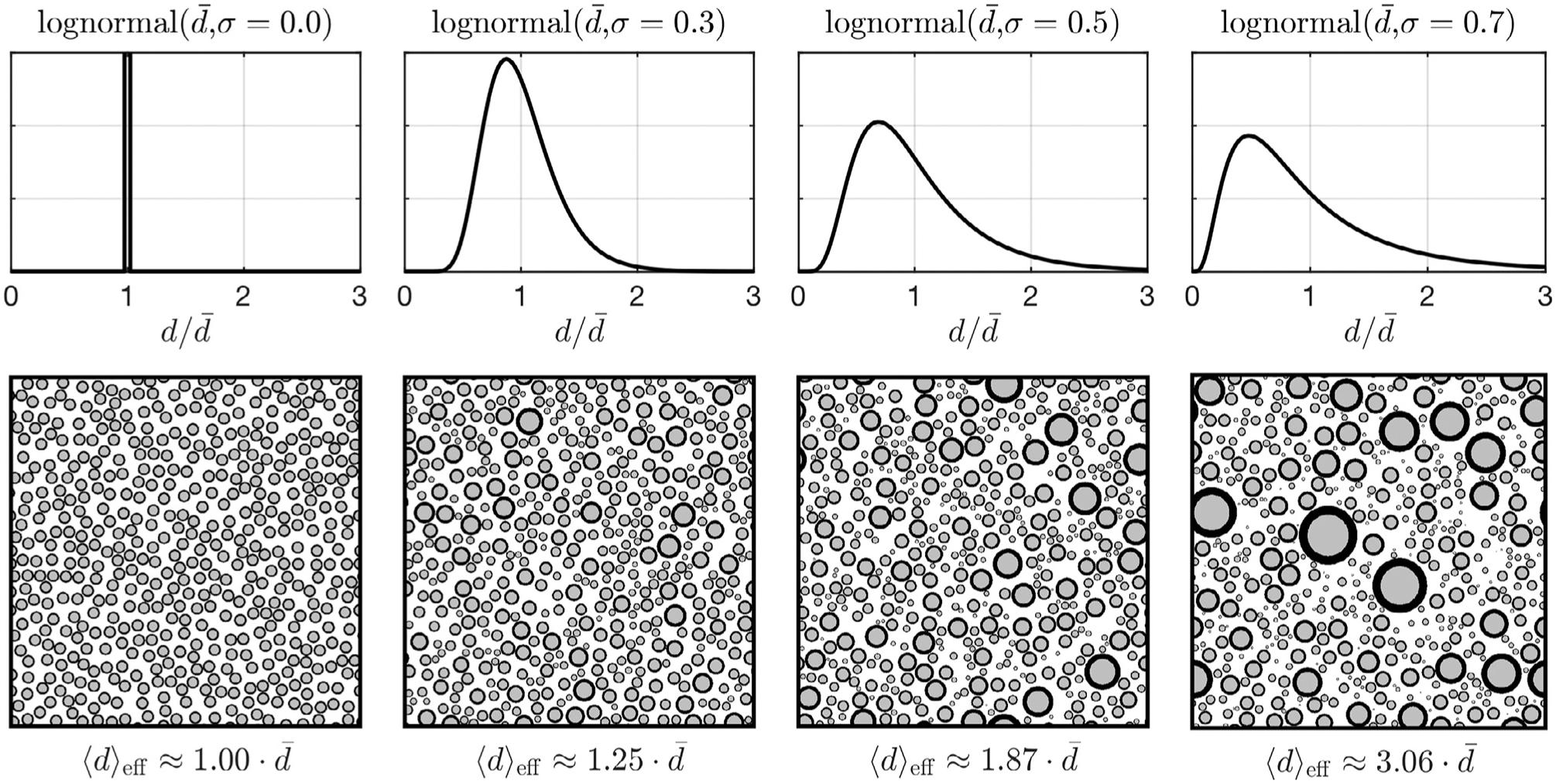

Noninvasive estimation of mean axon diameter presents a new opportunity to explore white matter plasticity, development, and pathology. Several diffusion-weighted MRI (DW-MRI) methods have been proposed to measure the average axon diameter in white matter, but they typically require many diffusion encoding measurements and complicated mathematical models to fit the signal to multiple tissue compartments, including intra- and extra-axonal spaces. Here, Monte Carlo simulations uncovered a straightforward DW-MRI metric of axon diameter: the change in radial apparent diffusion coefficient estimated at different effective diffusion times, ΔD. Simulations indicated that this metric increases monotonically within a relevant range of effective mean axon diameter while being insensitive to changes in extra-axonal volume fraction, axon diameter distribution, g-ratio, and influence of myelin water. Also, a monotonic relationship was found to exist for signals coming from both intra- and extra-axonal compartments. The slope in ΔD with effective axon diameter increased with the difference in diffusion time of both oscillating and pulsed gradient diffusion sequences.

摘要

无创性轴突平均直径估计为研究白质可塑性、发育和病理学提供了新的机会。已经提出了几种扩散加权 MRI(DW-MRI)方法来测量白质中的平均轴突直径,但它们通常需要进行多次扩散编码测量,并采用复杂的数学模型来拟合信号,以便将信号分配到多个组织隔室,包括轴内和轴外空间。在这里,蒙特卡罗模拟揭示了一种简单的 DW-MRI 轴突直径测量指标:在不同有效扩散时间下估计的径向表观扩散系数的变化,ΔD。模拟表明,在有效平均轴突直径的相关范围内,该指标单调增加,而对轴外容积分数、轴突直径分布、g 比以及髓鞘水的影响不敏感。此外,还发现来自轴内和轴外隔室的信号之间存在单调关系。ΔD 与有效轴突直径的斜率随振荡和脉冲梯度扩散序列的扩散时间差而增加。
