不同固定方式下斜向腰椎间融合的生物力学评估:有限元分析。

Biomechanical Evaluation of Oblique Lumbar Interbody Fusion with Various Fixation Options: A Finite Element Analysis.

机构信息

Department of Spinal Surgery, The Third Hospital of Hebei Medical University, ShiJiazhuang, China.

出版信息

Orthop Surg. 2021 Apr;13(2):517-529. doi: 10.1111/os.12877. Epub 2021 Feb 22.


DOI:10.1111/os.12877
PMID:33619850
原文链接:https://pmc.ncbi.nlm.nih.gov/articles/PMC7957407/
Abstract

OBJECTIVE: The aim of the present study was to clarify the biomechanical properties of oblique lumbar interbody fusion (OLIF) using different fixation methods in normal and osteoporosis spines. METHODS: Normal and osteoporosis intact finite element models of L -S were established based on CT images of a healthy male volunteer. Group A was the normal models and group B was the osteoporosis model. Each group included four subgroups: (i) intact; (ii) stand-alone cage (Cage); (iii) cage with lateral plate and two lateral screws (LP); and (iv) cage with bilateral pedicle screws and rods (BPSR). The L -L level was defined as the surgical segment. After validating the normal intact model, compressive load of 400 N and torsional moment of 10 Nm were applied to the superior surface of L to simulate flexion, extension, left bending, right bending, left rotation, and right rotation motions. Surgical segmental range of motion (ROM), cage stress, endplate stress, supplemental fixation stress, and stress distribution were analyzed in each group. RESULTS: Cage provided the minimal reduction of ROM among all motions (normal, 82.30%-98.81%; osteoporosis, 92.04%-97.29% of intact model). BPSR demonstrated the maximum reduction of ROM (normal, 43.94%-61.13%; osteoporosis, 45.61%-62.27% of intact model). The ROM of LP was between that of Cage and BPSR (normal, 63.25%-79.72%; osteoporosis, 70%-87.15% of intact model). Cage had the minimal cage stress and endplate stress. With the help of LP and BPSR fixation, cage stress and endplate stress were significantly reduced in all motions, both in normal and osteoporosis finite element models. However, BPSR had more advantages. For cage stress, BPSR was at least 75.73% less than that of Cage in the normal model, and it was at least 80.10% less than that of Cage in the osteoporosis model. For endplate stress, BPSR was at least 75.98% less than that of Cage in the normal model, and it was at least 78.06% less than that of Cage in the osteoporosis model. For supplemental fixation stress, BPSR and LP were much less than the yield strength in all motions in the two groups. In addition, the comparison between the two groups showed that the ROM, cage stress, endplate stress, and supplemental fixation stress in the normal model were less than in the osteoporosis model when using the same fixation option of OLIF. CONCLUSION: Oblique lumbar interbody fusion with BPSR provided the best biomechanical stability both in normal and osteoporosis spines. The biomechanical properties of the normal spine were better than those of the osteoporosis spine when using the same fixation option of OLIF.

摘要

目的:本研究旨在明确不同固定方式在正常和骨质疏松脊柱中斜侧腰椎体间融合术(OLIF)的生物力学特性。

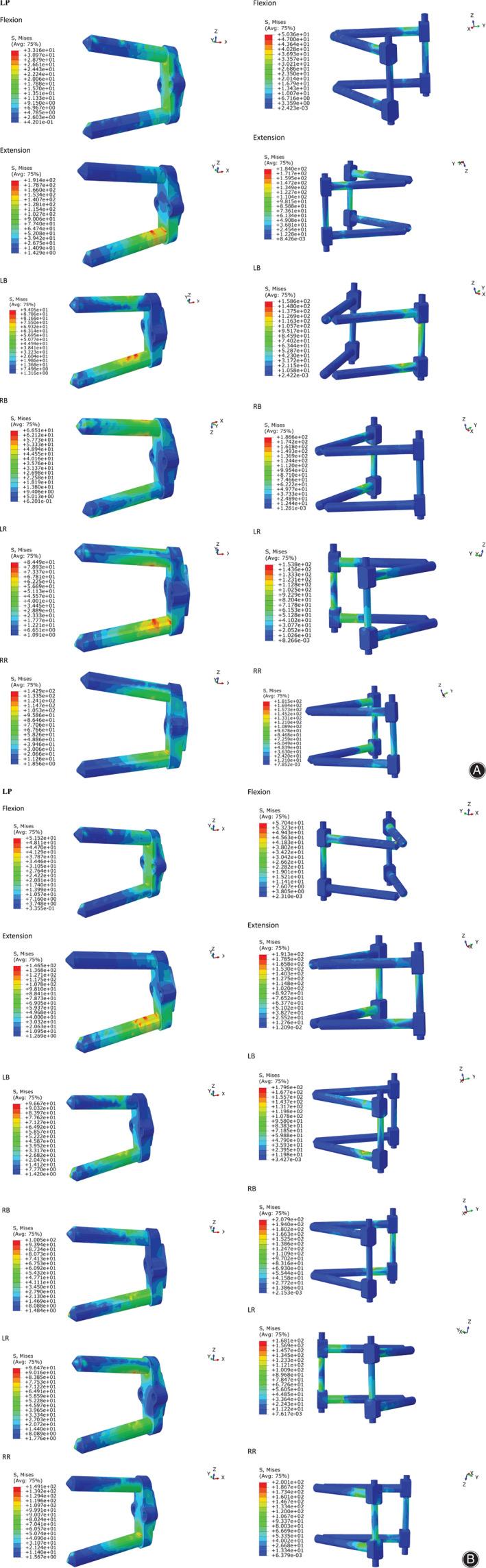

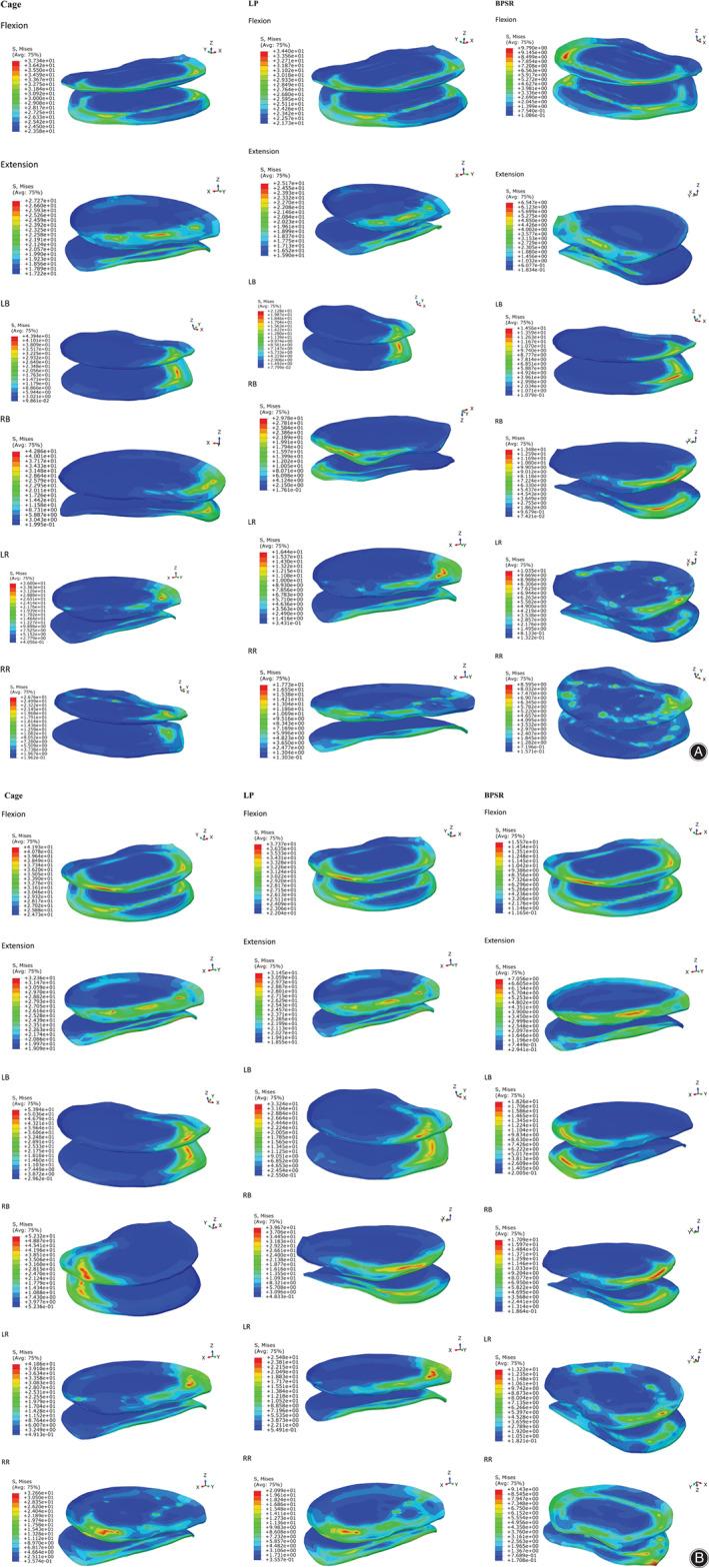

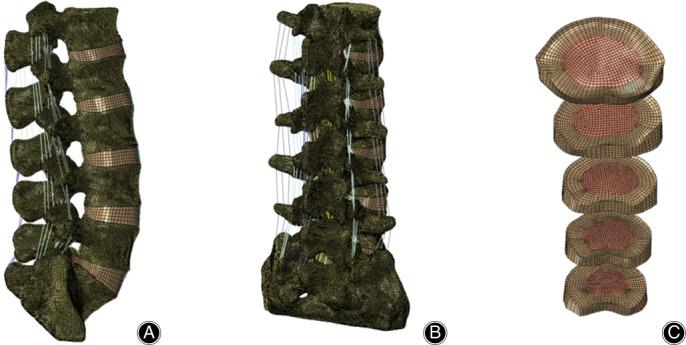

方法:基于一名健康男性志愿者的 CT 图像,建立了 L-S 的正常和骨质疏松完整有限元模型。A 组为正常模型,B 组为骨质疏松模型。每组均包括四个亚组:(i)完整;(ii)单纯 cage(Cage);(iii)带侧板和两个侧螺钉的 cage(LP);(iv)双侧椎弓根螺钉和棒(BPSR)。L-L 水平定义为手术节段。在验证正常完整模型后,在 L 的上表面施加 400 N 的压缩载荷和 10 Nm 的扭矩,以模拟屈伸、左右弯曲、左右旋转运动。分析每组手术节段活动范围(ROM)、cage 应力、终板应力、补充固定应力和应力分布。

结果:在所有运动中,Cage 提供了最小的 ROM 减少(正常,82.30%-98.81%;骨质疏松,92.04%-97.29%完整模型)。BPSR 显示了最大的 ROM 减少(正常,43.94%-61.13%;骨质疏松,45.61%-62.27%完整模型)。LP 的 ROM 介于 Cage 和 BPSR 之间(正常,63.25%-79.72%;骨质疏松,70%-87.15%完整模型)。Cage 的 cage 应力和终板应力最小。在 LP 和 BPSR 固定的帮助下,在正常和骨质疏松有限元模型的所有运动中,cage 应力和终板应力均显著降低。然而,BPSR 具有更多优势。对于 cage 应力,在正常模型中,BPSR 比 Cage 至少低 75.73%,在骨质疏松模型中,BPSR 比 Cage 至少低 80.10%。对于终板应力,在正常模型中,BPSR 比 Cage 至少低 75.98%,在骨质疏松模型中,BPSR 比 Cage 至少低 78.06%。对于补充固定应力,在两组的所有运动中,BPSR 和 LP 都远低于屈服强度。此外,两组之间的比较表明,在使用相同的 OLIF 固定方式时,正常模型的 ROM、cage 应力、终板应力和补充固定应力均小于骨质疏松模型。

结论:在正常和骨质疏松脊柱中,BPSR 辅助的斜侧腰椎体间融合术提供了最佳的生物力学稳定性。在使用相同的 OLIF 固定方式时,正常脊柱的生物力学性能优于骨质疏松脊柱。

https://cdn.ncbi.nlm.nih.gov/pmc/blobs/3468/7957407/fe8576b7fd70/OS-13-517-g002.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/3468/7957407/263836b47a45/OS-13-517-g006.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/3468/7957407/78d2f6baebe9/OS-13-517-g003.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/3468/7957407/647c1c7029b6/OS-13-517-g004.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/3468/7957407/9e7bb0d2d54a/OS-13-517-g001.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/3468/7957407/fe8576b7fd70/OS-13-517-g002.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/3468/7957407/263836b47a45/OS-13-517-g006.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/3468/7957407/78d2f6baebe9/OS-13-517-g003.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/3468/7957407/647c1c7029b6/OS-13-517-g004.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/3468/7957407/9e7bb0d2d54a/OS-13-517-g001.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/3468/7957407/fe8576b7fd70/OS-13-517-g002.jpg
