• 文献检索
  • 文档翻译
  • 深度研究
  • 学术资讯
  • Suppr Zotero 插件Zotero 插件
  • 邀请有礼
  • 套餐&价格
  • 历史记录
应用&插件
Suppr Zotero 插件Zotero 插件浏览器插件Mac 客户端Windows 客户端微信小程序
定价
高级版会员购买积分包购买API积分包
服务
文献检索文档翻译深度研究API 文档MCP 服务
关于我们
关于 Suppr公司介绍联系我们用户协议隐私条款
关注我们

Suppr 超能文献

核心技术专利：CN118964589B侵权必究
粤ICP备2023148730 号-1Suppr @ 2026

文献检索

告别复杂PubMed语法，用中文像聊天一样搜索，搜遍4000万医学文献。AI智能推荐，让科研检索更轻松。

立即免费搜索

文件翻译

保留排版，准确专业，支持PDF/Word/PPT等文件格式，支持 12+语言互译。

免费翻译文档

深度研究

AI帮你快速写综述，25分钟生成高质量综述，智能提取关键信息，辅助科研写作。

立即免费体验

应变补偿模型和加工图在描述亚稳β钛合金热变形行为中的应用

Application of the Strain Compensation Model and Processing Maps for Description of Hot Deformation Behavior of Metastable β Titanium Alloy.

作者信息

Lypchanskyi Oleksandr, Śleboda Tomasz, Łukaszek-Sołek Aneta, Zyguła Krystian, Wojtaszek Marek

机构信息

Faculty of Metals Engineering and Industrial Computer Science, AGH University of Science and Technology, Av. Mickiewicza 30, 30-059 Krakow, Poland.

出版信息

Materials (Basel). 2021 Apr 17;14(8):2021. doi: 10.3390/ma14082021.

DOI:10.3390/ma14082021
PMID:33920581
原文链接:https://pmc.ncbi.nlm.nih.gov/articles/PMC8073255/
Abstract

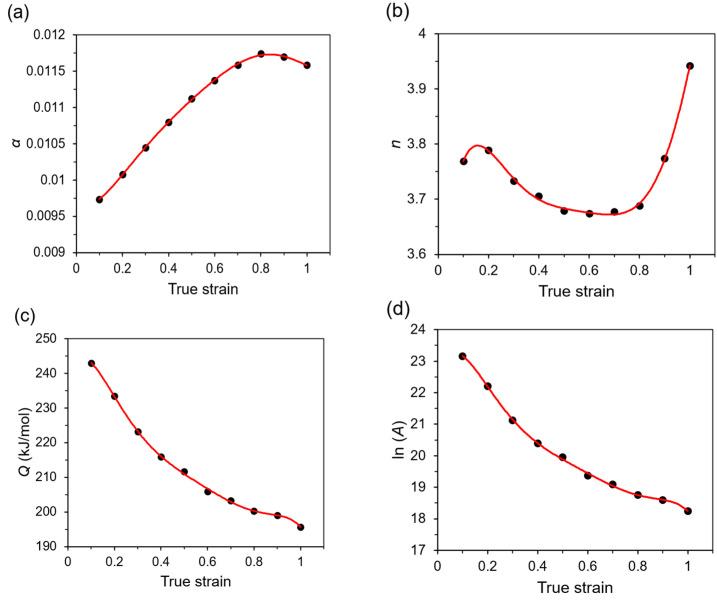

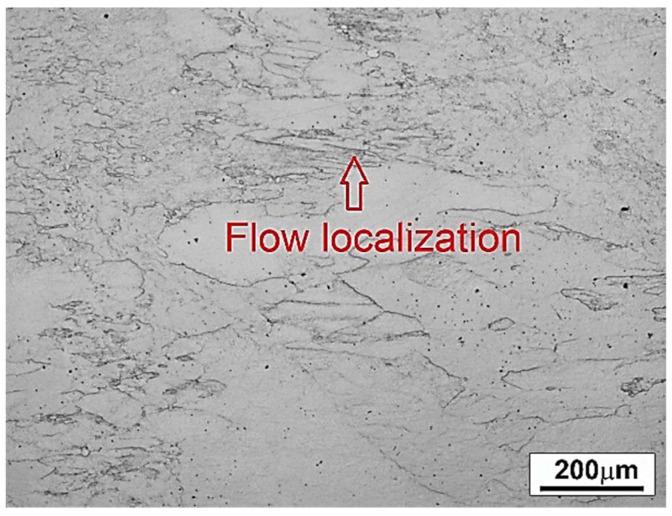

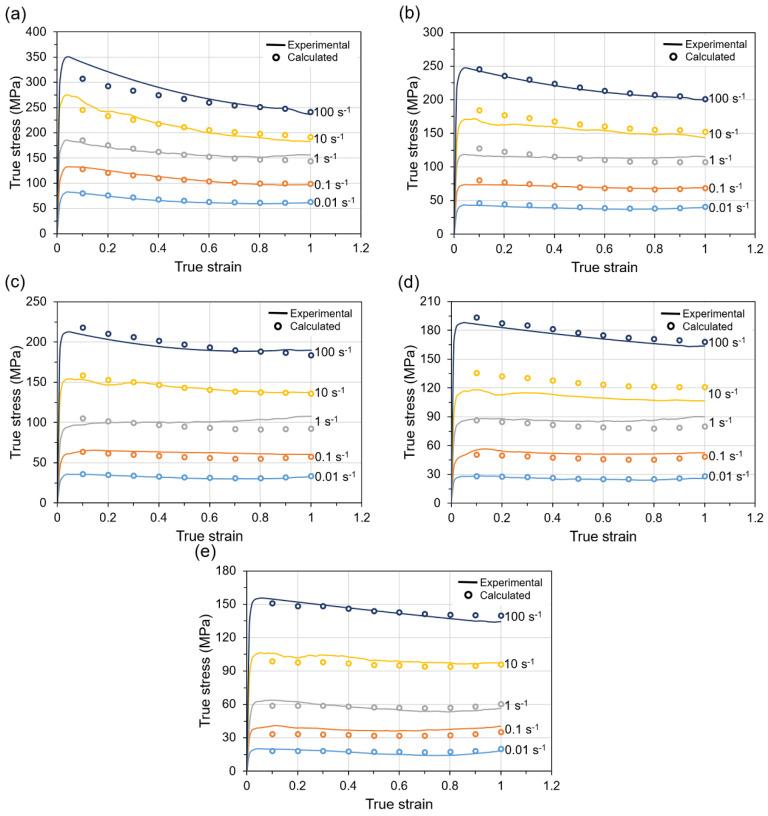

The flow behavior of metastable β titanium alloy was investigated basing on isothermal hot compression tests performed on Gleeble 3800 thermomechanical simulator at near and above β transus temperatures. The flow stress curves were obtained for deformation temperature range of 800-1100 °C and strain rate range of 0.01-100 s. The strain compensated constitutive model was developed using the Arrhenius-type equation. The high correlation coefficient (R) as well as low average absolute relative error (AARE) between the experimental and the calculated data confirmed a high accuracy of the developed model. The dynamic material modeling in combination with the Prasad stability criterion made it possible to generate processing maps for the investigated processing temperature, strain and strain rate ranges. The high material flow stability under investigated deformation conditions was revealed. The microstructural analysis provided additional information regarding the flow behavior and predominant deformation mechanism. It was found that dynamic recovery (DRV) was the main mechanism operating during the deformation of the investigated β titanium alloy.

摘要

基于在Gleeble 3800热机械模拟器上于β转变温度附近及以上温度进行的等温热压缩试验，对亚稳β钛合金的流变行为进行了研究。获得了800 - 1100°C变形温度范围和0.01 - 100 s应变率范围的流变应力曲线。使用阿累尼乌斯型方程建立了应变补偿本构模型。实验数据与计算数据之间的高相关系数（R）以及低平均绝对相对误差（AARE）证实了所建立模型的高精度。结合普拉萨德稳定性判据的动态材料建模，使得能够针对所研究的加工温度、应变和应变率范围生成加工图。揭示了在所研究的变形条件下材料具有较高的流变稳定性。微观结构分析提供了关于流变行为和主要变形机制的额外信息。结果发现，动态回复（DRV）是所研究的β钛合金变形过程中的主要作用机制。

https://cdn.ncbi.nlm.nih.gov/pmc/blobs/bd7d/8073255/32eeb3db730e/materials-14-02021-g010.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/bd7d/8073255/d80d369ebc35/materials-14-02021-g001.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/bd7d/8073255/a1c909e96ae0/materials-14-02021-g002a.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/bd7d/8073255/8dbe2480a4d8/materials-14-02021-g003a.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/bd7d/8073255/2ca40c2d431a/materials-14-02021-g004.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/bd7d/8073255/609e49149c9c/materials-14-02021-g005.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/bd7d/8073255/fbb901e75557/materials-14-02021-g006.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/bd7d/8073255/ea58e7c0f23b/materials-14-02021-g007.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/bd7d/8073255/10c7bc4dd25a/materials-14-02021-g008a.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/bd7d/8073255/6c60167fbe8a/materials-14-02021-g009.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/bd7d/8073255/32eeb3db730e/materials-14-02021-g010.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/bd7d/8073255/d80d369ebc35/materials-14-02021-g001.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/bd7d/8073255/a1c909e96ae0/materials-14-02021-g002a.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/bd7d/8073255/8dbe2480a4d8/materials-14-02021-g003a.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/bd7d/8073255/2ca40c2d431a/materials-14-02021-g004.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/bd7d/8073255/609e49149c9c/materials-14-02021-g005.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/bd7d/8073255/fbb901e75557/materials-14-02021-g006.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/bd7d/8073255/ea58e7c0f23b/materials-14-02021-g007.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/bd7d/8073255/10c7bc4dd25a/materials-14-02021-g008a.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/bd7d/8073255/6c60167fbe8a/materials-14-02021-g009.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/bd7d/8073255/32eeb3db730e/materials-14-02021-g010.jpg

相似文献

1
Application of the Strain Compensation Model and Processing Maps for Description of Hot Deformation Behavior of Metastable β Titanium Alloy.应变补偿模型和加工图在描述亚稳β钛合金热变形行为中的应用
Materials (Basel). 2021 Apr 17;14(8):2021. doi: 10.3390/ma14082021.
2
Hot Deformation Behavior and Processing Maps of Pure Copper during Isothermal Compression.纯铜等温压缩过程中的热变形行为及加工图
Materials (Basel). 2023 May 24;16(11):3939. doi: 10.3390/ma16113939.
3
Hot Deformation Behavior and Processing Maps of a New Ti-6Al-2Nb-2Zr-0.4B Titanium Alloy.一种新型Ti-6Al-2Nb-2Zr-0.4B钛合金的热变形行为及加工图
Materials (Basel). 2021 May 9;14(9):2456. doi: 10.3390/ma14092456.
4
Constitutive Model Prediction and Flow Behavior Considering Strain Response in the Thermal Processing for the TA15 Titanium Alloy.考虑TA15钛合金热加工中应变响应的本构模型预测与流动行为
Materials (Basel). 2018 Oct 15;11(10):1985. doi: 10.3390/ma11101985.
5
Deformation Behavior, a Flow Stress Model Considering the Contribution of Strain and Processing Maps in the Isothermal Compression of a Near-α Ti-3.3Al-1.5Zr-1.2Mo-0.6Ni Titanium Alloy.一种考虑应变贡献的流变应力模型及加工图的近α型Ti-3.3Al-1.5Zr-1.2Mo-0.6Ni钛合金等温压缩变形行为
Materials (Basel). 2022 May 6;15(9):3346. doi: 10.3390/ma15093346.
6
Constitutive Equation and Hot Compression Deformation Behavior of Homogenized Al-7.5Zn-1.5Mg-0.2Cu-0.2Zr Alloy.均匀化Al-7.5Zn-1.5Mg-0.2Cu-0.2Zr合金的本构方程及热压缩变形行为
Materials (Basel). 2017 Oct 18;10(10):1193. doi: 10.3390/ma10101193.
7
Hot Deformation Behavior of the 25CrMo4 Steel Using a Modified Arrhenius Model.基于修正阿伦尼乌斯模型的25CrMo4钢热变形行为
Materials (Basel). 2022 Apr 12;15(8):2820. doi: 10.3390/ma15082820.
8
Hot Deformation Behavior, Processing Maps and Microstructural Evolution of the Mg-2.5Nd-0.5Zn-0.5Zr Alloy.Mg-2.5Nd-0.5Zn-0.5Zr合金的热变形行为、加工图及微观组织演变
Materials (Basel). 2022 Feb 25;15(5):1745. doi: 10.3390/ma15051745.
9
Constitutive Equations for Describing the Hot Compressed Behavior of TC4-DT Titanium Alloy.用于描述TC4-DT钛合金热压缩行为的本构方程。
Materials (Basel). 2020 Aug 3;13(15):3424. doi: 10.3390/ma13153424.
10
Constitutive Equation and Hot Processing Map of Mg-16Al Magnesium Alloy Bars.Mg-16Al镁合金棒材的本构方程与热加工图
Materials (Basel). 2020 Jul 12;13(14):3107. doi: 10.3390/ma13143107.

引用本文的文献

1
Effects of Aging Treatment on the Microstructures and Mechanical Properties of a TC18 Alloy.时效处理对TC18合金微观组织和力学性能的影响
Materials (Basel). 2024 Jan 25;17(3):570. doi: 10.3390/ma17030570.
2
Hot Deformation and Microstructure Evolution of Metallic Materials.金属材料的热变形与微观组织演变
Materials (Basel). 2023 Feb 14;16(4):1602. doi: 10.3390/ma16041602.
3
Hot Formability Study of Cr5 Alloy Steel by Integration of FEM and 3D Processing Maps.基于有限元法与三维加工图集成的Cr5合金钢热加工性能研究

本文引用的文献

1
Evaluation of Hot Workability of Nickel-Based Superalloy Using Activation Energy Map and Processing Maps.基于激活能图和加工图的镍基高温合金热加工性评估
Materials (Basel). 2020 Aug 17;13(16):3629. doi: 10.3390/ma13163629.
2
Correlation among the Power Dissipation Efficiency, Flow Stress Course, and Activation Energy Evolution in Cr-Mo Low-Alloyed Steel.Cr-Mo低合金钢中功耗效率、流变应力过程与激活能演化之间的相关性
Materials (Basel). 2020 Aug 7;13(16):3480. doi: 10.3390/ma13163480.
Materials (Basel). 2022 Jul 9;15(14):4801. doi: 10.3390/ma15144801.
4
Deformation Behavior, a Flow Stress Model Considering the Contribution of Strain and Processing Maps in the Isothermal Compression of a Near-α Ti-3.3Al-1.5Zr-1.2Mo-0.6Ni Titanium Alloy.一种考虑应变贡献的流变应力模型及加工图的近α型Ti-3.3Al-1.5Zr-1.2Mo-0.6Ni钛合金等温压缩变形行为
Materials (Basel). 2022 May 6;15(9):3346. doi: 10.3390/ma15093346.
5
Hot Deformation Behavior of the 25CrMo4 Steel Using a Modified Arrhenius Model.基于修正阿伦尼乌斯模型的25CrMo4钢热变形行为
Materials (Basel). 2022 Apr 12;15(8):2820. doi: 10.3390/ma15082820.
6
Microstructure Evolution and a Unified Constitutive Model of Ti-55511 Alloy Compressed at Stepped Strain Rates.Ti-55511合金在阶梯应变率下压缩时的微观结构演变及统一本构模型
Materials (Basel). 2021 Nov 9;14(22):6750. doi: 10.3390/ma14226750.
