Yang Huizhu, Jiang Gedong, Wang Wenjun, Mei Xuesong
State Key Laboratory for Manufacturing System Engineering, Qujiang Campus, Xi'an Jiaotong University, Xi'an 710054, China.
Department of Mechanical Engineering, Faculty of Mechanical Engineering, Xi'an Jiaotong University, Xi'an 710054, China.
Materials (Basel). 2021 May 6;14(9):2413. doi: 10.3390/ma14092413.

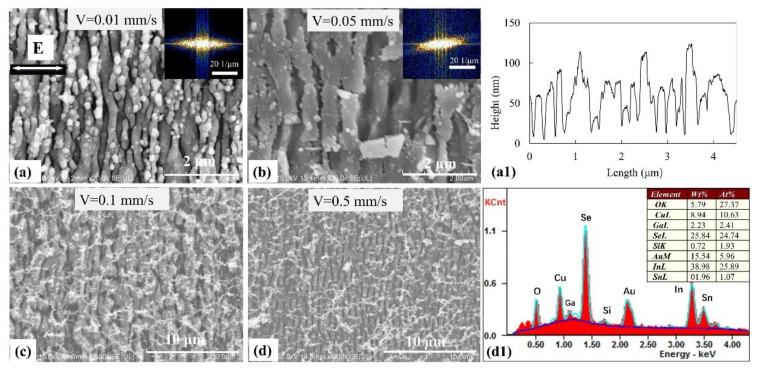

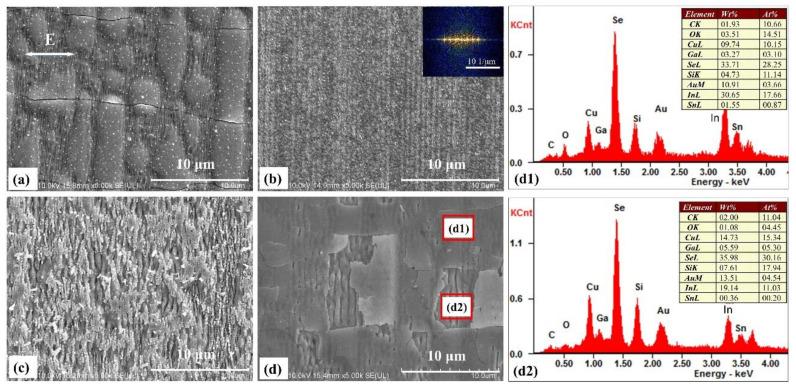

Cu(In, Ga)Se (CIGS) thin films have attracted considerable interest as potential photovoltaic solar cells. Moreover, several current studies are focusing on improving their conversion efficiency. This study proposes a method to process micro- and nanostructures onto the surface of CIGS/ITO bilayer films to broaden the field of solar cell application. The bilayer films exhibited optical characteristics different from those of a single-film during processing. Field intensities at different layer positions of the CIGS/ITO bilayer films were analyzed, and different structures were fabricated by varying a set of parameters. Ripples were obtained using a pulse energy of 0.15 μJ and scanning speeds in the range of 0.1-1 mm/s, but after increasing speed to 3-5 mm/s, ripple structures were produced that had a large period of several microns and spatial porous nanostructures. This pattern exhibited low reflectivity. Optimal structures were obtained at a scanning speed of 3.5 mm/s a pulse energy of 0.15 μJ, and a reflectivity lower than 5%. Large areas characterized by micron-sized ripple structures and accompanied by nanoscale porous structures presented high optical performance and efficiency, which can be used to broaden the application of thin film-based solar cells.
铜铟镓硒(CIGS)薄膜作为潜在的光伏太阳能电池引起了广泛关注。此外,目前的一些研究集中在提高其转换效率上。本研究提出了一种在CIGS/ITO双层薄膜表面加工微纳结构的方法,以拓宽太阳能电池的应用领域。在加工过程中,双层薄膜表现出与单层薄膜不同的光学特性。分析了CIGS/ITO双层薄膜不同层位置的场强,并通过改变一组参数制造了不同的结构。使用0.15 μJ的脉冲能量和0.1-1 mm/s范围内的扫描速度获得了波纹,但在将速度提高到3-5 mm/s后,产生了具有几微米大周期和空间多孔纳米结构的波纹结构。这种图案表现出低反射率。在扫描速度为3.5 mm/s、脉冲能量为0.15 μJ且反射率低于5%的条件下获得了最佳结构。以微米级波纹结构为特征并伴有纳米级多孔结构的大面积区域具有高光性能和效率,可用于拓宽基于薄膜的太阳能电池的应用。
