Metzner C, Hörsch F, Mark C, Czerwinski T, Winterl A, Voskens C, Fabry B
Biophysics, Friedrich-Alexander University Erlangen-Nürnberg, Erlangen, Germany.
Department of Dermatology, University Hospital Erlangen, Friedrich-Alexander University Erlangen-Nürnberg, Erlangen, Germany.
Sci Rep. 2021 Jul 22;11(1):15031. doi: 10.1038/s41598-021-94458-0.

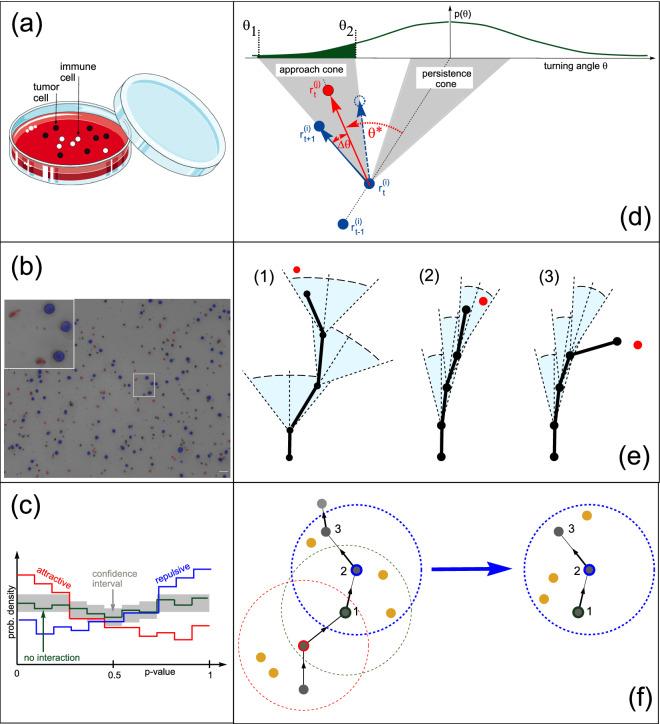

Chemotaxis enables cells to systematically approach distant targets that emit a diffusible guiding substance. However, the visual observation of an encounter between a cell and a target does not necessarily indicate the presence of a chemotactic approach mechanism, as even a blindly migrating cell can come across a target by chance. To distinguish between the chemotactic approach and blind migration, we present an objective method that is based on the analysis of time-lapse recorded cell migration trajectories: For each movement step of a cell relative to the position of a potential target, we compute a p value that quantifies the likelihood of the movement direction under the null-hypothesis of blind migration. The resulting distribution of p values, pooled over all recorded cell trajectories, is then compared to an ensemble of reference distributions in which the positions of targets are randomized. First, we validate our method with simulated data, demonstrating that it reliably detects the presence or absence of remote cell-cell interactions. In a second step, we apply the method to data from three-dimensional collagen gels, interspersed with highly migratory natural killer (NK) cells that were derived from two different human donors. We find for one of the donors an attractive interaction between the NK cells, pointing to a cooperative behavior of these immune cells. When adding nearly stationary K562 tumor cells to the system, we find a repulsive interaction between K562 and NK cells for one of the donors. By contrast, we find attractive interactions between NK cells and an IL-15-secreting variant of K562 tumor cells. We therefore speculate that NK cells find wild-type tumor cells only by chance, but are programmed to leave a target quickly after a close encounter. We provide a freely available Python implementation of our p value method that can serve as a general tool for detecting long-range interactions in collective systems of self-driven agents.
趋化作用使细胞能够系统地接近释放可扩散引导物质的远处目标。然而,细胞与目标相遇的视觉观察并不一定表明存在趋化接近机制,因为即使是盲目迁移的细胞也可能偶然遇到目标。为了区分趋化接近和盲目迁移,我们提出了一种基于对延时记录的细胞迁移轨迹进行分析的客观方法:对于细胞相对于潜在目标位置的每一个移动步骤,我们计算一个p值,该值量化了在盲目迁移的零假设下移动方向的可能性。然后,将所有记录的细胞轨迹汇总得到的p值分布与目标位置随机化的参考分布集合进行比较。首先,我们用模拟数据验证了我们的方法,证明它能够可靠地检测远程细胞间相互作用的存在与否。第二步,我们将该方法应用于三维胶原蛋白凝胶的数据,其中散布着来自两个不同人类供体的高迁移性自然杀伤(NK)细胞。我们发现其中一个供体的NK细胞之间存在吸引性相互作用,这表明这些免疫细胞具有合作行为。当向系统中添加几乎静止的K562肿瘤细胞时,我们发现其中一个供体的K562和NK细胞之间存在排斥性相互作用。相比之下,我们发现NK细胞与K562肿瘤细胞的IL-15分泌变体之间存在吸引性相互作用。因此,我们推测NK细胞只是偶然发现野生型肿瘤细胞,但在近距离接触后会被编程迅速离开目标。我们提供了我们的p值方法的免费Python实现,它可以作为检测自驱动主体集体系统中远程相互作用的通用工具。
