Zhao Wenjing, Xu Jie, He Kun, Cai Yuan, Han Yu, Yang Shaomin, Zhan Sheng, Wang Dapeng, Liu Zhike, Liu Shengzhong
Key Laboratory of Applied Surface and Colloid Chemistry, Ministry of Education, Shaanxi Key Laboratory for Advanced Energy Devices, Shaanxi Engineering Lab for Advanced Energy Technology, School of Materials Science & Engineering, Shaanxi Normal University, Xi'an, 710119, People's Republic of China.
Dalian National Laboratory for Clean Energy, iChEM, Dalian Institute of Chemical Physics, Chinese Academy of Sciences, Dalian, 116023, People's Republic of China.
Nanomicro Lett. 2021 Aug 6;13(1):169. doi: 10.1007/s40820-021-00688-2.

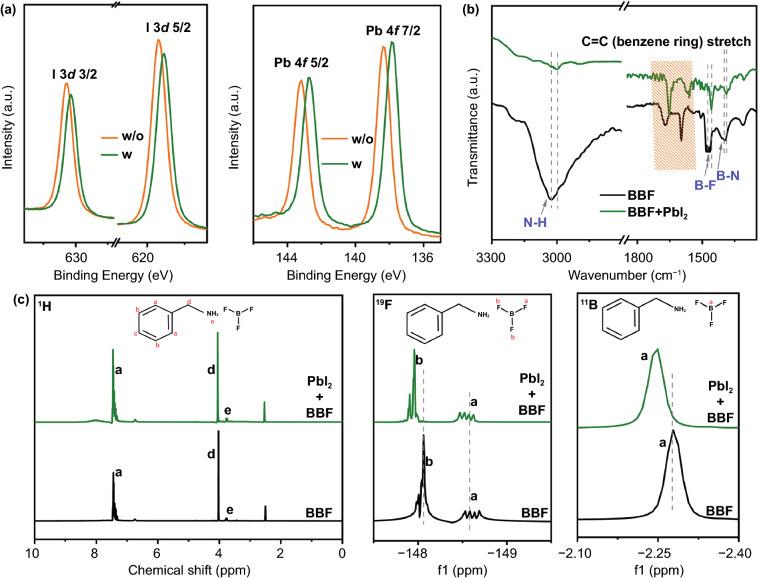

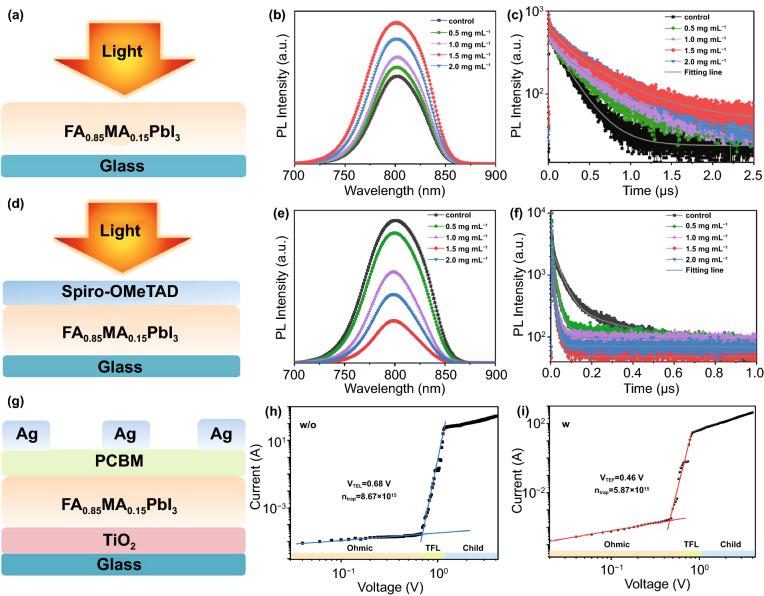

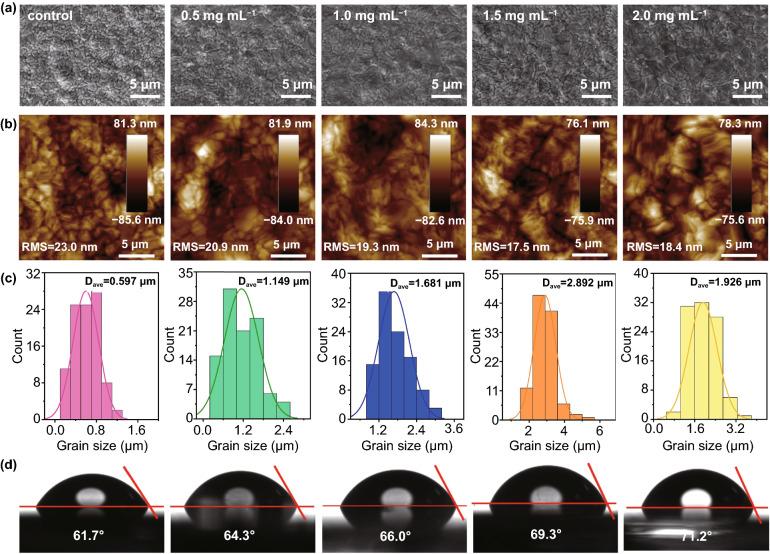

Passivating undercoordinated ions is an effective way to reduce the defect densities at the surface and grain boundaries (GBs) of perovskite materials for enhanced photovoltaic performance and stability of perovskite solar cells (PSCs). Here, (BBF) complex is chosen as a multifunctional additive, which contains both CHN and BF groups working as Lewis base and Lewis acid, respectively, can bond with Pb/I and FA on the surface and in the GBs in the perovskite film, affording passivation of both cation and anion defects. The synergistic effect of the CHN and BF complex slows the crystallization during the perovskite film deposition to improve the crystalline quality, which reduces the trap density and the recombination in the perovskite film to suppress nonradiative recombination loss and minimizes moisture permeation to improve the stability of the perovskite material. Meanwhile, such an additive improves the energy-level alignment between the valence band of the perovskite and the highest occupied molecular orbital of the hole-transporting material, Spiro-OMeTAD. Consequently, our work achieves power conversion efficiency of 23.24%, accompanied by enhanced stability under ambient conditions and light illumination and opens a new avenue for improving the performance of PSCs through the use of a multifunctional complex.
钝化欠配位离子是降低钙钛矿材料表面和晶界处缺陷密度的有效方法,可提高钙钛矿太阳能电池(PSC)的光伏性能和稳定性。在此,选择(BBF)配合物作为多功能添加剂,它包含分别作为路易斯碱和路易斯酸的CHN和BF基团,能与钙钛矿薄膜表面和晶界处的Pb/I和FA结合,实现阳离子和阴离子缺陷的钝化。CHN和BF配合物的协同作用减缓了钙钛矿薄膜沉积过程中的结晶速度,从而提高结晶质量,降低钙钛矿薄膜中的陷阱密度和复合,抑制非辐射复合损失,并使水分渗透最小化,提高钙钛矿材料的稳定性。同时,这种添加剂改善了钙钛矿价带与空穴传输材料Spiro-OMeTAD的最高占据分子轨道之间的能级对齐。因此,我们的工作实现了23.24%的功率转换效率,同时在环境条件和光照下稳定性增强,并为通过使用多功能配合物提高PSC性能开辟了一条新途径。
