Urology.
Pharmacology, Okayama University Graduate School of Medicine, Dentistry and Pharmaceutical Sciences.
Int J Urol. 2021 Dec;28(12):1282-1289. doi: 10.1111/iju.14675. Epub 2021 Sep 4.

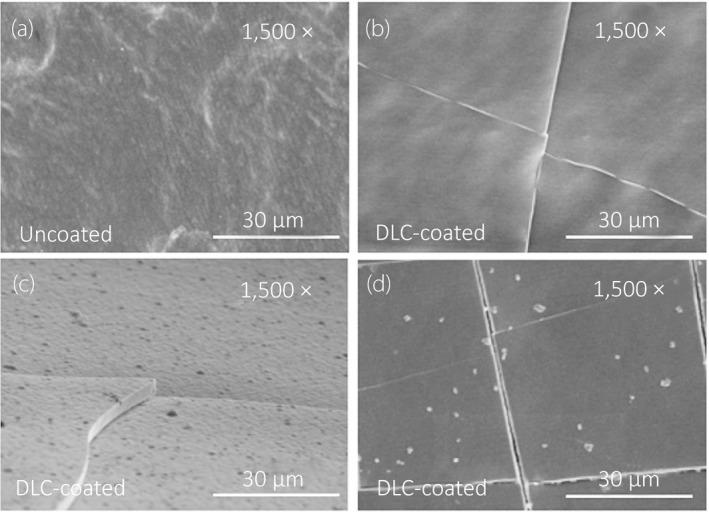

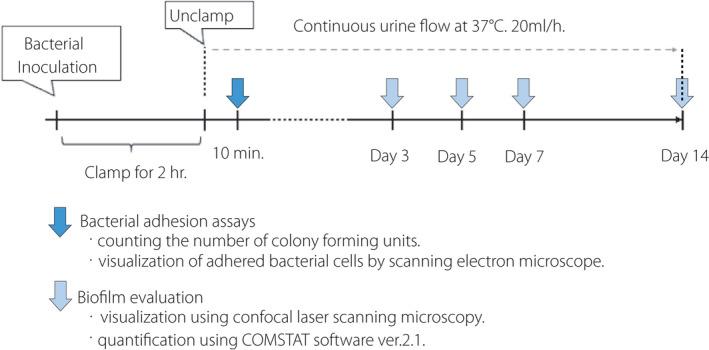

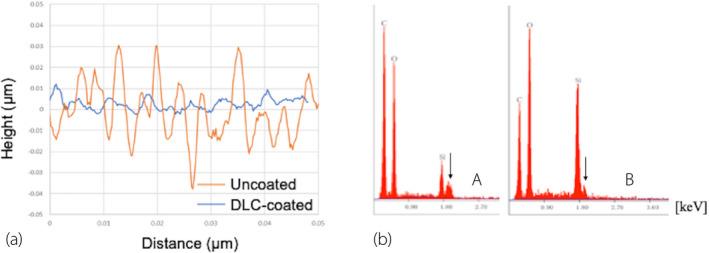

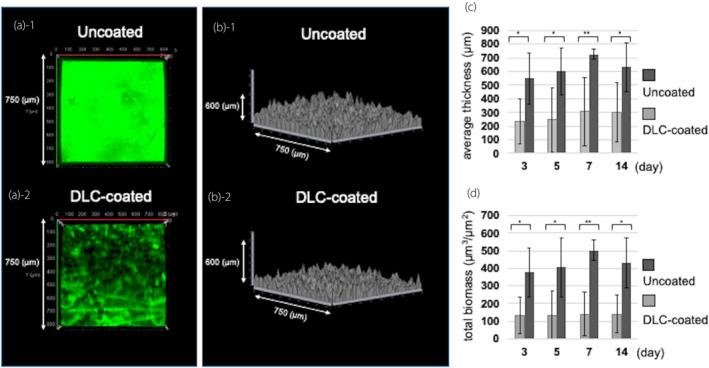

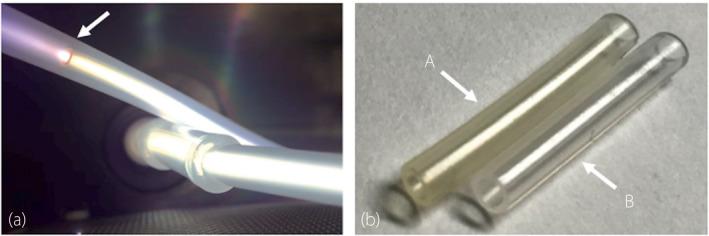

OBJECTIVES: To examine anti-adhesion and anti-biofilm effects of a diamond-like carbon coating deposited via a novel technique on the inner surface of a thin silicon tube. METHODS: Diamond-like carbon coatings were deposited into the lumen of a silicon tube with inner diameters of 2 mm. The surface of the diamond-like carbon was evaluated using physicochemical methods. We used three clinical isolates including green fluorescent protein-expressing Pseudomonas aeruginosa, Escherichia coli and Staphylococcus aureus. We employed a continuous flow system for evaluation of both bacterial adhesion and biofilm formation. Bacterial adhesion assays consisted of counting the number of colony-forming units and visualization of adhered bacterial cells by scanning electron microscope to evaluate the diamond-like carbon-coated/uncoated samples. The biofilm structure was analyzed by confocal laser scanning microscopy on days 3, 5, 7 and 14 for green fluorescent protein-expressing Pseudomonas aeruginosa. RESULTS: The smooth and carbon-rich structure of the intraluminal diamond-like carbon film remained unchanged after the experiments. The numbers of colony-forming units suggested lower adherence of green fluorescent protein-expressing Pseudomonas aeruginosa and Escherichia coli in the diamond-like carbon-coated samples compared with the uncoated samples. The scanning electron microscope images showed adhered green fluorescent protein-expressing Pseudomonas aeruginosa cells without formation of microcolonies on the diamond-like carbon-coated samples. Finally, biofilm formation on the diamond-like carbon-coated samples was lower until at least day 14 compared with the uncoated samples. CONCLUSIONS: Intraluminal diamond-like carbon coating on a silicone tube has anti-adhesion and anti-biofilm effects. This technology can be applied to urinary catheters made from various materials.
目的:研究通过一种新颖技术在薄硅管内表面沉积的类金刚石碳涂层的抗粘连和抗生物膜效应。
方法:将类金刚石碳涂层沉积到内径为 2mm 的硅管管腔中。使用物理化学方法评估类金刚石碳的表面。我们使用了三种临床分离株,包括表达绿色荧光蛋白的铜绿假单胞菌、大肠杆菌和金黄色葡萄球菌。我们采用连续流动系统评估细菌的粘附和生物膜形成。细菌粘附实验包括通过扫描电子显微镜计数形成的菌落形成单位的数量和观察粘附的细菌细胞,以评估类金刚石碳涂层/未涂层的样品。在第 3、5、7 和 14 天,通过共聚焦激光扫描显微镜分析表达绿色荧光蛋白的铜绿假单胞菌的生物膜结构。

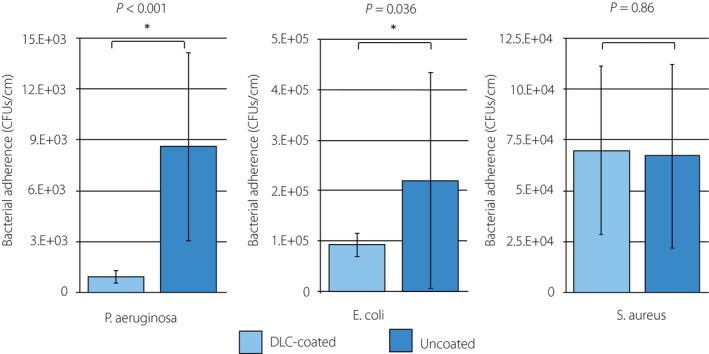

结果:实验后,管内的类金刚石碳膜保持光滑且富含碳的结构不变。菌落形成单位的数量表明,与未涂层的样品相比,表达绿色荧光蛋白的铜绿假单胞菌和大肠杆菌在类金刚石碳涂层的样品中的粘附减少。扫描电子显微镜图像显示,在类金刚石碳涂层的样品上,粘附的表达绿色荧光蛋白的铜绿假单胞菌细胞没有形成微菌落。最后,与未涂层的样品相比,类金刚石碳涂层的样品上的生物膜形成至少在第 14 天之前较低。
结论:硅管内表面的类金刚石碳涂层具有抗粘连和抗生物膜的效果。这项技术可以应用于各种材料制成的导尿管。
