Tendon-inspired anti-freezing tough gels.

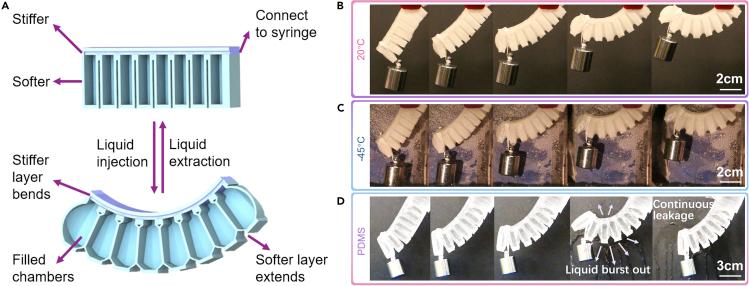

Hydrogels have gained tremendous attention due to their versatility in soft electronics, actuators, biomedical sensors, etc. Due to the high water content, hydrogels are usually soft, weak, and freeze below 0°C, which brings severe limitations to applications such as soft robotics and flexible electronics in harsh environments. Most existing anti-freezing gels suffer from poor mechanical properties and urgently need further improvements. Here, we took inspirations from tendon and coniferous trees and provided an effective method to strengthen polyvinyl alcohol (PVA) hydrogel while making it freeze resistant. The salting-out effect was utilized to create a hierarchically structured polymer network, which induced superior mechanical properties (Young's modulus: 10.1 MPa, tensile strength: 13.5 MPa, and toughness: 127.9 MJ/m). Meanwhile, the cononsolvency effect was employed to preserve the structure and suppress the freezing point to -60°C. Moreover, we have demonstrated the broad applicability of our material by fabricating PVA hydrogel-based hydraulic actuators and ionic conductors.
