Huo Xiaomin, Shen Honglie, Liu Rui, Shao Jing
College of Materials Science and Technology, Jiangsu Key Laboratory of Materials and Technology for Energy Conversion, Nanjing University of Aeronautics and Astronautics, Nanjing 210016, P. R. China.
Dalian Inspection, Testing and Certification Group Co., Ltd., Dalian 116021, P. R. China.
ACS Omega. 2021 Sep 27;6(40):26499-26508. doi: 10.1021/acsomega.1c03731. eCollection 2021 Oct 12.

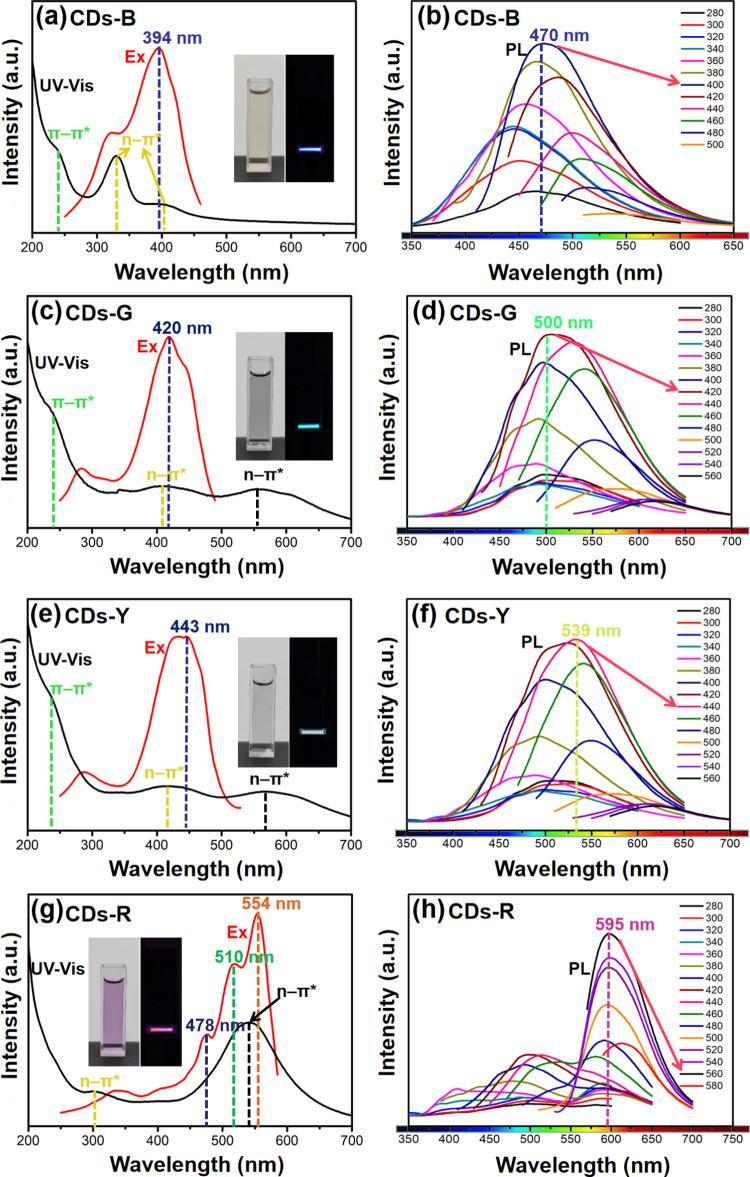

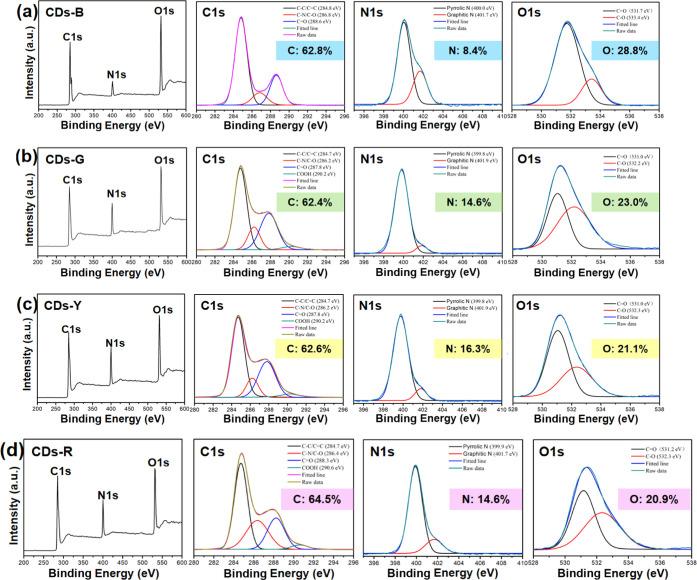

Carbon dots (CDs) are synthesized by the solvothermal method with four kinds of solvents including water, dimethylformamide (DMF), ethanol, and acetic acid (AA). The aqueous solutions of the above CDs emit multiple colors of blue (470 nm), green (500 nm), yellow (539 nm), and orange (595 nm). The structures, sizes, and chemical composition of the CDs are characterized by transmission electron microscopy (TEM), dynamic light scattering (DLS), X-ray diffraction (XRD), Fourier transform infrared (FTIR), and X-ray photoelectron spectroscopy (XPS). The optical properties of multicolored CDs are analyzed by UV-vis absorption and photoluminescence (PL) spectra. It has been revealed that DMF is the key solvent to synthesized CDs for the red shift of fluorescence emission, which could be enhanced by adding an AA solvent. The structures of functional groups such as the contents of graphitic N in carbon cores and oxygen-containing functional groups on the surface of CDs are affected by these four solvents. According to the oxidation and selective reduction of NaBH, the implication for multicolor imaging has been discussed based on the COOH, C-O-C, and C=O functional groups.
碳点(CDs)通过溶剂热法,使用包括水、二甲基甲酰胺(DMF)、乙醇和乙酸(AA)在内的四种溶剂合成。上述碳点的水溶液发出蓝色(470纳米)、绿色(500纳米)、黄色(539纳米)和橙色(595纳米)等多种颜色的光。通过透射电子显微镜(TEM)、动态光散射(DLS)、X射线衍射(XRD)、傅里叶变换红外光谱(FTIR)和X射线光电子能谱(XPS)对碳点的结构、尺寸和化学成分进行了表征。通过紫外可见吸收光谱和光致发光(PL)光谱分析了多色碳点的光学性质。研究发现,DMF是合成碳点导致荧光发射红移的关键溶剂,添加AA溶剂可增强这种红移。这四种溶剂会影响碳点核心中石墨氮含量和表面含氧官能团等官能团的结构。根据硼氢化钠的氧化和选择性还原,基于羧基、碳氧键和羰基官能团讨论了其在多色成像中的意义。
