Łosiewicz Bożena, Stróż Agnieszka, Osak Patrycja, Maszybrocka Joanna, Gerle Anna, Dudek Karolina, Balin Katarzyna, Łukowiec Dariusz, Gawlikowski Maciej, Bogunia Sylwia
Institute of Materials Engineering, Faculty of Science and Technology, University of Silesia in Katowice, 75 Pułku Piechoty 1A, 41-500 Chorzów, Poland.
Łukasiewicz Research Network, Institute of Ceramics and Building Materials, Refractory Materials Division, Toszecka 99, 44-100 Gliwice, Poland.
Materials (Basel). 2021 Oct 16;14(20):6142. doi: 10.3390/ma14206142.

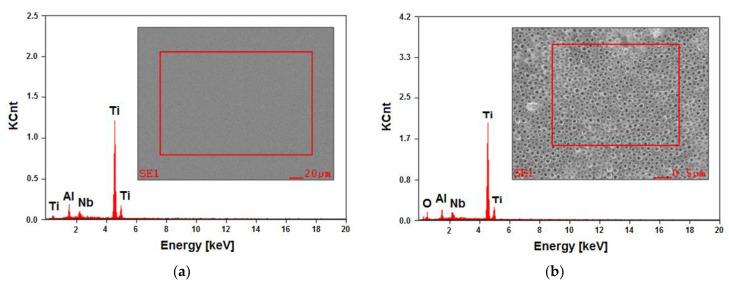

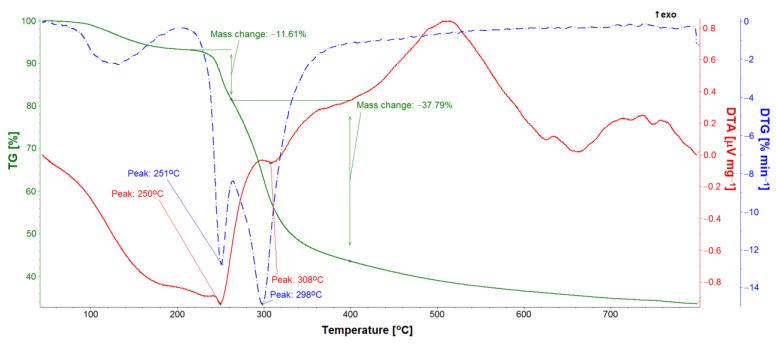

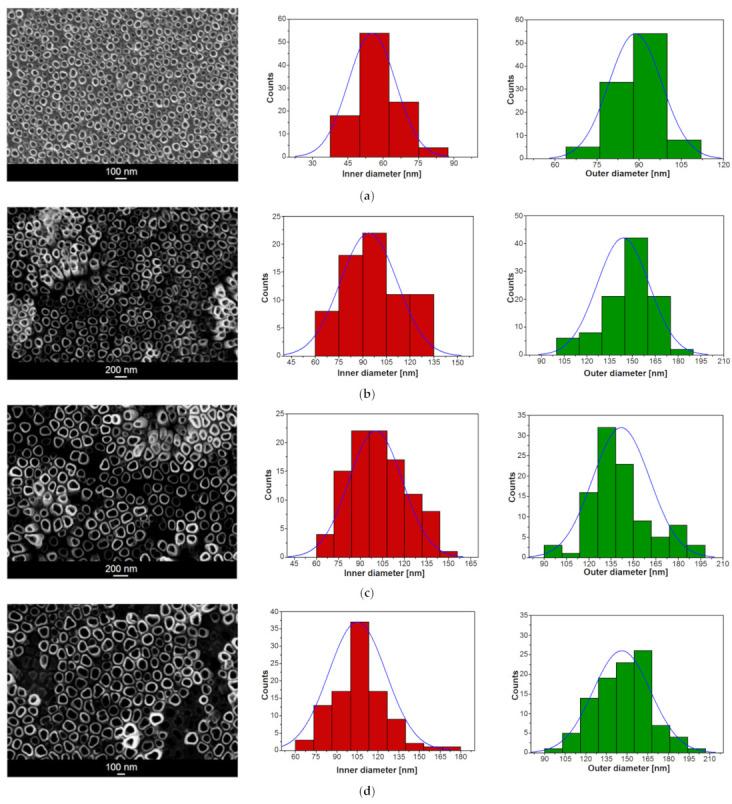

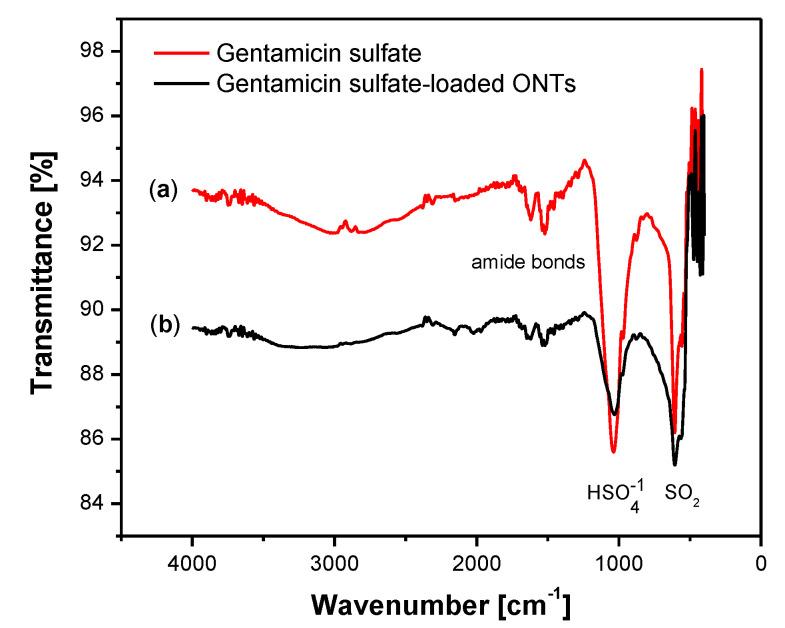

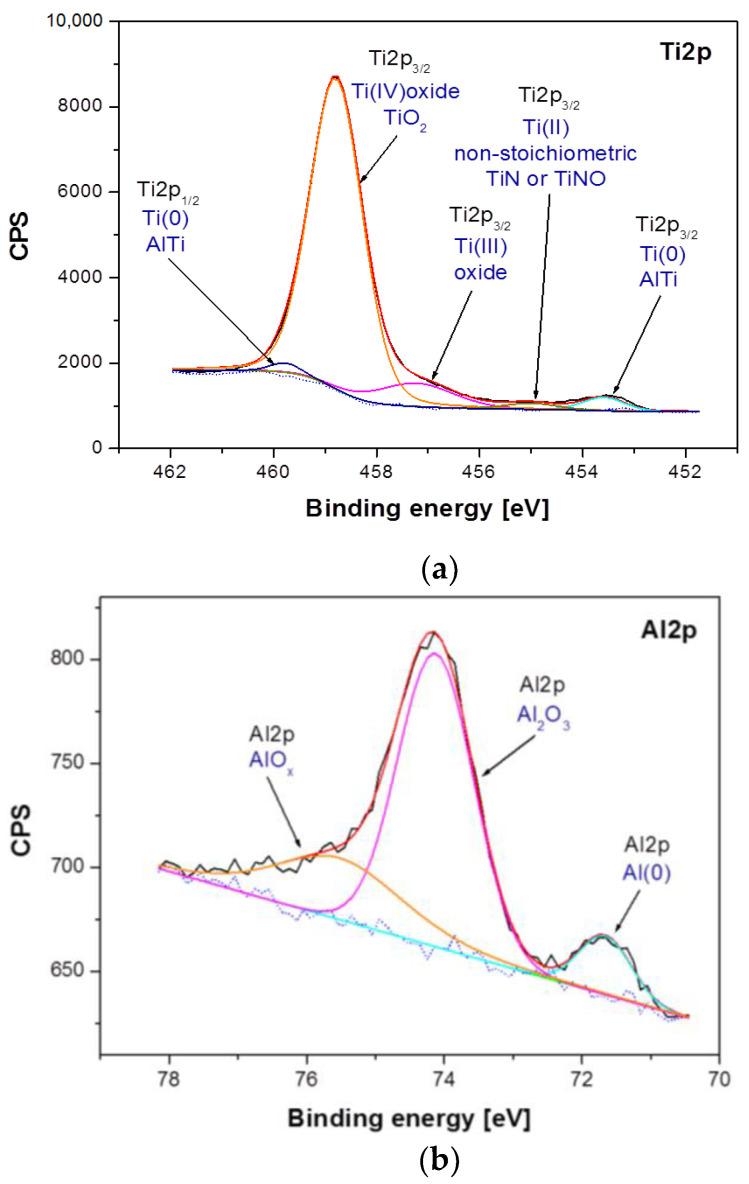

This work concerns the development of a method of functionalization of the surface of the biomedical Ti-6Al-7Nb alloy by producing oxide nanotubes (ONTs) with drug-eluting properties. Shaping of the morphology, microstructure, and thickness of the oxide layer was carried out by anodization in an aqueous solution of 1 M ethylene glycol with the addition of 0.2 M NHF in the voltage range 5-100 V for 15-60 min at room temperature. The characterization of the physicochemical properties of the obtained ONTs was performed using SEM, XPS, and EDAX methods. ONTs have been shown to be composed mainly of TiO, AlO, and NbO. Single-walled ONTs with the largest specific surface area of 600 cm cm can be obtained by anodization at 50 V for 60 min. The mechanism of ONT formation on the Ti-6Al-7Nb alloy was studied in detail. Gentamicin sulfate loaded into ONTs was studied using FTIR, TG, DTA, and DTG methods. Drug release kinetics was determined by UV-Vis spectrophotometry. The obtained ONTs can be proposed for use in modern implantology as carriers for drugs delivered locally in inflammatory conditions.
这项工作涉及通过制备具有药物洗脱特性的氧化物纳米管(ONTs)来实现生物医学Ti-6Al-7Nb合金表面功能化方法的开发。通过在含有0.2 M NHF的1 M乙二醇水溶液中进行阳极氧化,在5-100 V电压范围内于室温下氧化15-60分钟,来对氧化层的形态、微观结构和厚度进行塑造。使用扫描电子显微镜(SEM)、X射线光电子能谱(XPS)和能谱分析(EDAX)方法对所得ONTs的物理化学性质进行表征。结果表明ONTs主要由TiO、AlO和NbO组成。通过在50 V下阳极氧化60分钟可获得比表面积最大为600 cm²/cm³的单壁ONTs。详细研究了Ti-6Al-7Nb合金上ONTs的形成机制。使用傅里叶变换红外光谱(FTIR)、热重分析(TG)、差示热分析(DTA)和微商热重分析(DTG)方法研究了负载在ONTs中的硫酸庆大霉素。通过紫外可见分光光度法测定药物释放动力学。所得ONTs可作为在炎症条件下局部递送药物的载体,用于现代植入学。
