Nowińska Delfina, Osak Patrycja, Maszybrocka Joanna, Łosiewicz Bożena
Institute of Materials Engineering, Faculty of Science and Technology, University of Silesia in Katowice, 41-500 Chorzow, Poland.
J Funct Biomater. 2024 Jun 29;15(7):180. doi: 10.3390/jfb15070180.

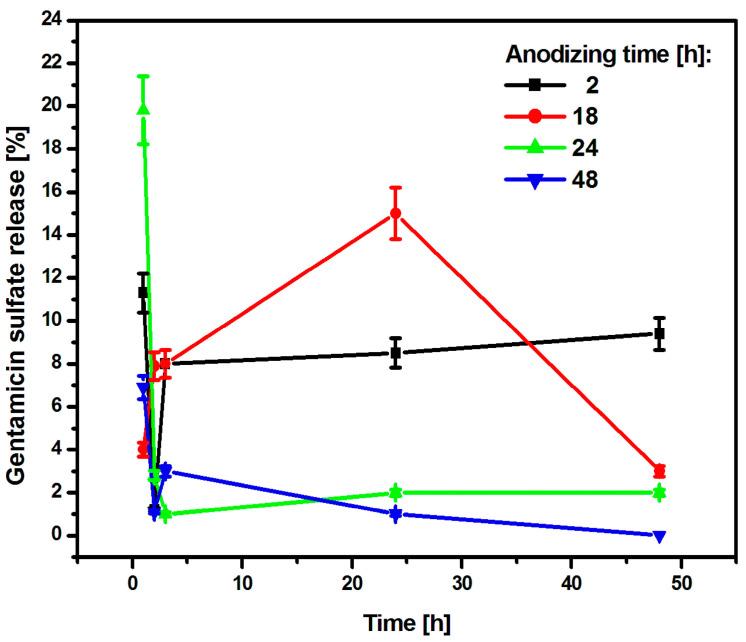

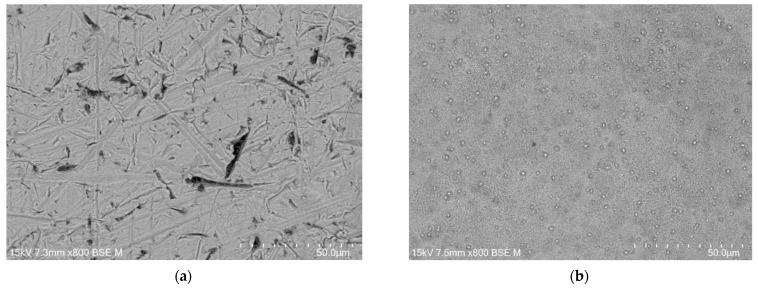

Biomaterials are the basis for the development of medicine because they allow safe contact with a living organism. The aim of this work was to produce innovative oxide layers with a microporous structure on the surface of commercially pure titanium Grade 4 (CpTi G4) and to characterize their properties as drug carriers. The anodization of the CpTi G4 subjected to mechanical grinding and electrochemical polishing was carried out in a solution of 1M ethylene glycol with the addition of 40 g of ammonium fluoride at a voltage of 20 V for 2, 18, 24, and 48 h at room temperature. It was found that the longer the anodization time, the greater the number of pores formed on the CpTi G4 surface as revealed using the FE-SEM method, and the greater the surface roughness determined in profilometric tests. As the anodizing time increases, the amount of the drug in the form of gentamicin sulfate incorporated into the resulting pores decreases. The most favorable drug release kinetics profile determined via UV-VIS absorption spectroscopy was found for the CpTi G4 anodized for 2 h.
生物材料是医学发展的基础,因为它们能够与生物体进行安全接触。这项工作的目的是在商业纯4级钛(CpTi G4)表面制备具有微孔结构的创新氧化层,并将其作为药物载体表征其性能。对经过机械研磨和电化学抛光的CpTi G4进行阳极氧化,在含有40 g氟化铵的1M乙二醇溶液中,于20 V电压下在室温下进行2、18、24和48小时。结果发现,使用FE-SEM方法显示,阳极氧化时间越长,CpTi G4表面形成的孔数量越多,轮廓测量测试确定的表面粗糙度也越大。随着阳极氧化时间的增加,掺入所得孔中的硫酸庆大霉素形式的药物量减少。通过UV-VIS吸收光谱法确定,阳极氧化2小时的CpTi G4具有最有利的药物释放动力学曲线。
