2D/3D Copper-Based Metal-Organic Frameworks for Electrochemical Detection of Hydrogen Peroxide.

作者信息

Guo Xiangjian, Lin Chuyan, Zhang Minjun, Duan Xuewei, Dong Xiangru, Sun Duanping, Pan Jianbin, You Tianhui

机构信息

School of Nursing, Guangdong Provincial Key Laboratory of Pharmaceutical Bioactive Substances, Guangdong Pharmaceutical University, Guangzhou, China.

Center for Drug Research and Development, Guangdong Provincial Key Laboratory of Pharmaceutical Bioactive Substances, Guangdong Pharmaceutical University, Guangzhou, China.

出版信息

Front Chem. 2021 Oct 7;9:743637. doi: 10.3389/fchem.2021.743637. eCollection 2021.


DOI:10.3389/fchem.2021.743637
PMID:34692641
原文链接:https://pmc.ncbi.nlm.nih.gov/articles/PMC8530376/
Abstract

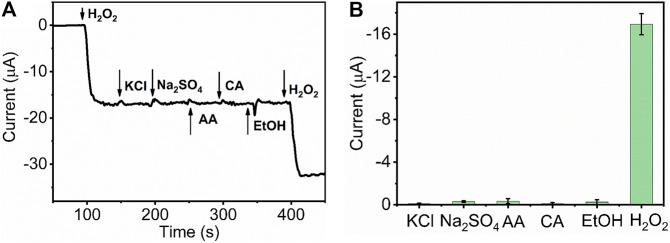

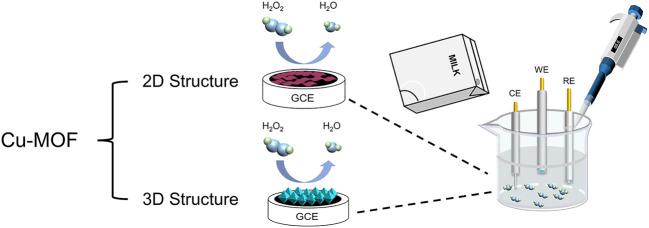

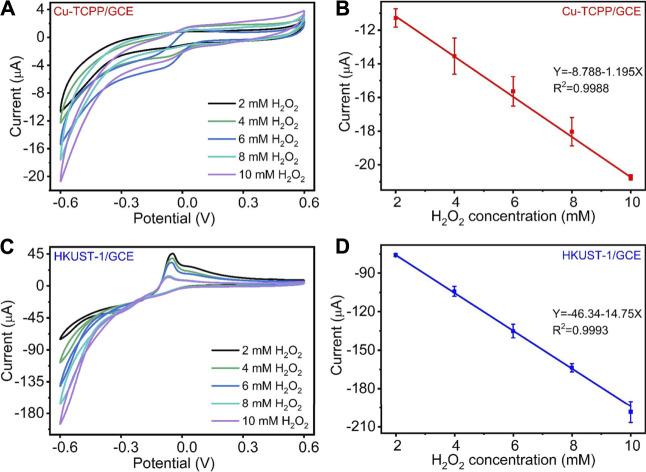

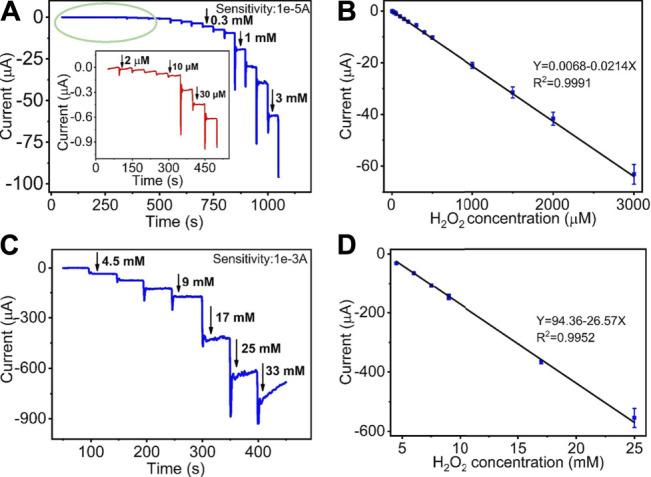

Metal-organic frameworks (MOFs) have been extensively used as modified materials of electrochemical sensors in the food industry and agricultural system. In this work, two kinds of copper-based MOFs (Cu-MOFs) with a two dimensional (2D) sheet-like structure and three dimensional (3D) octahedral structure for HO detection were synthesized and compared. The synthesized 2D and 3D Cu-MOFs were modified on the glassy carbon electrode to fabricate electrochemical sensors, respectively. The sensor with 3D Cu-MOF modification (HKUST-1/GCE) presented better electrocatalytic performance than the 2D Cu-MOF modified sensor in HO reduction. Under optimal conditions, the prepared sensor displayed two wide linear ranges of 2 μM-3 mM and 3-25 mM and a low detection limit of 0.68 μM. In addition, the 3D Cu-MOF sensor exhibited good selectivity and stability. Furthermore, the prepared HKUST-1/GCE was used for the detection of HO in milk samples with a high recovery rate, indicating great potential and applicability for the detection of substances in food samples. This work provides a convenient, practical, and low-cost route for analysis and extends the application range of MOFs in the food industry, agricultural and environmental systems, and even in the medical field.

摘要
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/d215/8530376/aa9b53fff328/fchem-09-743637-g006.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/d215/8530376/7112e422a0bf/fchem-09-743637-g007.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/d215/8530376/8d891d5c51e3/fchem-09-743637-g001.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/d215/8530376/09a9b16b852a/fchem-09-743637-g002.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/d215/8530376/2a5c94271552/fchem-09-743637-g003.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/d215/8530376/2b7764067d2c/fchem-09-743637-g004.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/d215/8530376/34a6bafb842e/fchem-09-743637-g005.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/d215/8530376/aa9b53fff328/fchem-09-743637-g006.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/d215/8530376/7112e422a0bf/fchem-09-743637-g007.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/d215/8530376/8d891d5c51e3/fchem-09-743637-g001.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/d215/8530376/09a9b16b852a/fchem-09-743637-g002.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/d215/8530376/2a5c94271552/fchem-09-743637-g003.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/d215/8530376/2b7764067d2c/fchem-09-743637-g004.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/d215/8530376/34a6bafb842e/fchem-09-743637-g005.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/d215/8530376/aa9b53fff328/fchem-09-743637-g006.jpg
