Baig Umair, Waheed Abdul, Salih Hassan A, Matin Asif, Alshami Ali, Aljundi Isam H
Interdisciplinary Research Center for Membranes and Water Security, King Fahd University of Petroleum and Minerals, Dhahran 31261, Saudi Arabia.
College of Engineering, Khalifa University, Abu Dhabi 127788, United Arab Emirates.
Polymers (Basel). 2021 Oct 28;13(21):3728. doi: 10.3390/polym13213728.

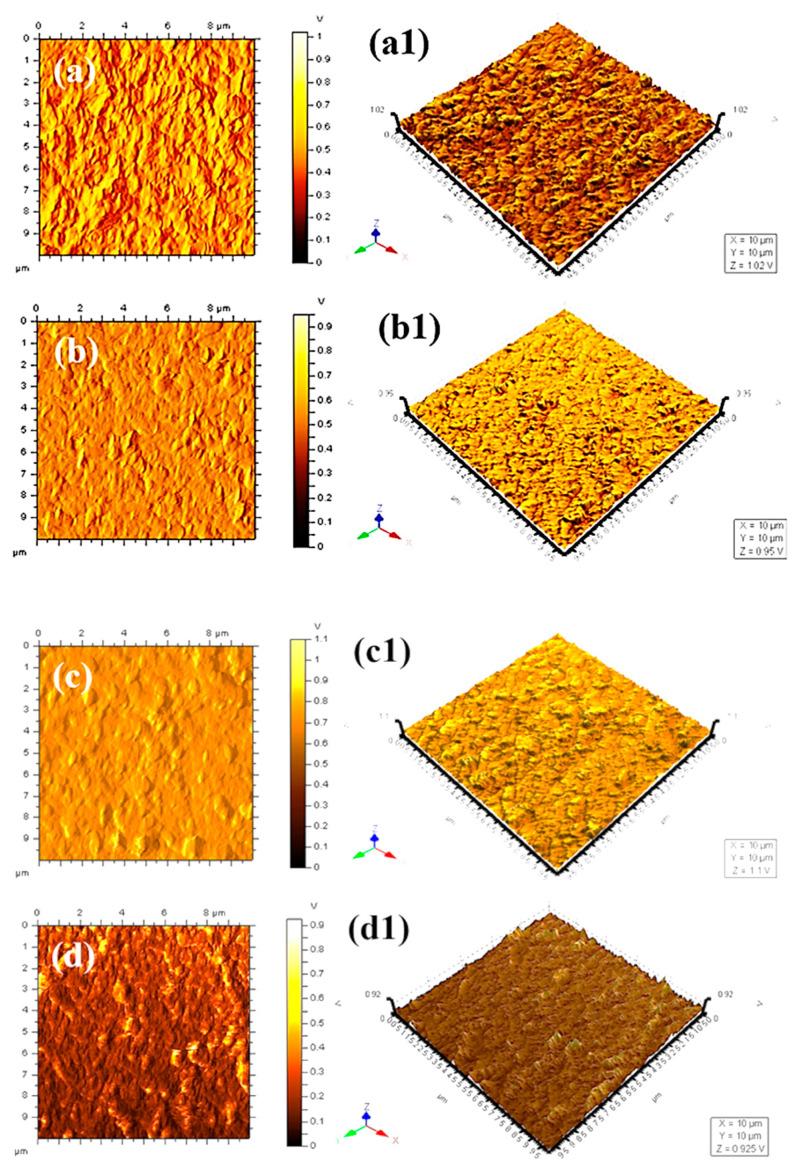

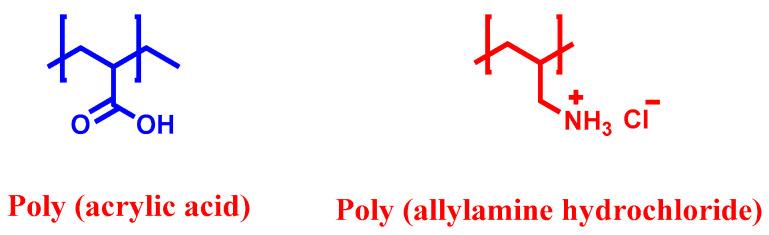

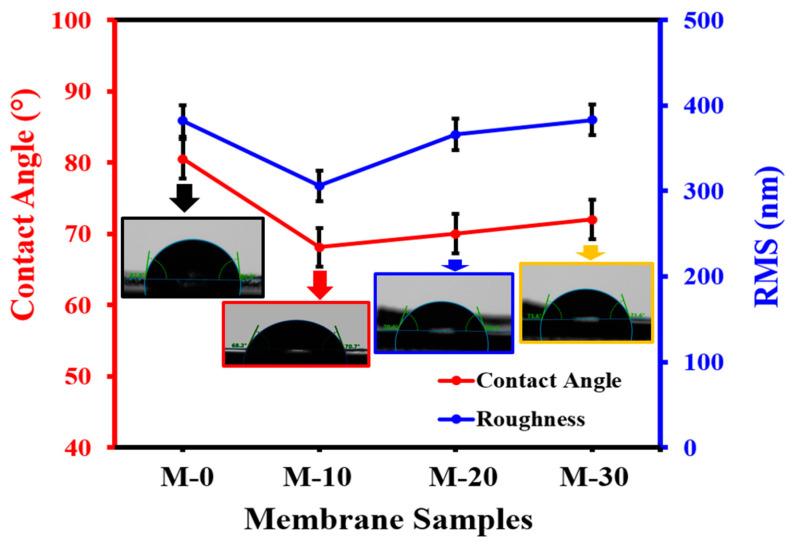

Fouling not only deteriorates the membrane structure but also compromises the quality of the permeate and has deleterious consequences on the membrane operation. In the current study, a commercial thin film composite nanofiltration membrane (NF90) was modified by sequentially depositing oppositely charged polycation (poly(allylamine hydrochloride)) and polyanion (poly(acrylic acid)) polyelectrolytes using the layer-by-layer assembly method. The water contact angle was decreased by ~10° after the coating process, indicating increased hydrophilicity. The surface roughness of the prepared membranes decreased from 380 nm (M-0) to 306 nm (M-10) and 366 nm (M-20). M-10 membrane showed the highest permeate flux of 120 L m h with a salt rejection of >98% for MgSO and NaCl. The fabricated membranes M-20 and M-30 showed 15% improvement in fouling resistance and maintained the initial permeate flux longer than the pristine membrane.
污垢不仅会使膜结构恶化,还会损害渗透液的质量,并对膜的运行产生有害影响。在本研究中,采用层层组装法依次沉积带相反电荷的聚阳离子(聚烯丙胺盐酸盐)和聚阴离子(聚丙烯酸)聚电解质,对商用复合纳滤膜(NF90)进行了改性。涂覆后,水接触角降低了约10°,表明亲水性增加。制备的膜的表面粗糙度从380nm(M-0)降至306nm(M-10)和366nm(M-20)。M-10膜表现出最高的渗透通量,为120L m h,对MgSO和NaCl的脱盐率>98%。制备的M-20和M-30膜的抗污染性能提高了15%,并且比原始膜更长时间地保持初始渗透通量。
