Ji Xinbin, Guo Jing, Guan Fucheng, Liu Yuanfa, Yang Qiang, Zhang Xin, Xu Yi
School of Textile and Material Engineering, Dalian Polytechnic University, Dalian 116034, China.
Gels. 2021 Nov 19;7(4):223. doi: 10.3390/gels7040223.

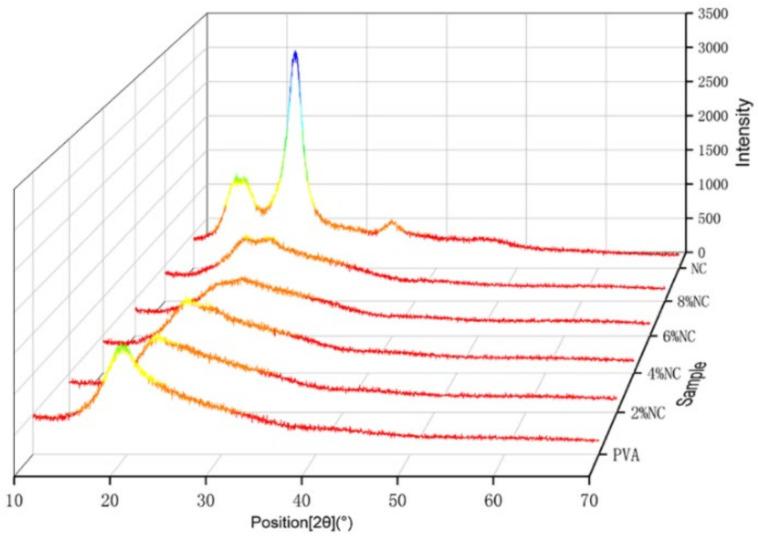

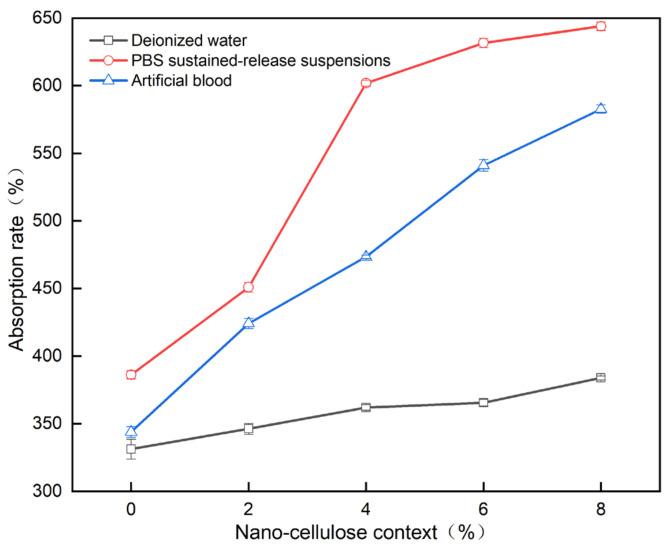

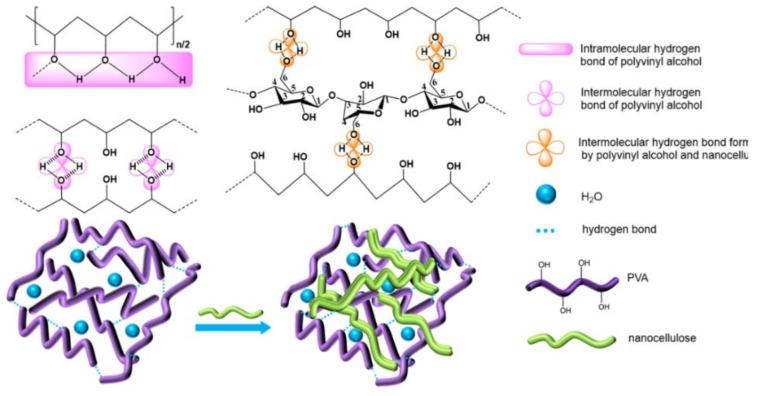

Using polyvinyl alcohol (PVA) and nanocellulose (NC) as raw materials, PVA/NC nanofiber membranes were prepared by electrospinning. The hydrogen bonding, crystalline properties and microscopic appearance of PVA/NC membranes with different NC contents were characterized. The mechanical properties, liquid absorption and cytotoxicity of the nanofiber membrane were evaluated. The results show that the free hydroxyl group of the PVA/NC nanofiber membranes have a maximum value of 9% at a mass fraction of 6% NC. The crystallinity of the PVA/NC nanofiber membranes and the average diameter of the nanofibers decreased and then increased as the NC content increased, with a minimum value of 38.23% and 272.03 nm, respectively, at 6% NC content. At this time, the contact angle was the smallest. The maximum strength of the PVA/NC nanofiber membranes is 75.8% higher than that of the PVA membrane at 2% NC content. With increasing NC content, the absorption of water, PBS sustained-release suspensions and artificial blood by PVA/NC nanofiber membranes increases. Cytotoxicity tests have shown that PVA/NC nanofiber membranes are non-toxic, have good cytocompatibility and are expected to be used in the field of medical dressings.
以聚乙烯醇(PVA)和纳米纤维素(NC)为原料,通过静电纺丝制备了PVA/NC纳米纤维膜。对不同NC含量的PVA/NC膜的氢键、结晶性能和微观形貌进行了表征。评估了纳米纤维膜的力学性能、吸液性能和细胞毒性。结果表明,PVA/NC纳米纤维膜的游离羟基在NC质量分数为6%时具有最大值9%。随着NC含量的增加,PVA/NC纳米纤维膜的结晶度和纳米纤维的平均直径先减小后增大,在NC含量为6%时分别达到最小值38.23%和272.03nm。此时,接触角最小。在NC含量为2%时,PVA/NC纳米纤维膜的最大强度比PVA膜高75.8%。随着NC含量的增加,PVA/NC纳米纤维膜对水、PBS缓释悬浮液和人造血液的吸收增加。细胞毒性测试表明,PVA/NC纳米纤维膜无毒,具有良好的细胞相容性,有望用于医用敷料领域。
