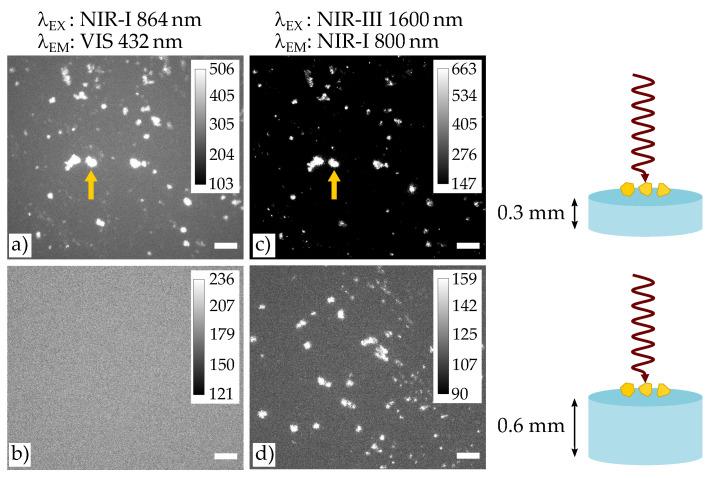

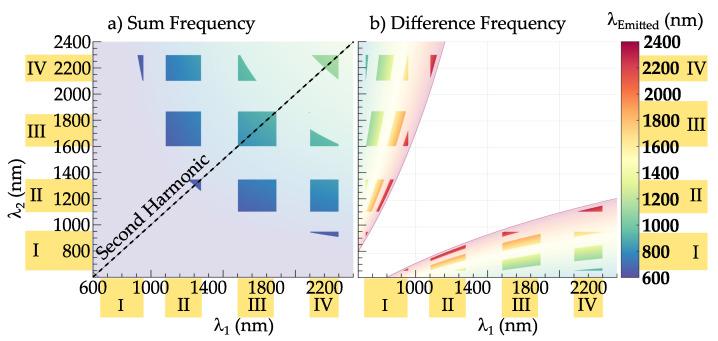

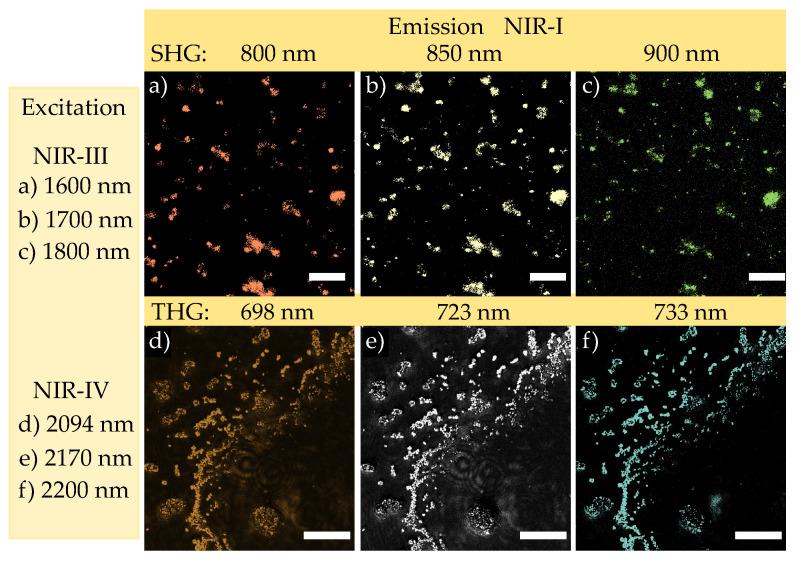

Near-infrared (NIR) marker-based imaging is of growing importance for deep tissue imaging and is based on a considerable reduction of optical losses at large wavelengths. We aim to extend the range of NIR excitation wavelengths particularly to values beyond 1.6 μm in order to profit from the low loss biological windows NIR-III and NIR-IV. We address this task by studying NIR-excitation to NIR-emission conversion and imaging in the range of 1200 up to 2400 nm at the example of harmonic Mg-doped lithium niobate nanoparticles (i) using a nonlinear diffuse femtosecond-pulse reflectometer and (ii) a Tunable hIGh EneRgy (TIGER) widefield microscope. We successfully demonstrate the existence of appropriate excitation/emission configurations in this spectral region taking harmonic generation into account. Moreover, NIR-imaging using the most striking configurations NIR-III to NIR-I, based on second harmonic generation (SHG), and NIR-IV to NIR-I, based on third harmonic generation (THG), is demonstrated with excitation wavelengths from 1.6-1.8 μm and from 2.1-2.2 μm, respectively. The advantages of the approach and the potential to additionally extend the emission range up to 2400 nm, making use of sum frequency generation (SFG) and difference frequency generation (DFG), are discussed.
基于近红外(NIR)标记的成像对于深层组织成像越来越重要,它基于在大波长下光学损耗的显著降低。我们旨在扩展近红外激发波长范围,特别是将其扩展到1.6μm以上的值,以便从近红外III和近红外IV低损耗生物窗口中获益。我们以谐波掺杂镁的铌酸锂纳米颗粒为例,通过研究1200至2400nm范围内的近红外激发到近红外发射转换和成像来解决这一任务:(i)使用非线性漫反射飞秒脉冲反射仪,(ii)使用可调谐高能量(TIGER)宽视场显微镜。考虑到谐波产生,我们成功证明了在该光谱区域中存在适当的激发/发射配置。此外,分别使用1.6 - 1.8μm和2.1 - 2.2μm的激发波长,展示了基于二次谐波产生(SHG)的从近红外III到近红外I以及基于三次谐波产生(THG)的从近红外IV到近红外I的最显著配置的近红外成像。讨论了该方法的优点以及利用和频产生(SFG)和差频产生(DFG)将发射范围进一步扩展至2400nm的潜力。
