通过脉冲激光沉积阻抗谱研究原始固体氧化物燃料电池阴极表面的氧还原途径。

Investigating oxygen reduction pathways on pristine SOFC cathode surfaces by PLD impedance spectroscopy.

作者信息

Siebenhofer Matthäus, Riedl Christoph, Schmid Alexander, Limbeck Andreas, Opitz Alexander Karl, Fleig Jürgen, Kubicek Markus

机构信息

Institute of Chemical Technologies and Analytics, TU Wien Vienna Austria

CEST Centre of Electrochemistry and Surface Technology Wr. Neustadt Austria.

出版信息

J Mater Chem A Mater. 2021 Nov 5;10(5):2305-2319. doi: 10.1039/d1ta07128a. eCollection 2022 Feb 1.

DOI:10.1039/d1ta07128a
PMID:35223039
原文链接:https://pmc.ncbi.nlm.nih.gov/articles/PMC8805794/
Abstract

The oxygen exchange reaction mechanism on truly pristine surfaces of SOFC cathode materials (LaSrCoO = LSC, LaSrFeO = LSF, (LaSr)PtFeO = Pt:LSF, SrTiFeO = STF, PrCeO = PCO and LaSrMnO = LSM) was investigated employing impedance spectroscopy during pulsed laser deposition (i-PLD) over a wide temperature and (O) range. Besides demonstrating the often astonishing catalytic capabilities of the materials, it is possible to discuss the oxygen exchange reaction mechanism based on experiments on clean surfaces unaltered by external degradation processes. All investigated materials with at least moderate ionic conductivity ( all except LSM) exhibit polarization resistances with very similar (O)- and -dependences, mostly differing only in absolute value. In combination with non-equilibrium measurements under polarization and defect chemical model calculations, these results elucidate several aspects of the oxygen exchange reaction mechanism and refine the understanding of the role oxygen vacancies and electronic charge carriers play in the oxygen exchange reaction. It was found that a major part of the effective activation energy of the surface exchange reaction, which is observed during equilibrium measurements, originates from thermally activated charge carrier concentrations. Electrode polarization was therefore used to control defect concentrations and to extract concentration amended activation energies, which prove to be drastically different for oxygen incorporation and evolution (0.26 2.05 eV for LSF).

摘要

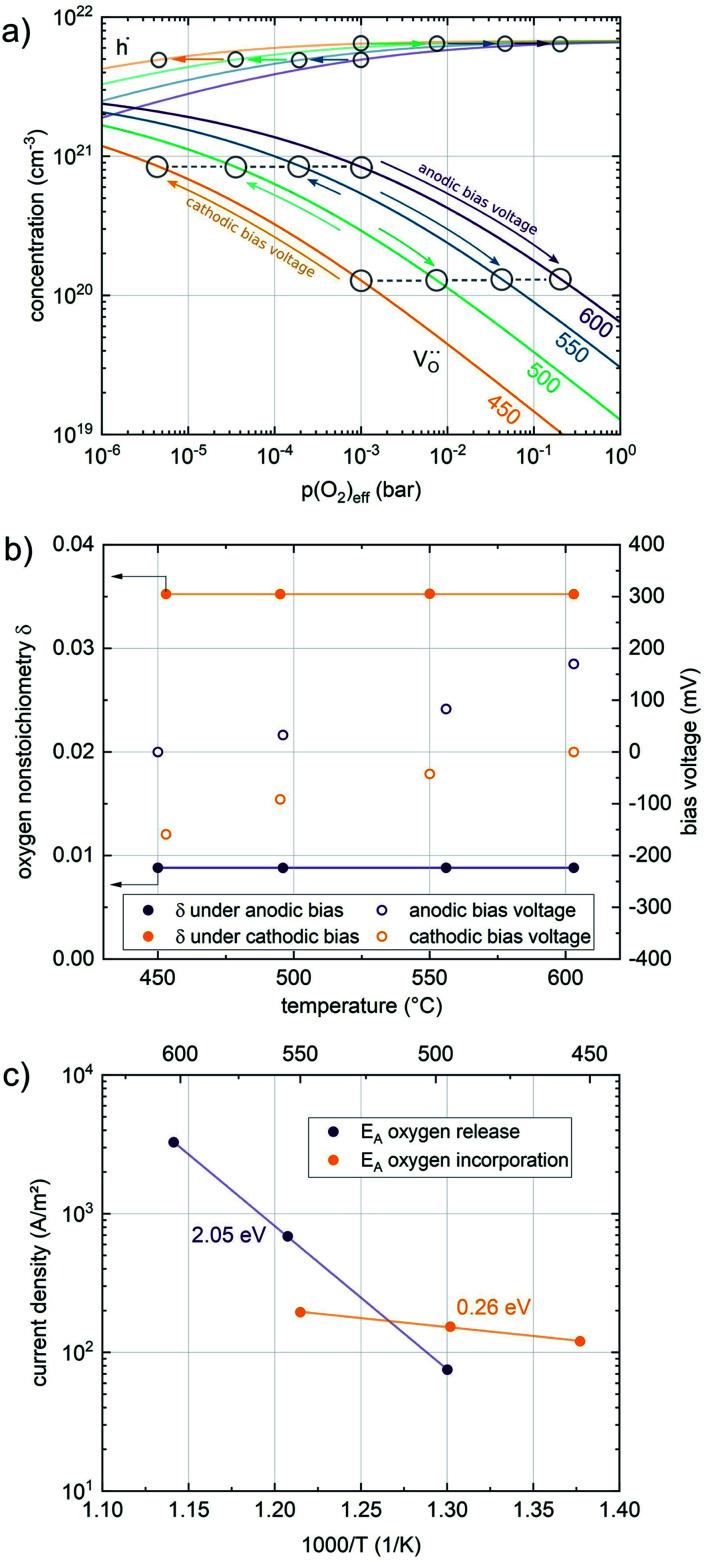

在脉冲激光沉积(i-PLD)过程中,利用阻抗谱在较宽的温度和(氧)范围下研究了固体氧化物燃料电池(SOFC)阴极材料(LaSrCoO = LSC、LaSrFeO = LSF、(LaSr)PtFeO = Pt:LSF、SrTiFeO = STF、PrCeO = PCO和LaSrMnO = LSM)真正原始表面上的氧交换反应机理。除了展示这些材料通常令人惊讶的催化能力外,还能够基于对未受外部降解过程影响的清洁表面的实验来讨论氧交换反应机理。所有研究的具有至少适度离子电导率的材料(除LSM外的所有材料)都表现出具有非常相似的(氧)和(温度)依赖性的极化电阻,主要仅在绝对值上有所不同。结合极化下的非平衡测量和缺陷化学模型计算,这些结果阐明了氧交换反应机理的几个方面,并完善了对氧空位和电子载流子在氧交换反应中所起作用的理解。研究发现,在平衡测量中观察到的表面交换反应的有效活化能的主要部分源自热激活的载流子浓度。因此,利用电极极化来控制缺陷浓度并提取浓度修正的活化能,结果表明氧掺入和析出的活化能差异很大(LSF为0.26至2.05电子伏特)。

https://cdn.ncbi.nlm.nih.gov/pmc/blobs/703e/8805794/54004395760a/d1ta07128a-f10.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/703e/8805794/0725d3382d0a/d1ta07128a-f1.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/703e/8805794/dbbaf651e360/d1ta07128a-f2.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/703e/8805794/2fbb530f6729/d1ta07128a-f3.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/703e/8805794/4ddb0aea0772/d1ta07128a-f4.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/703e/8805794/76d3bb4495e6/d1ta07128a-f5.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/703e/8805794/f6b3798c7151/d1ta07128a-f6.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/703e/8805794/9cdb9571ae31/d1ta07128a-f7.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/703e/8805794/78914d396b98/d1ta07128a-f8.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/703e/8805794/88020ff883b6/d1ta07128a-f9.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/703e/8805794/54004395760a/d1ta07128a-f10.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/703e/8805794/0725d3382d0a/d1ta07128a-f1.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/703e/8805794/dbbaf651e360/d1ta07128a-f2.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/703e/8805794/2fbb530f6729/d1ta07128a-f3.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/703e/8805794/4ddb0aea0772/d1ta07128a-f4.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/703e/8805794/76d3bb4495e6/d1ta07128a-f5.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/703e/8805794/f6b3798c7151/d1ta07128a-f6.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/703e/8805794/9cdb9571ae31/d1ta07128a-f7.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/703e/8805794/78914d396b98/d1ta07128a-f8.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/703e/8805794/88020ff883b6/d1ta07128a-f9.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/703e/8805794/54004395760a/d1ta07128a-f10.jpg
