J Adhes Dent. 2022 Mar 1;24:57-66. doi: 10.3290/j.jad.b2701717.
The present study investigated the influence of simulated intraoral conditions (increased temperature and humidity) on two different surface pretreatment methods to repair a lithium-disilicate glass-ceramic (LDS).
A total of 540 rectangular lithium-disilicate glass-ceramic bars were manufactured (3 x 7 x 9 mm; IPS e.max CAD, Ivoclar Vivadent). Further specimen preparation was performed in an incubator with controlled relative humidity (RH) and temperature to simulate three different environmental settings: laboratory conditions (LC, n = 180, 23°C, 50% RH), rubber-dam conditions (RC, n = 180, 30°C, 50% RH) or oral conditions (OC, n = 180, 32°C, 95 ± 5% RH). One-third of the bars under each condition (n = 60) were grit blasted (GBL) with alumina (35 µm at 1 bar pressure for 10 s and a working distance of 4 ± 1 cm) and primed (60 s, Monobond Plus, Ivoclar Vivadent). Another third (n = 60) were pretreated with a self-etching glass-ceramic primer (MEP, Monobond Etch & Prime, Ivoclar Vivadent). One group without surface pretreatment (n = 60, NoPT) served as a control. All pretreated surfaces were coated with Heliobond (Ivoclar Vivadent). Two bars from the same pretreatment method were luted perpendicular to each other with a resin composite to form a square adhesion area of 9 mm2 (TetricEvo Ceram, Ivoclar Vivadent), and light cured for 20 s on each side (1200 mW/cm2, Bluephase 20i, Ivoclar Vivadent). All specimens were stored for 24 h in distilled water at 37°C. Half of the specimens from each environmental setting and pretreatment method (n = 15) were thermocycled (TC, 5000 cycles, 5/55°C, 30-s dwell time), and tensile bond strength (TBS) testing was performed for all groups using an x-bar rope-assisted set-up. Data were statistically analyzed using two-way ANOVA (a = 0.05) with Bonferroni adjustment.

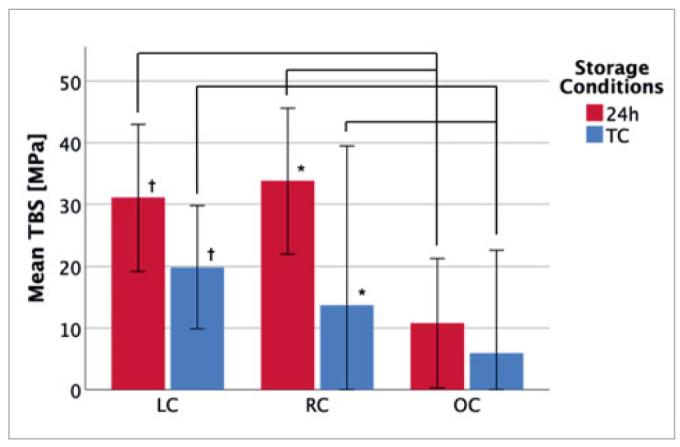

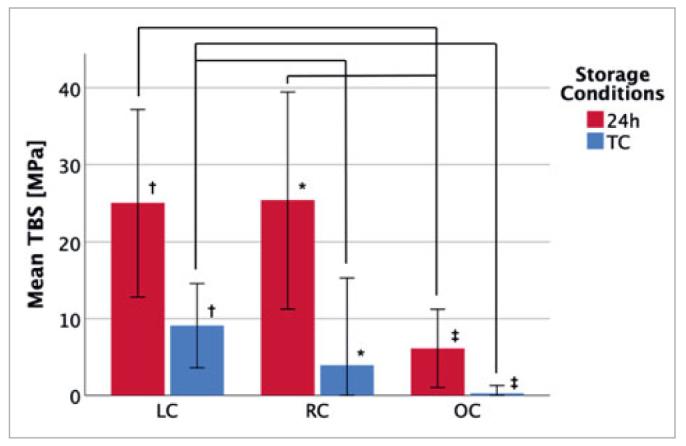

Regardless of the environmental and storage conditions (24 h or TC), MEP showed a significantly higher mean TBS than GBL. A decrease in TBS was recorded in specimens under OC compared to RC and LC for both pretreatment methods independent of the storage condition. No significant difference in mean TBS was found between RC and LC within the MEP pretreatment group for the 24 h stored and thermocycled specimens. For all MEPs and GBLs, TC reduced the mean TBS in all environmental conditions. The NoPT groups showed no adhesion regardless of environmental or storage conditions.
Increased temperature and high humidity significantly reduced TBS. However, MEP was less sensitive to environmental influences than GBL, which makes it a promising candidate for intraoral ceramic repair. These findings suggest that clinical intraoral repair of lithium-disilicate glass-ceramics should be performed using a rubber-dam, primarily when using GBL.
本研究旨在探讨模拟口腔内条件(温度升高和湿度增加)对两种不同表面预处理方法修复锂硅玻璃陶瓷(LDS)的影响。
共制备 540 个矩形锂硅玻璃陶瓷棒(3 x 7 x 9 mm;IPS e.max CAD,Ivoclar Vivadent)。进一步的试件制备在具有受控相对湿度(RH)和温度的孵育器中进行,以模拟三种不同的环境设置:实验室条件(LC,n = 180,23°C,50% RH)、橡皮障条件(RC,n = 180,30°C,50% RH)或口腔条件(OC,n = 180,32°C,95 ± 5% RH)。每个条件下的三分之一(n = 60)的条带进行喷砂(GBL)处理,使用氧化铝(1 巴压力下 35 µm 喷砂 10 秒,工作距离为 4 ± 1 cm)和预涂(60 秒,Monobond Plus,Ivoclar Vivadent)。另三分之一(n = 60)用自酸蚀玻璃陶瓷底漆(MEP,Monobond Etch & Prime,Ivoclar Vivadent)预处理。一组未经表面预处理(n = 60,NoPT)作为对照。所有预处理后的表面均涂有 Heliobond(Ivoclar Vivadent)。从同一预处理方法中选择两个条带彼此垂直地用树脂复合材料粘合并形成 9 mm2 的方形粘合区域(TetricEvo Ceram,Ivoclar Vivadent),每侧用 1200 mW/cm2 的光固化 20 秒(Bluephase 20i,Ivoclar Vivadent)。所有试件在 37°C 的蒸馏水中储存 24 小时。每个环境设置和预处理方法的一半(n = 15)的试件进行热循环(TC,5000 次循环,5/55°C,30 秒停留时间),并使用 x 棒绳索辅助设置对所有组进行拉伸结合强度(TBS)测试。使用双向方差分析(a = 0.05)和 Bonferroni 调整对数据进行统计分析。
无论环境和储存条件(24 小时或 TC)如何,MEP 显示出比 GBL 更高的平均 TBS。两种预处理方法的试件在 OC 下的 TBS 均低于 RC 和 LC,而与储存条件无关。在 24 小时储存和热循环的标本中,MEP 预处理组中 RC 和 LC 之间的 TBS 平均值没有差异。对于所有 MEP 和 GBL,TC 在所有环境条件下均降低了平均 TBS。无论环境或储存条件如何,NoPT 组均未表现出粘结力。
温度升高和高湿度显著降低了 TBS。然而,MEP 对环境影响的敏感性低于 GBL,这使其成为口腔内陶瓷修复的有前途的候选材料。这些发现表明,临床口腔内锂硅玻璃陶瓷的修复应使用橡皮障进行,尤其是在使用 GBL 时。
