Slassi Amine
Istituto Nanoscienze-CNR Via Campi 213a I-41125 Modena Italy
Laboratory for Chemistry of Novel Materials, Université de Mons Place du Parc 20 7000 Mons Belgium.
RSC Adv. 2022 Apr 20;12(19):12068-12077. doi: 10.1039/d2ra00847e. eCollection 2022 Apr 13.

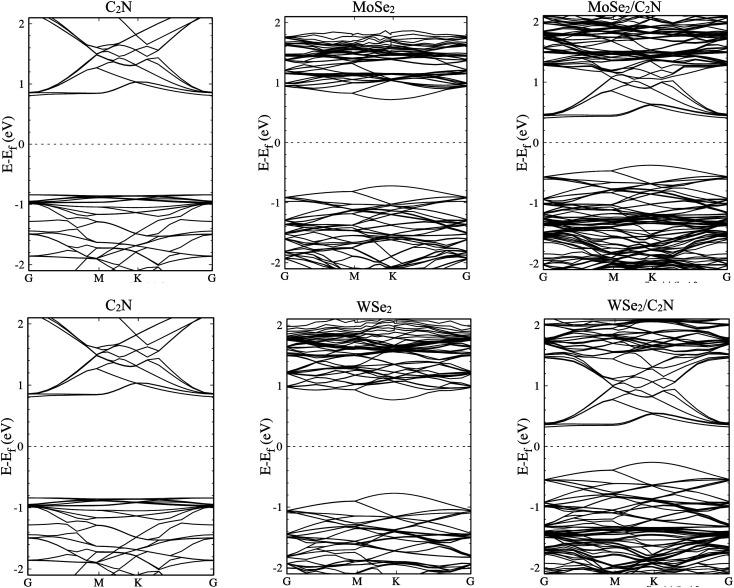

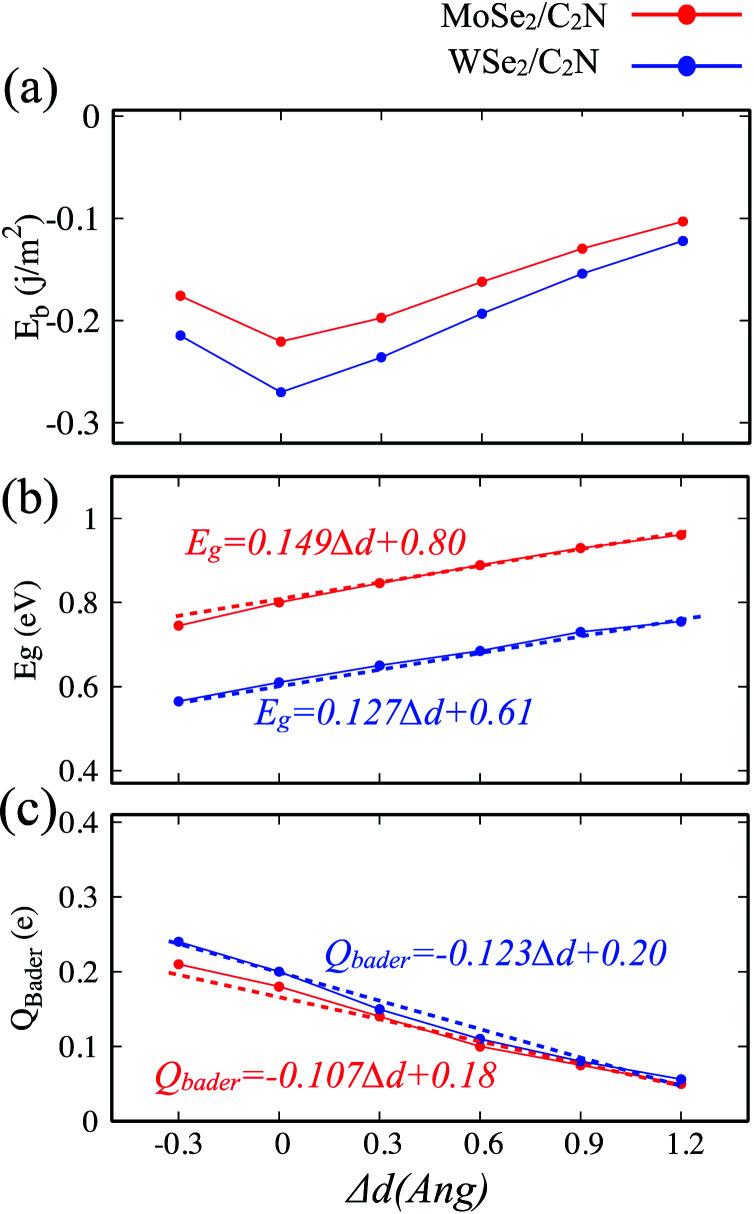

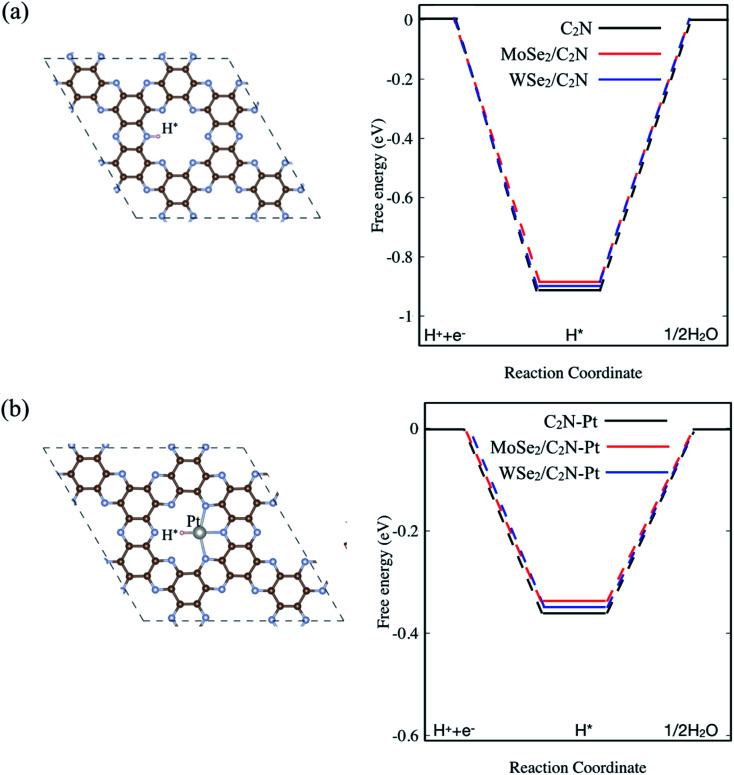

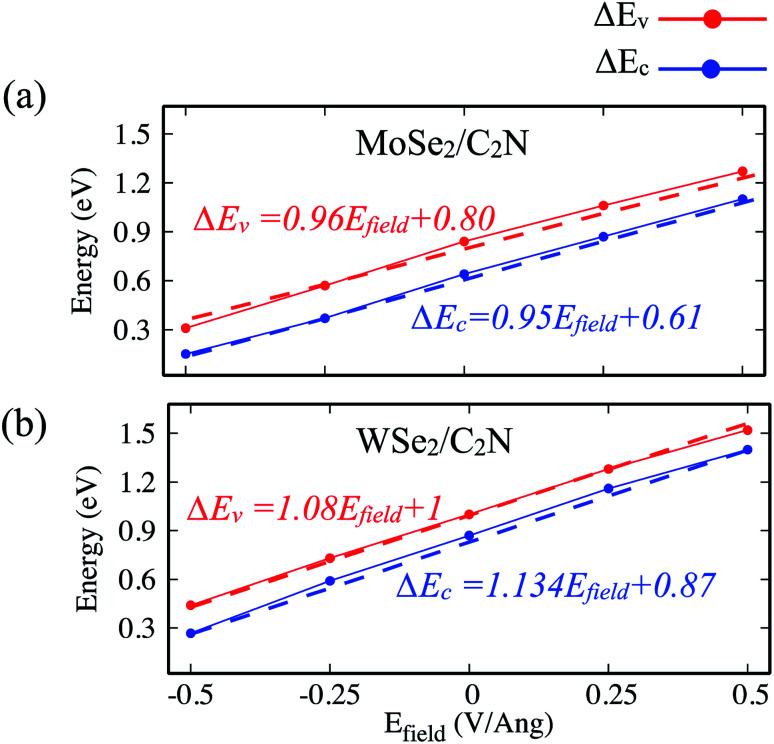

Stacking layered two-dimensional materials in a type-II band alignment block has provided a high-performance method in photocatalytic water-splitting technology. The key parameters in such heterostructure configurations are the valence and conduction band offsets at the interface, which determine the device performance. Here, based on density functional theory calculations, the bandgap and band offsets at CN/MSe (M = Mo, W) interfaces have been engineered. The main findings demonstrate that the CN monolayer interacts with both MoSe and WSe monolayers through weak van der Waals interactions. These heterostructures possess a narrower indirect bandgap and a typical type-II heterostructure feature, being suitable for promoting the separation of photogenerated electron-hole pairs. The calculated Gibbs free energy of hydrogen adsorption demonstrates a reduction in the overpotential, towards the hydrogen evolution reaction, upon forming heterostructures. To further tune the bandgap values and band offsets of heterostructures, the external perturbations are included through a vertical strain and finite electric field. It is found that both the vertical strain and electric field strongly modulate the bandgap values and the magnitude of the band offsets, while the typical type-II band alignment remains preserved. It is noticeable that the band offset magnitudes of the CN/MoSe and CN/WSe heterostructures are more sensitive to an external electric field than to a vertical interlayer strain.
在II型能带排列结构中堆叠二维层状材料,为光催化水分解技术提供了一种高性能方法。这种异质结构配置中的关键参数是界面处的价带和导带偏移,它们决定了器件性能。在此,基于密度泛函理论计算,对CN/MSe(M = Mo、W)界面处的带隙和带偏移进行了调控。主要研究结果表明,CN单层通过弱范德华相互作用与MoSe和WSe单层相互作用。这些异质结构具有更窄的间接带隙和典型的II型异质结构特征,适合促进光生电子 - 空穴对的分离。计算得到的氢吸附吉布斯自由能表明,形成异质结构后,析氢反应的过电位降低。为了进一步调节异质结构的带隙值和带偏移,通过垂直应变和有限电场引入外部扰动。研究发现,垂直应变和电场都强烈调制带隙值和带偏移的大小,同时典型的II型能带排列得以保留。值得注意的是,CN/MoSe和CN/WSe异质结构的带偏移大小对外部电场比对垂直层间应变更敏感。
