Woo Jiseob, Park Heesun, Na Yoonhee, Kim Sunghyun, Choi Won Il, Lee Jin Hyung, Seo Hyemi, Sung Daekyung
Center for Convergence Bioceramic Materials, Convergence R&D Division, Korea Institute of Ceramic Engineering and Technology 202, Osongsaengmyeong 1-ro, Osong-eup, Heungdeok-gu Cheongju Chungbuk 28160 Republic of Korea
School of Chemical & Biomolecular Engineering, Yonsei University 50 Yonsei Ro, Seodaemun Gu Seoul 03722 Republic of Korea.
RSC Adv. 2020 Jan 16;10(5):2998-3004. doi: 10.1039/c9ra09106h. eCollection 2020 Jan 14.

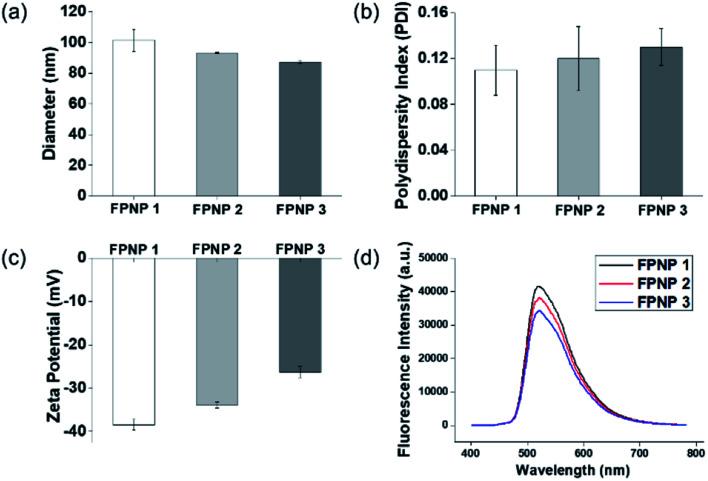

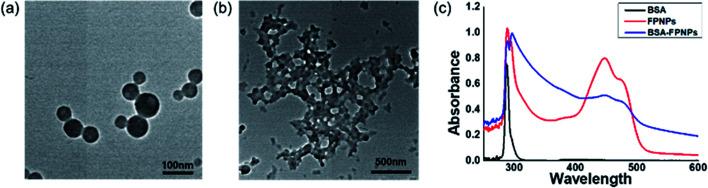

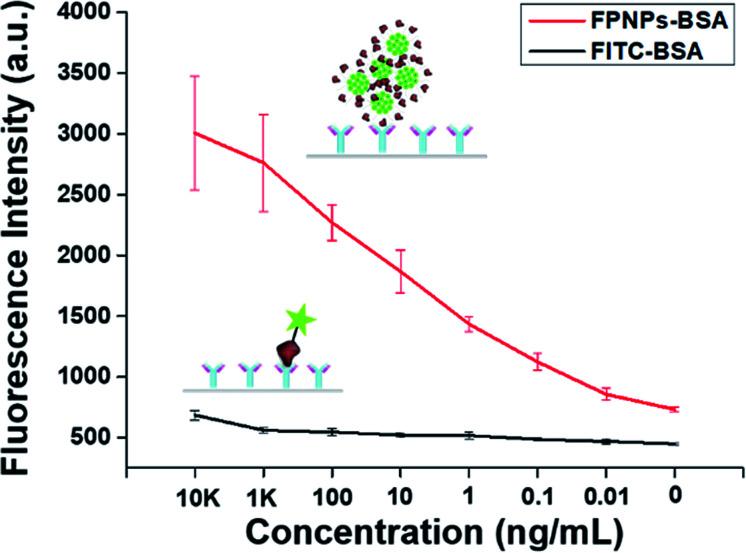

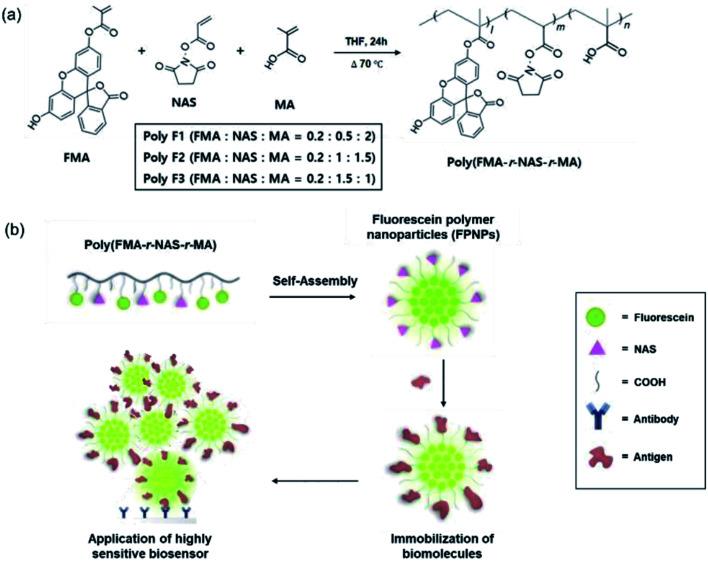

A key aspect of biochip and biosensor preparation is optimization of the optical or electrochemical techniques that combine high sensitivity and specificity. Among them, optical techniques such as the use of fluorescent polymeric nanoparticles have resulted in dramatic progress in the field of diagnostics due to their range of advantages. We herein report a facile approach for the development of novel fluorescein polymeric nanoparticles (FPNPs) with immobilization of specific biomolecules for application in a highly sensitive optical biosensor. A series of three amphiphilic fluorescein polymers (poly(FMA--NAS--MA)), comprising hydrophobic fluorescein -methacrylate (FMA), hydrophilic -acryloxysuccinimide (NAS), and methacrylic acid (MA) monomers were synthesized through radical polymerization. In an aqueous environment, these fluorescein polymers self-assembled into spherical shaped nanoparticles with a well-defined particle size, narrow particle size distribution, and enhanced fluorescence properties. The bio-immobilization properties of the FPNPs were also tunable by control of the activated -hydroxysuccinimide ester group in the polymer series. Furthermore, the fluorescence sensitivity of bovine serum albumin detection by the FPNPs indicates that the limit of detection and sensitivity were improved compared to conventional fluorescence dye-labelled proteins. These novel FPNPs therefore represent a suitable technology for disease diagnosis and biomarker detection to ultimately improve the sensitivity of existing analytical methodologies in a facile and cost-effective manner.
生物芯片和生物传感器制备的一个关键方面是优化结合了高灵敏度和特异性的光学或电化学技术。其中,诸如使用荧光聚合物纳米颗粒的光学技术,因其具有一系列优点,已在诊断领域取得了显著进展。我们在此报告一种简便的方法,用于开发新型荧光素聚合物纳米颗粒(FPNPs),该颗粒固定有特定生物分子,可应用于高灵敏度光学生物传感器。通过自由基聚合合成了一系列三种两亲性荧光素聚合物(聚(FMA-NAS-MA)),它们由疏水性荧光素甲基丙烯酸酯(FMA)、亲水性丙烯酰氧基琥珀酰亚胺(NAS)和甲基丙烯酸(MA)单体组成。在水性环境中,这些荧光素聚合物自组装成球形纳米颗粒,具有明确的粒径、窄的粒径分布和增强的荧光特性。FPNPs的生物固定特性也可通过控制聚合物系列中的活性羟基琥珀酰亚胺酯基团来调节。此外,FPNPs对牛血清白蛋白检测的荧光灵敏度表明,与传统荧光染料标记的蛋白质相比,检测限和灵敏度均有所提高。因此,这些新型FPNPs代表了一种合适的技术,可用于疾病诊断和生物标志物检测,最终以简便且经济高效的方式提高现有分析方法的灵敏度。
