利用声化学技术制备用于WZTO薄膜晶体管的氧化物前驱体溶液的快速简便方法。

Rapid and facile method to prepare oxide precursor solution by using sonochemistry technology for WZTO thin film transistors.

作者信息

Yuan Yanyu, Peng Cong, Yang Shibo, Xu Meng, Feng Jiayu, Li Xifeng, Zhang Jianhua

机构信息

Key Laboratory of Advanced Display and System Applications of Ministry of Education, Shanghai University Shanghai 200072 P. R. China

出版信息

RSC Adv. 2020 Jul 28;10(47):28186-28192. doi: 10.1039/d0ra05245k. eCollection 2020 Jul 27.

Abstract

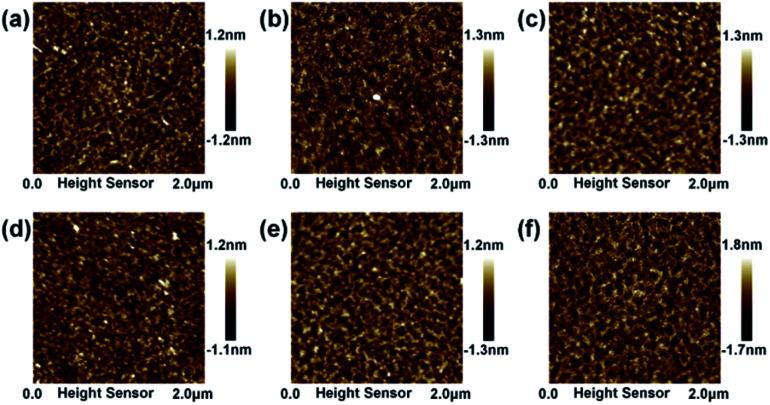

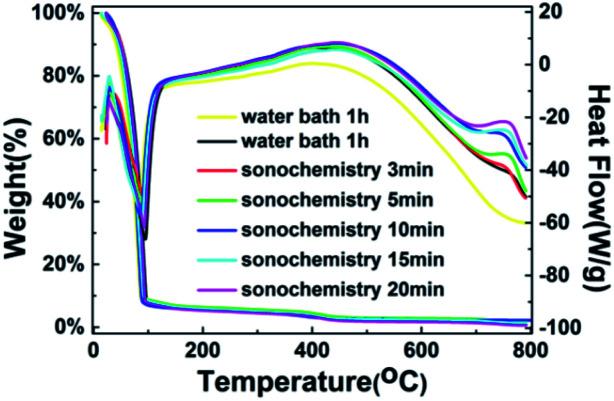

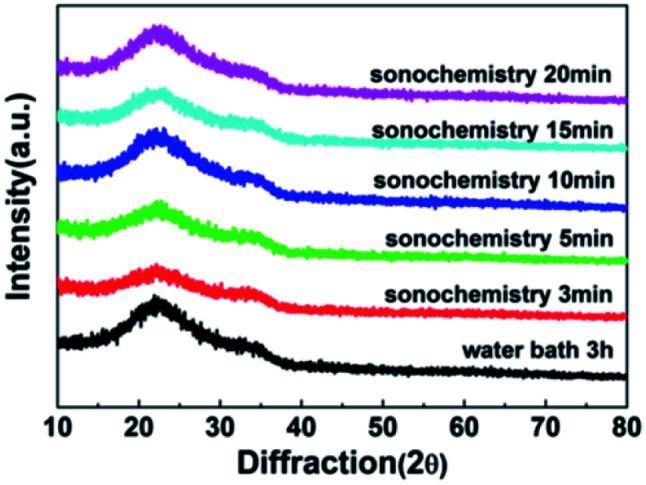

In this paper, a rapid and facile method of preparing metal-oxide semiconductor precursor solution using sonochemistry technology is proposed. Compared with the traditional method (water bath above 60 °C for several hours), the efficiency of preparing solution is improved, because sonochemical reaction is found to accelerate the dissolution of solutes and the agitation of solution. The color comparison and thermal gravimetric and differential scanning calorimetry of solution confirme the formation of W-doped zinc tin oxide (WZTO) precursor solution with good performance. The effects of sonochemical reactions on the film structure, surface morphology, optical properties and chemical composition of WZTO thin films are analyzed by atomic force microscopy, X-ray diffraction, UV visible spectrum and X-ray photoelectron spectroscopy. The results show that the film has a smooth surface, an amorphous structure, a high transmittance and more M-O bonding. Hence, a rapid process of preparing WZTO solution (sonochemical treatment for 10 min) and fabricate TFT with high electron mobility (2.7 cm V s) is established, while the corresponding mobility of the traditional method is 1.2 cm V s. The results show that the sonochemical reaction can improve the efficiency of preparing solution by 1800% and it is a fast and efficient method for preparing precursor solutions.

摘要

本文提出了一种利用声化学技术制备金属氧化物半导体前驱体溶液的快速简便方法。与传统方法(60℃以上水浴数小时)相比,溶液制备效率得到提高,因为发现声化学反应能加速溶质溶解和溶液搅拌。溶液的颜色对比以及热重分析和差示扫描量热法证实了具有良好性能的W掺杂氧化锌锡(WZTO)前驱体溶液的形成。通过原子力显微镜、X射线衍射、紫外可见光谱和X射线光电子能谱分析了声化学反应对WZTO薄膜的结构、表面形貌、光学性能和化学成分的影响。结果表明,该薄膜表面光滑,具有非晶结构,透光率高且有更多的M-O键。因此,建立了一种快速制备WZTO溶液的方法(声化学处理10分钟)并制备出具有高电子迁移率(2.7 cm V s)的薄膜晶体管,而传统方法对应的迁移率为1.2 cm V s。结果表明,声化学反应可将溶液制备效率提高1800%,是一种快速高效的前驱体溶液制备方法。

https://cdn.ncbi.nlm.nih.gov/pmc/blobs/b095/9055696/1cdc548f9dde/d0ra05245k-f1.jpg
