Zhang Chao, Li Meng, Lu Hai-Yan, Chen Chuan-Feng
University of Chinese Academy of Sciences Beijing 100049 China
Beijing National Laboratory for Molecular Sciences, CAS Key Laboratory of Molecular Recognition and Function, Institute of Chemistry, Chinese Academy of Sciences Beijing 100090 China
RSC Adv. 2018 Jan 3;8(2):1014-1021. doi: 10.1039/c7ra12652b. eCollection 2018 Jan 2.

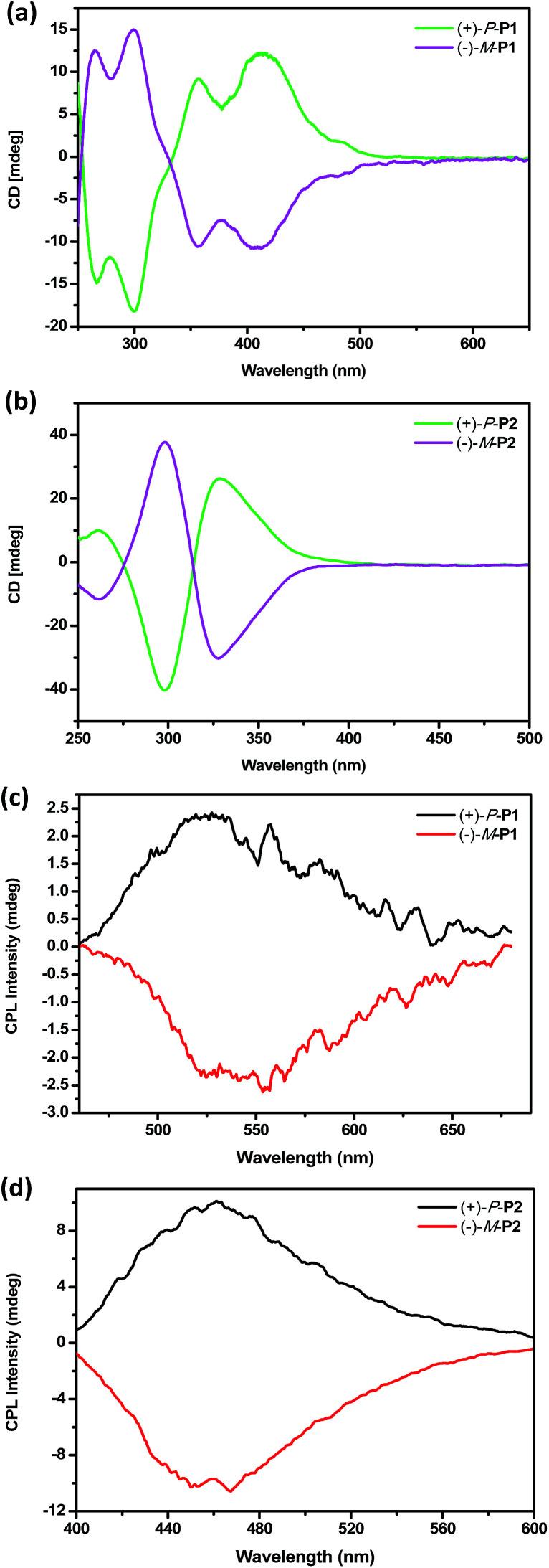

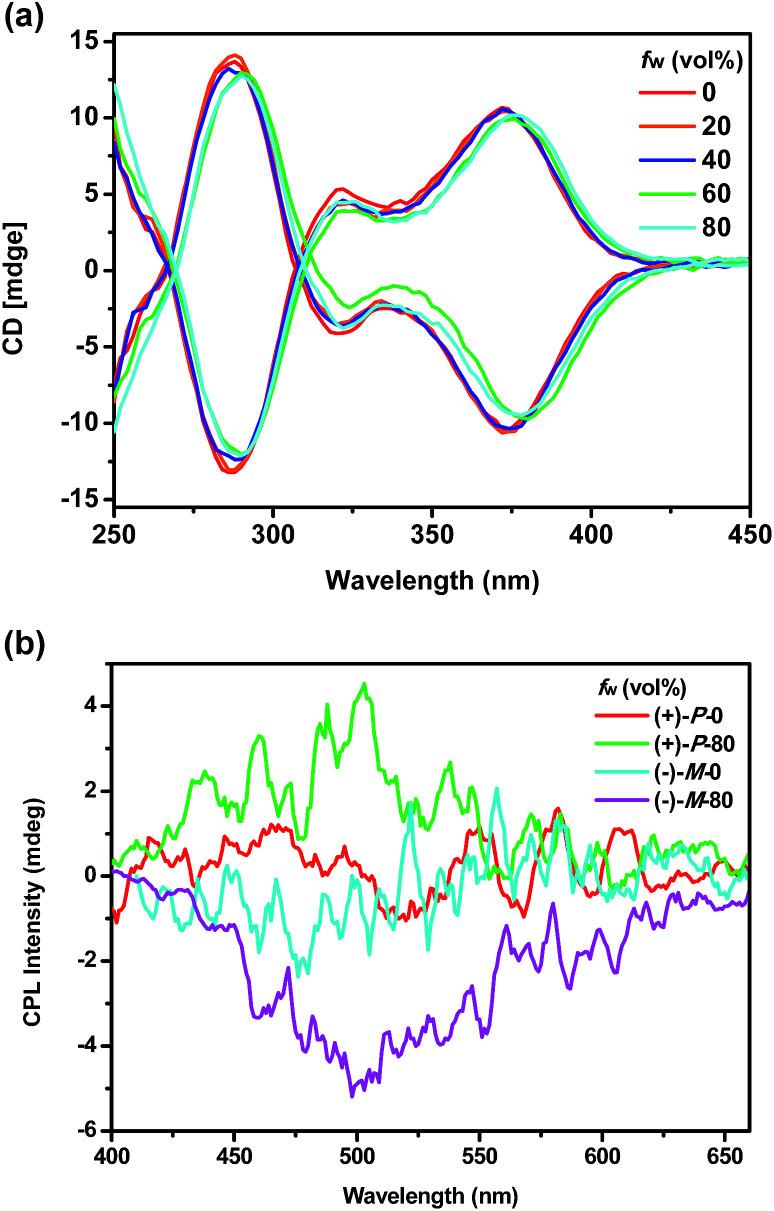

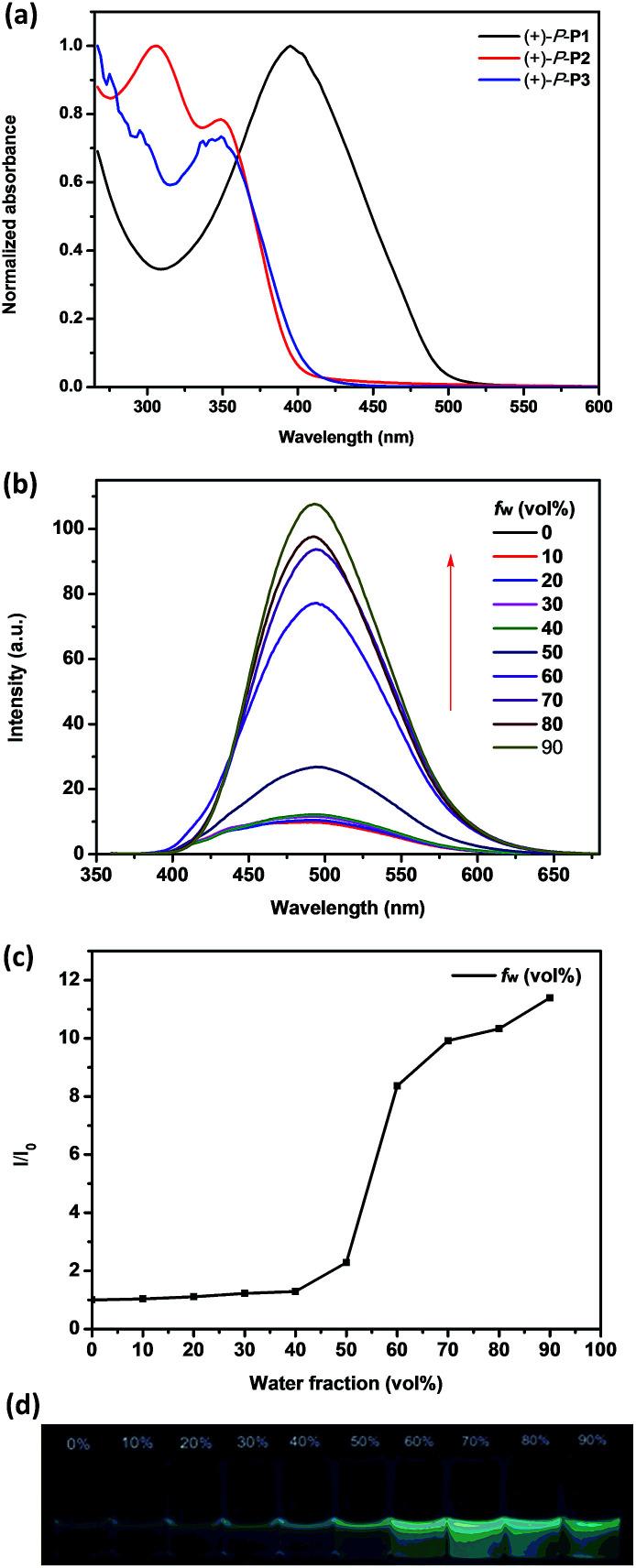

By Suzuki coupling reaction, three pairs of chiral conjugated polymers with optically stable helical aromatic ester subunits as the main-chain were designed and synthesized. Polymers (+)-P-P1 and (-)-M-P1, (+)-P-P2 and (-)-M-P2 showed strong fluorescence emission, strong mirror image CD and circularly polarized luminescence (CPL) signals in THF. For polymers (+)-P-P3 and (-)-M-P3, containing the tetraphenylethene (TPE) moiety, they not only showed obvious aggregation induced enhancement emission (AIEE), but also exhibited mirror image CD signals and aggregation-induced enhancement CPL signals in THF-water mixtures. Moreover, (+)-P-P3 and (-)-M-P3 could also form chiral nanoparticles by solvent evaporation induced self-assembly. Interestingly, it was further found that the size of the nanoparticles could be controlled by the changing of THF/water ratio, and their CPL properties were also shown.
通过铃木偶联反应,设计并合成了三对手性共轭聚合物,其主链为具有光学稳定性的螺旋芳族酯亚基。聚合物(+)-P-P1和(-)-M-P1、(+)-P-P2和(-)-M-P2在四氢呋喃中表现出强烈的荧光发射、强烈的镜像圆二色性(CD)和圆偏振发光(CPL)信号。对于含有四苯乙烯(TPE)部分的聚合物(+)-P-P3和(-)-M-P3,它们不仅表现出明显的聚集诱导增强发射(AIEE),而且在四氢呋喃-水混合物中表现出镜像CD信号和聚集诱导增强CPL信号。此外,(+)-P-P3和(-)-M-P3还可以通过溶剂蒸发诱导自组装形成手性纳米颗粒。有趣的是,进一步发现纳米颗粒的尺寸可以通过改变四氢呋喃/水的比例来控制,并且还展示了它们的CPL性质。
