Chiu Nan-Fu, Yang Cheng-Du
Laboratory of Nano-photonics and Biosensors, Institute of Electro-Optical Science and Technology, National Taiwan Normal University Taipei 11677 Taiwan
RSC Adv. 2018 Mar 23;8(21):11557-11565. doi: 10.1039/c7ra13594g. eCollection 2018 Mar 21.

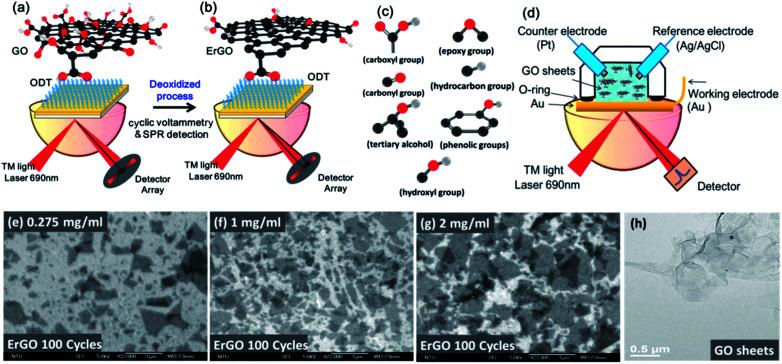

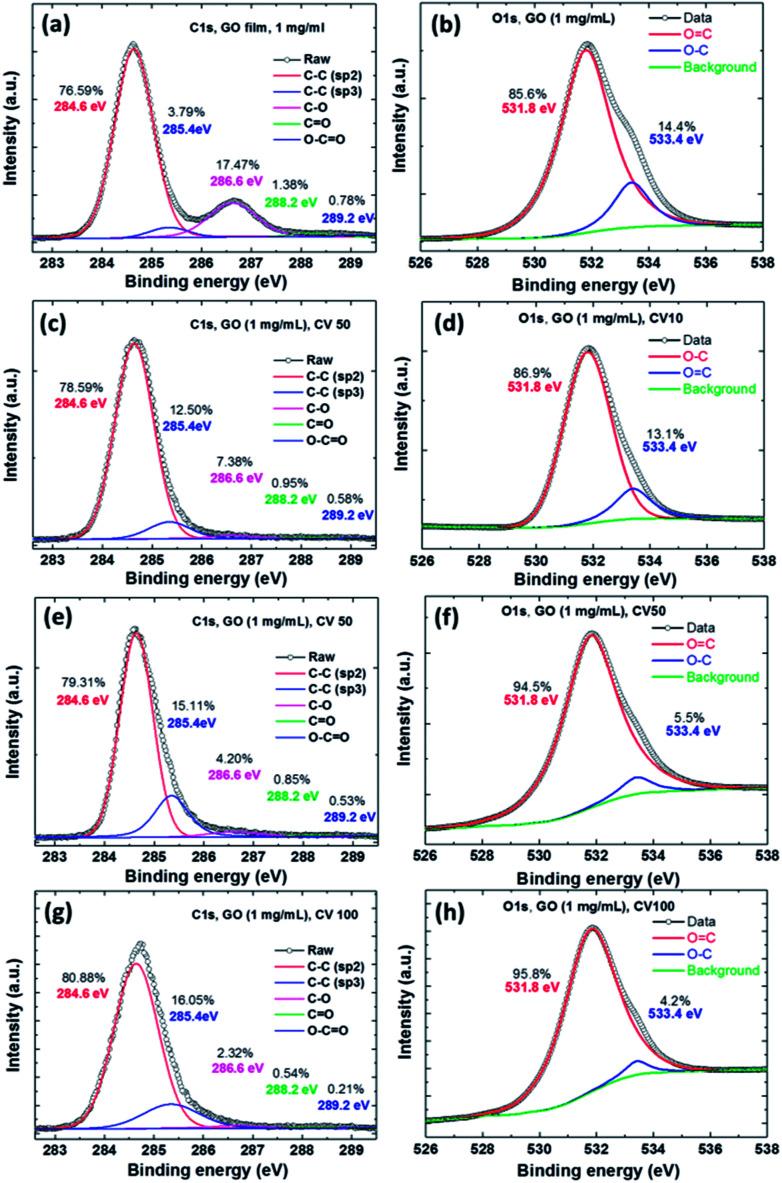

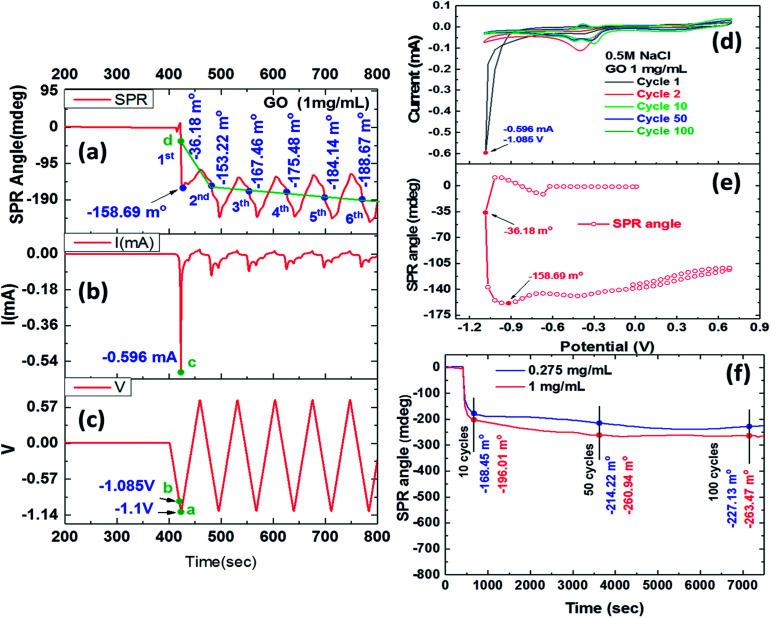

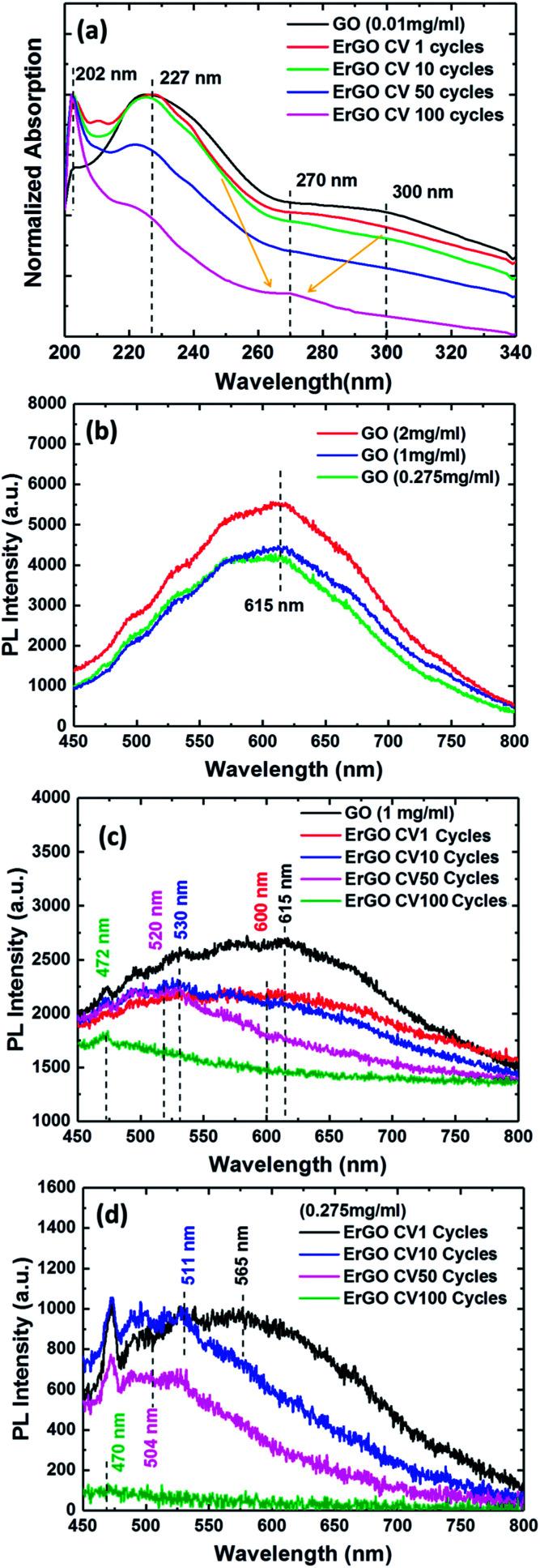

The development of a stepwise deoxidized process and real-time monitoring of the large-scale mass production of electrochemically reduced graphene oxide (ErGO) sheets are important issues. In this study, we have shown that graphene oxide (GO) sheets can be quantitatively monitored in real-time and controlled in a stepwise manner using electrochemical-surface plasmon resonance (EC-SPR), due to the fact that the oxygen functional groups can be tuned through a deoxidization procedure. The SPR signal can then be detected quantitatively in real-time by changes in the dielectric constant of the GO film during the EC stepwise removal of oxygen functional groups. This is because the refractive index of the GO sheets is affected by the oxygen-containing groups, so that monitoring the SPR angle shift provides a real-time measure of changes in the concentration of the residual oxygen functional groups of the GO sheets. In this study, we demonstrated GO and 100 CV cycles of ErGO at X-ray photoelectron spectroscopy carbon-to-oxygen ratios of 4.1 and 31.57 respectively, and Raman spectra of the D/G intensity ratio of 0.85 and 1.89, respectively. The 100 CV cycles of ErGO at SPR angle shifts were -227.13 mdeg for GO at a concentration of 0.275 mg ml, and -263.47 mdeg for GO at a concentration of 1 mg ml. The photoluminescence emission bands of the GO and the CV 100 cycles of ErGO were 615 to 470 nm. These results may be beneficial for future studies on GO fluorescence characteristics in the field of optoelectronic and biosensor applications.
逐步脱氧工艺的发展以及对大规模批量生产电化学还原氧化石墨烯(ErGO)片材的实时监测是重要问题。在本研究中,我们已经表明,由于可以通过脱氧程序调节氧官能团,因此可以使用电化学表面等离子体共振(EC-SPR)对氧化石墨烯(GO)片材进行实时定量监测并逐步控制。然后,在EC逐步去除氧官能团的过程中,通过GO膜介电常数的变化可以实时定量检测SPR信号。这是因为GO片材的折射率受含氧基团影响,因此监测SPR角位移可实时测量GO片材残余氧官能团浓度的变化。在本研究中,我们分别在X射线光电子能谱碳氧比为4.1和31.57时展示了GO和100次循环伏安法的ErGO,以及拉曼光谱中D/G强度比分别为0.85和1.89。对于浓度为0.
