不同粒径交联滑石复合材料的结构、力学及燃烧性能表征

Structural, Mechanical and Flammability Characterization of Crosslinked Talc Composites with Different Particle Sizes.

作者信息

Podkościelna Beata, Klepka Tomasz, Podkościelny Przemysław, Bocho-Janiszewska Anita, Wasilewski Tomasz, Klapiszewski Łukasz

机构信息

Department of Polymer Chemistry, Institute of Chemical Science, Faculty of Chemistry, Maria Curie-Skłodowska University, M. Curie-Skłodowska Sq. 3, PL-20031 Lublin, Poland.

Department of Technology and Polymer Processing, Faculty of Mechanical Engineering, Lublin University of Technology, Nadbystrzycka 36, PL-20618 Lublin, Poland.

出版信息

Materials (Basel). 2022 Jun 25;15(13):4492. doi: 10.3390/ma15134492.

Abstract

The influence of filler particle size on selected physicochemical and functional properties of polymer composites was analyzed. The following test was carried out for the system: the bisphenol A glycerolate (1 glycerol/phenol) di-methacrylate (BPA.DM) was subjected to UV-polymerization in bulk with N-vinyl-2-pyrrolidone (NVP) as a polymer matrix and talc with particle sizes ranging from ≤8 to 710 µm as a non-toxic and cheap mineral filler. An effective method of preparing cross-linked polymeric composites with talc was developed. The obtained samples were subjected to structural analysis and the thermal, mechanical and flammability properties were assessed. It has been empirically confirmed that the talc particles are incorporated into the composite structure. However, with increasing particle size, the composite heterogeneity increases. In the case of the developed method of sample production, homogeneous systems were obtained for particles in the ≤8-250 µm range. The surface roughness of the samples correlates directly with the size of talc particles. The value of Young's modulus during the axial stretching of samples decreases with the increasing size of talc particles. For the composites containing ≤15 and ≤35 µm talc particles, the highest values were obtained under bending conditions. There was no equivocal effect of particle size on the composites' swelling in water. The addition of talc reduces the flame height and intensity slightly. The biggest difference was obtained for the composites containing relatively large talc particles. It was proved that the selected properties of polymer composites can be controlled depending on the size of the talc particles.

摘要

分析了填料粒径对聚合物复合材料某些物理化学和功能特性的影响。对该体系进行了如下测试:以双酚A甘油酸酯(1甘油/苯酚)二甲基丙烯酸酯(BPA.DM)为原料,以N-乙烯基-2-吡咯烷酮(NVP)为聚合物基体,以粒径范围为≤8至710 µm的滑石粉为无毒且廉价的矿物填料,进行本体紫外光聚合。开发了一种制备含滑石粉交联聚合物复合材料的有效方法。对所得样品进行结构分析,并评估其热性能、机械性能和燃烧性能。经验证滑石颗粒已融入复合材料结构中。然而,随着粒径的增加,复合材料的不均匀性增加。在所开发的样品制备方法中,对于粒径在≤8-250 µm范围内的颗粒,可获得均匀体系。样品的表面粗糙度与滑石颗粒的大小直接相关。样品轴向拉伸时的杨氏模量值随滑石颗粒尺寸的增加而降低。对于含有≤15 µm和≤35 µm滑石颗粒的复合材料,在弯曲条件下可获得最高值。粒径对复合材料在水中的溶胀没有明确的影响。滑石粉的添加会使火焰高度和强度略有降低。对于含有相对较大滑石颗粒的复合材料,差异最大。结果表明,聚合物复合材料的某些特性可根据滑石颗粒的大小进行控制。

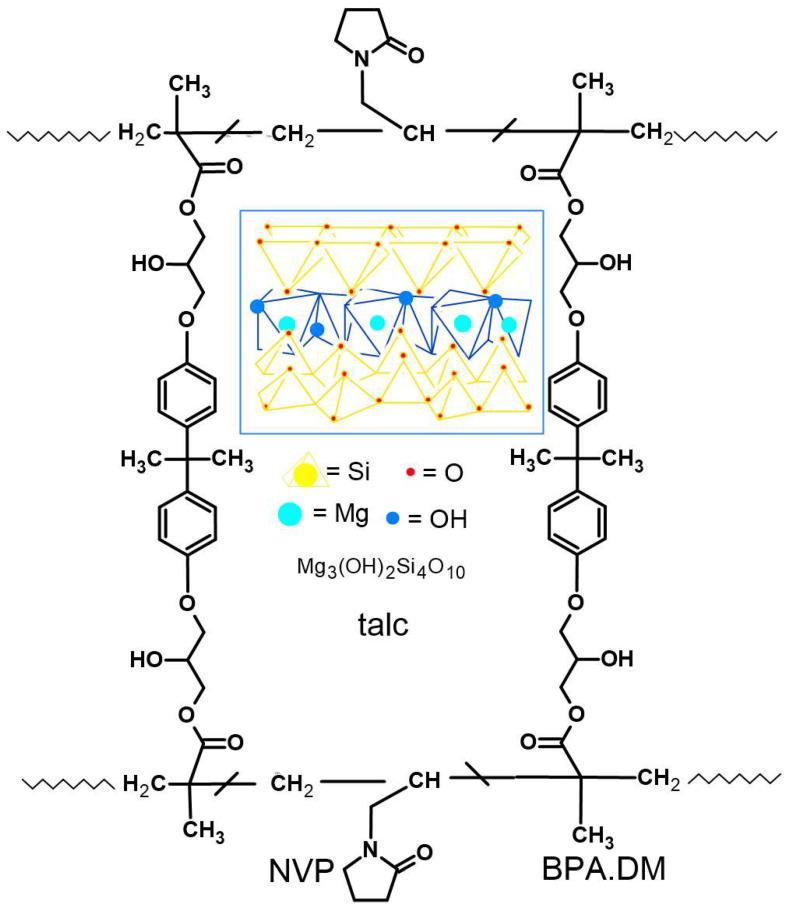

https://cdn.ncbi.nlm.nih.gov/pmc/blobs/e007/9267937/dc320761b0d5/materials-15-04492-g001.jpg
