Effect of Fabrication Method on the Thermo Mechanical and Electrical Properties of Graphene Doped PVDF Nanocomposites.

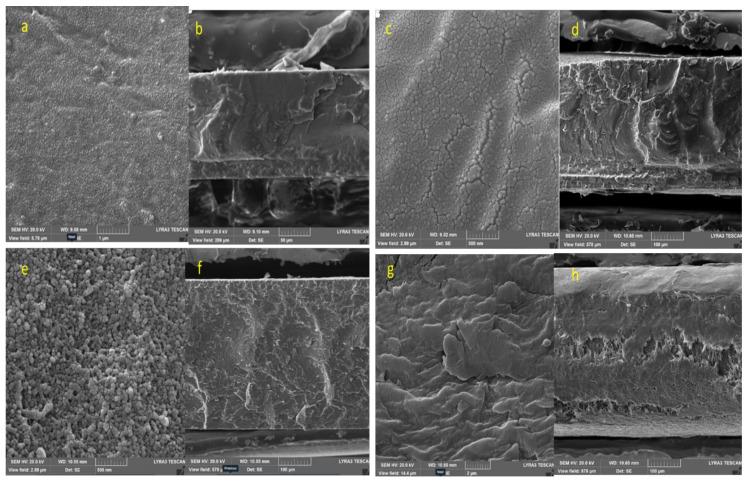

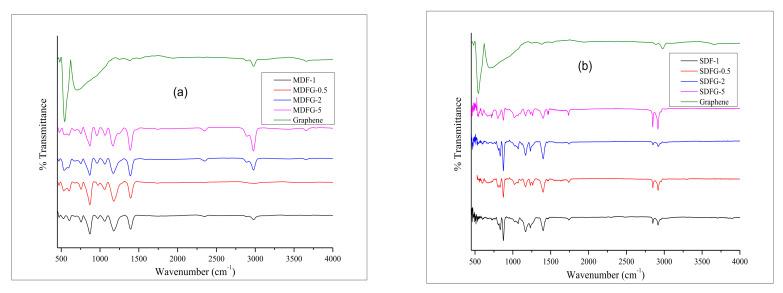

Nanocomposites of poly (vinylidene fluoride) PVDF with graphene nanoflakes (GNF) were prepared using two different routes. Initially, a mix-melting method was used to prepare composites, and their thermal and mechanical properties were evaluated to choose the better method for future experiment and properties investigation. Then, nanocomposite films were prepared by a simple solution-casting technique using a PVDF/graphene solution. In both cases, the amount of graphene was varied to observe and to compare their thermal and mechanical properties. The addition of graphene to the PVDF matrix resulted in changes in the crystallization and melting behaviors as confirmed by DSC analyses. Increasing the graphene content led to improved thermal stability of the PVDF nanocomposites prepared using both methods. Improvements in mechanical properties by the addition of graphene were also observed. Better performance was observed by the nanocomposites prepared by a mix-melting technique suggesting better dispersion and strong interface bonding between PVDF and graphene particles. Thermal and electrical conductivity were measured and compared. Microstructure and morphology were characterized using FTIR, XRD, and SEM analyses.
