Park Jongseong, Lee Seonyong, Lee Tae Hyung, Kim Changyeon, Jun Sang Eon, Baek Ji Hyun, Kim Jae Young, Lee Mi Gyoung, Ahn Sang Hyun, Jang Ho Won
Department of Materials Science and Engineering, Research Institute of Advanced Materials, Seoul National University, Gwanak-ro 1, Seoul, 08826, Republic of Korea.
Department of Electrical and Computer Engineering, University of Toronto, 35 St. George Street, Toronto, ON, M5S 1A4, Canada.
Nano Converg. 2022 Jul 19;9(1):33. doi: 10.1186/s40580-022-00323-9.

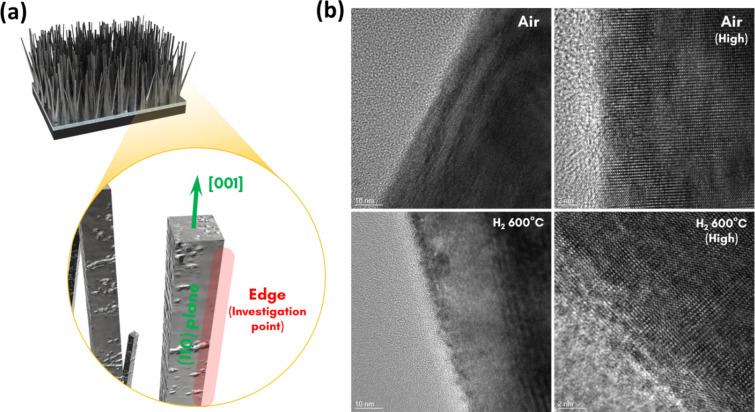

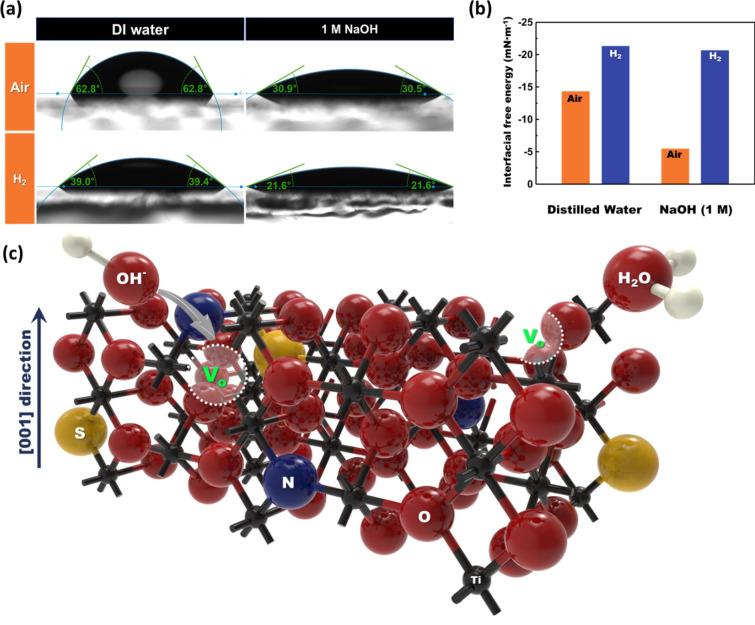

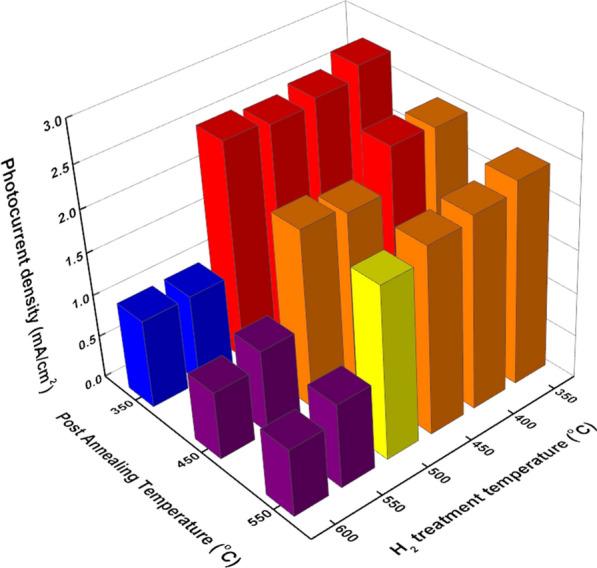

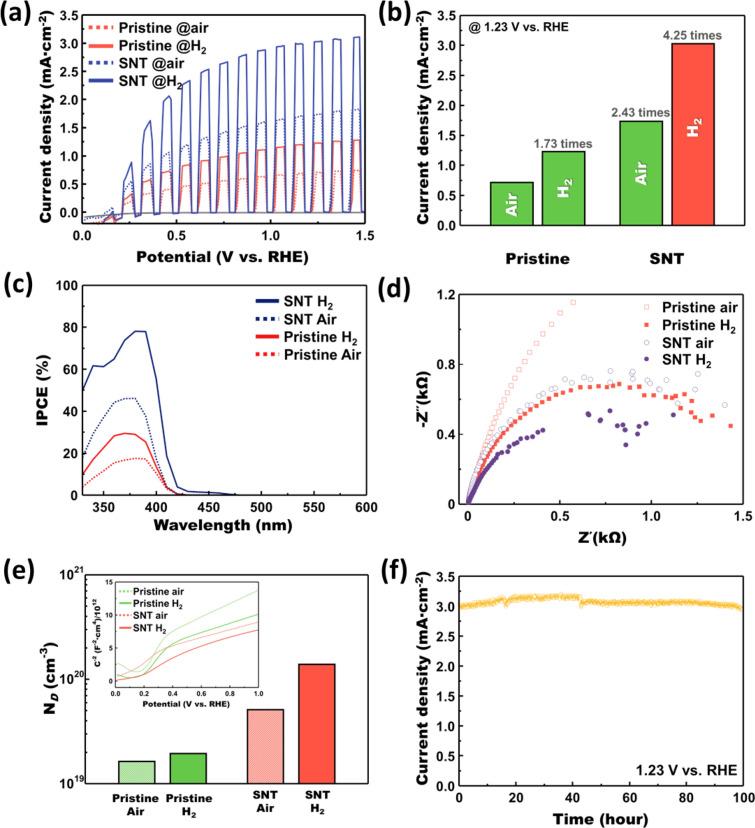

Dedications to achieve the highly efficient metal oxide semiconductor for the photoelectrochemical water splitting system have been persisted to utilize the TiO as the promising photoanode material. Herein, we report notable progress for nanostructured TiO photoanodes using facile sequential one-pot hydrothermal synthesis and annealing in hydrogen. A photocurrent density of 3.04 mA·cm at 1.23 V vs. reversible hydrogen electrode was achieved in TiO nanorod arrays annealed in hydrogen ambient, which is approximately 4.25 times higher than that of pristine TiO annealed in ambient air. 79.2% of incident photon-to-current efficiency at 380 nm wavelength demonstrates the prominence of the material at the near-UV spectral range region and 100 h chronoamperometric test exhibits the stability of the photoanode. Detailed studies regarding crystallinity, bandgap, and elemental analysis provide the importance of the optimized annealing condition for the TiO-based photoanodes. Water contact angle measurement displays the effect of hydrogen annealing on the hydrophilicity of the material. This study clearly demonstrates the marked improvement using the optimized hydrogen annealing, providing the promising methodologies for eco-friendly mass production of water splitting photoelectrodes.
为实现用于光电化学水分解系统的高效金属氧化物半导体,人们一直致力于将TiO用作有前景的光阳极材料。在此,我们报道了使用简便的连续一锅水热合成法和氢气退火制备纳米结构TiO光阳极所取得的显著进展。在氢气环境中退火的TiO纳米棒阵列在相对于可逆氢电极1.23 V时实现了3.04 mA·cm的光电流密度,这比在环境空气中退火的原始TiO的光电流密度高出约4.25倍。在380 nm波长下79.2%的入射光子到电流效率证明了该材料在近紫外光谱范围区域的卓越性能,100小时计时电流测试展示了光阳极的稳定性。关于结晶度、带隙和元素分析的详细研究揭示了优化退火条件对TiO基光阳极的重要性。水接触角测量显示了氢气退火对材料亲水性的影响。这项研究清楚地证明了使用优化的氢气退火取得的显著改进,为水分解光电极的环保大规模生产提供了有前景的方法。
