Department of Chemistry, Rice University, Houston, TX 77005.
Laboratory for Nanophotonics, Rice University, Houston, TX 77005.
Proc Natl Acad Sci U S A. 2022 Jul 19;119(29):e2123527119. doi: 10.1073/pnas.2123527119. Epub 2022 Jul 11.

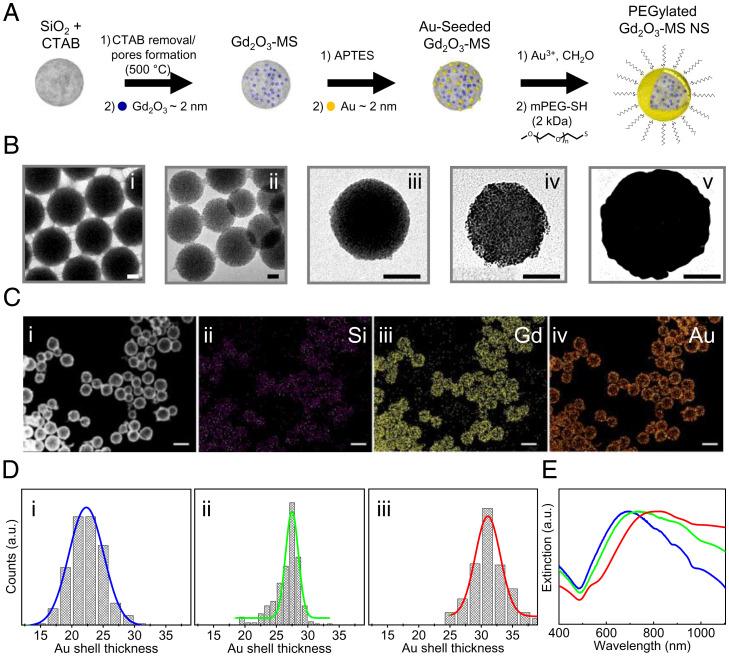

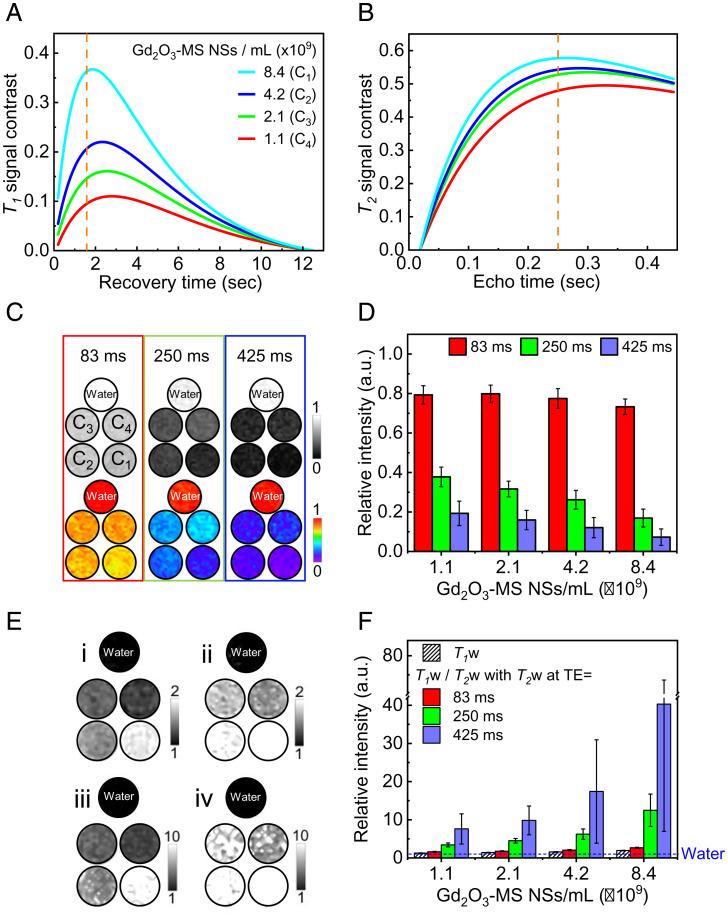

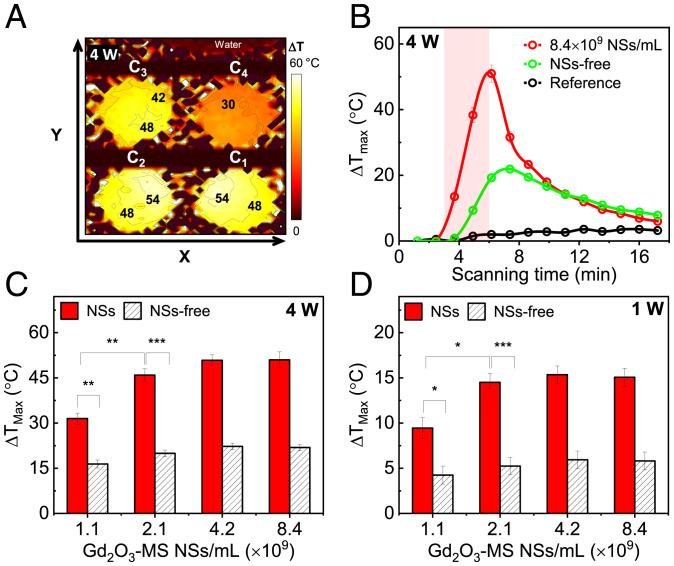

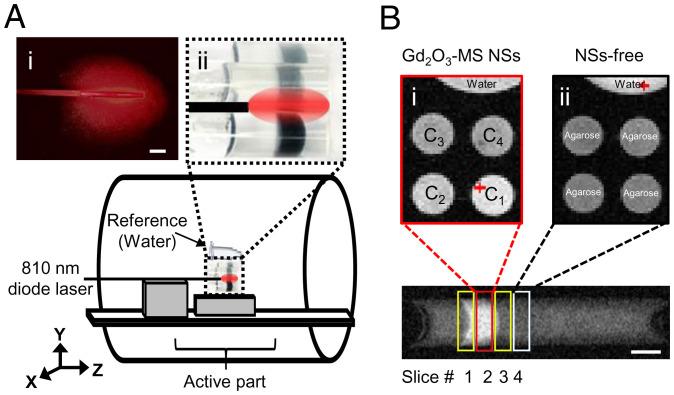

A promising clinical trial utilizing gold-silica core-shell nanostructures coated with polyethylene glycol (PEG) has been reported for near-infrared (NIR) photothermal therapy (PTT) of prostate cancer. The next critical step for PTT is the visualization of therapeutically relevant nanoshell (NS) concentrations at the tumor site. Here we report the synthesis of PEGylated GdO-mesoporous silica/gold core/shell NSs (GdO-MS NSs) with NIR photothermal properties that also supply sufficient MRI contrast to be visualized at therapeutic doses (≥10 NSs per milliliter). The nanoparticles have relaxivities more than three times larger than those of conventional contrast agents, requiring less concentration of Gd to observe an equivalent signal enhancement in -weighted MR images. Furthermore, GdO-MS NS nanoparticles have relaxivities comparable to those of existing contrast agents, observed in agarose phantoms. This highly unusual combination of simultaneous and contrast allows for MRI enhancement through different approaches. As a rudimentary example, we demonstrate / ratio MR images with sixfold contrast signal enhancement relative to its MRI and induced temperature increases of 20 to 55 °C under clinical illumination conditions. These nanoparticles facilitate MRI-guided PTT while providing real-time temperature feedback through thermal MRI mapping.
一项利用金-硅核壳纳米结构并涂覆聚乙二醇(PEG)的有前景的临床试验已经被报道,用于前列腺癌的近红外(NIR)光热治疗(PTT)。PTT 的下一个关键步骤是在肿瘤部位可视化治疗相关的纳米壳(NS)浓度。在这里,我们报告了具有 NIR 光热性能的 PEG 化 GdO-介孔硅/金核/壳 NS(GdO-MS NS)的合成,其还提供了足够的 MRI 对比,以在治疗剂量(≥每毫升 10 个 NS)下可视化。这些纳米颗粒的弛豫率比传统的造影剂大 3 倍以上,因此需要更少的 Gd 浓度来观察到加权 MR 图像中等效的信号增强。此外,在琼脂糖幻影中观察到 GdO-MS NS 纳米颗粒的弛豫率与现有造影剂相当。这种同时具有 和 造影的非常不寻常的组合允许通过不同的方法进行 MRI 增强。作为一个初步的例子,我们展示了 / 比值 MR 图像,与 MRI 相比具有六倍的对比信号增强,并在临床光照条件下诱导 20 至 55°C 的温度升高。这些纳米颗粒促进了 MRI 引导的 PTT,同时通过热 MRI 映射提供实时温度反馈。
