理解基于CuO的催化剂上的Cu/Cu位点在CO电还原制乙醇中的作用——一项密度泛函理论研究。
Understanding the role of Cu/Cu sites at CuO based catalysts in ethanol production from CO electroreduction -A DFT study.
作者信息
Sun Liren, Han Jinyu, Ge Qingfeng, Zhu Xinli, Wang Hua
机构信息
Collaborative Innovation Center of Chemical Science and Engineering, Key Laboratory for Green Chemical Technology, School of Chemical Engineering and Technology, Tianjin University Tianjin 300350 China
Department of Chemistry and Biochemistry, Southern Illinois University Carbondale Illinois 62901 USA.
出版信息
RSC Adv. 2022 Jul 4;12(30):19394-19401. doi: 10.1039/d2ra02753d. eCollection 2022 Jun 29.

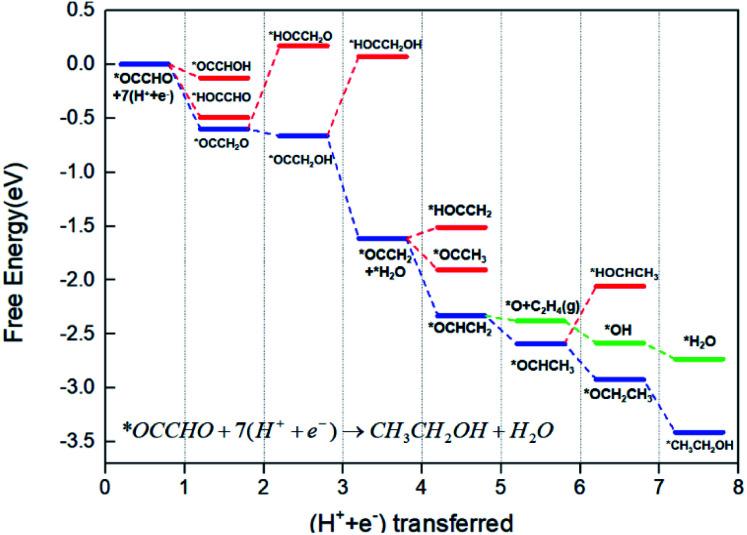

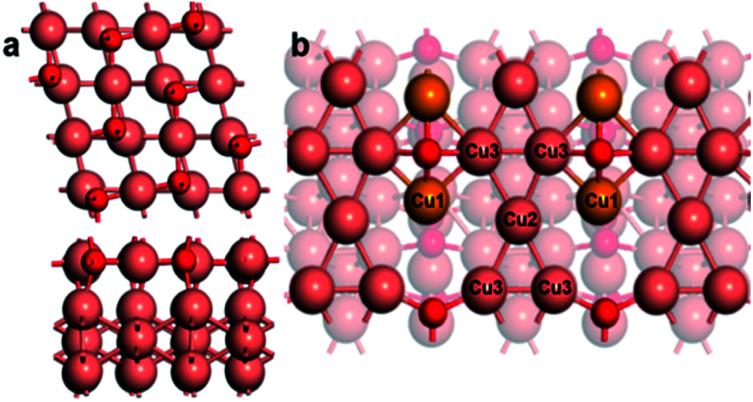

CuO based electrocatalysts generally exhibit better selectivity for C products (ethylene or ethanol) in electrochemical carbon dioxide reduction. The surface characteristic of the mixed Cu and Cu chemical state is believed to play an essential role that is still unclear. In the present study, density functional theory (DFT) calculations have been performed to understand the role of copper chemical states in selective ethanol formation using a partially reduced CuO surface model consisting of adjacent Cu/Cu sites. We mapped out the free energy diagram of the reaction pathway from CO intermediate to ethanol and discussed the relation between the formation of critical reduction intermediates and the configuration of Cu/Cu sites. The results showed that Cu sites facilitate the adsorption and stabilization of *CO, as well as its further hydrogenation to *CHO. More importantly, as compared to the high reaction energy (1.23 eV) of the dimerization of two *CO on Cu/Cu sites, the preferable formation of *CHO on the Cu site makes the C-C coupling reaction with *CO on the Cu site happen under a relatively lower energy barrier of 0.58 eV. Furthermore, the post C-C coupling steps leading to the formation of the key intermediate *OCHCH to C compound are all thermodynamically favoured. Noteworthily, it is found that *OCHCH inclines to the ethanol formation because the coordinatively unsaturated Cu site could maintain the C-O bond of *OCHCH, and the weak binding between *O and Cu/Cu sites helps inhibit the pathway toward ethylene. These findings may provide guidelines for the design of CO and CO reduction active sites with enhanced ethanol selectivity.

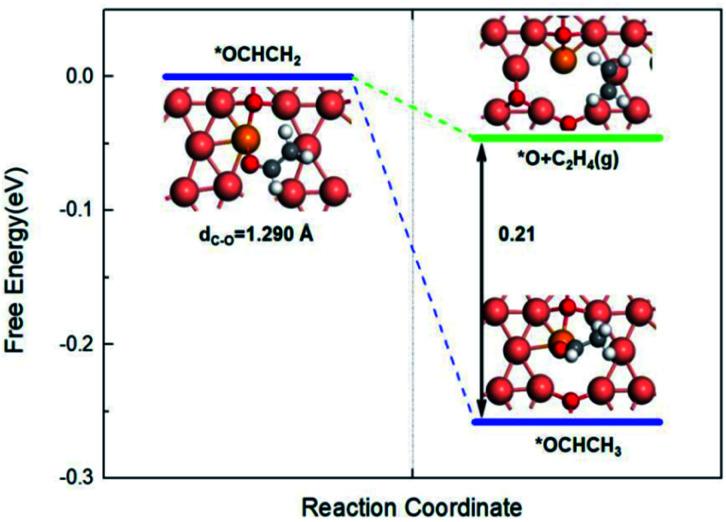

基于CuO的电催化剂在电化学二氧化碳还原反应中通常对C产物(乙烯或乙醇)表现出更好的选择性。混合Cu和Cu化学态的表面特性被认为起着至关重要的作用,但仍不清楚。在本研究中,利用由相邻Cu/Cu位点组成的部分还原CuO表面模型,进行了密度泛函理论(DFT)计算,以了解铜化学态在选择性乙醇形成中的作用。我们绘制了从CO中间体到乙醇的反应途径的自由能图,并讨论了关键还原中间体的形成与Cu/Cu位点构型之间的关系。结果表明,Cu位点促进了CO的吸附和稳定,以及其进一步氢化为CHO。更重要的是,与两个CO在Cu/Cu位点上二聚化的高反应能(1.23 eV)相比,CHO在Cu位点上的优先形成使得CO在Cu位点上的C-C偶联反应在相对较低的0.58 eV能垒下发生。此外,导致关键中间体OCHCH形成C化合物的C-C偶联后步骤在热力学上都是有利的。值得注意的是,发现OCHCH倾向于形成乙醇,因为配位不饱和的Cu位点可以维持OCHCH的C-O键,并且*O与Cu/Cu位点之间的弱结合有助于抑制生成乙烯的途径。这些发现可能为设计具有增强乙醇选择性的CO和CO还原活性位点提供指导。
