Collavini Silvia, Amato Francesco, Cabrera-Espinoza Andrea, Arcudi Francesca, Đorđević Luka, Kosta Ivet, Prato Maurizio, Delgado Juan Luis
POLYMAT Avenida de Tolosa 72 and Faculty of Chemistry University of the Basque Country UPV/EHU P. Manuel Lardizabal 3 20018 Donostia-San Sebastián Spain.
Department of Chemical and Pharmaceutical Sciences INSTM UdR Trieste University of Trieste Via Licio Giorgieri 1 34127 Trieste Italy.
Energy Technol (Weinh). 2022 Jun;10(6):2101059. doi: 10.1002/ente.202101059. Epub 2022 May 4.

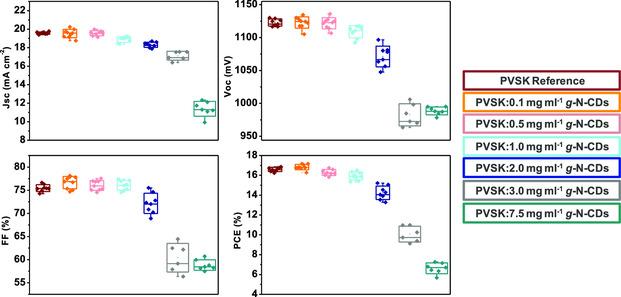

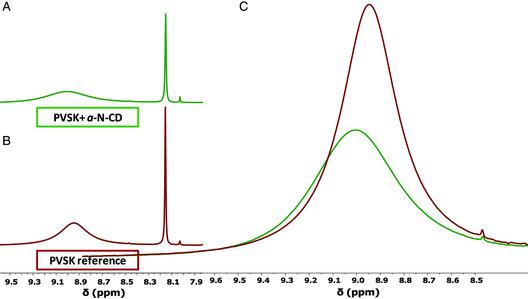

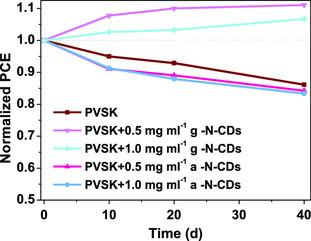

The role of graphitic and amorphous nitrogen-doped carbon dots (N-CDs) as additives for perovskite solar cells (PSCs) is investigated. A detailed study of N-CDs: perovskite (PVSK) blends through X-ray diffraction, nuclear magnetic resonance, field emission scanning electron microscopy, UV-vis, and photoluminescence spectroscopy reveals the existence of interactions between N-CDs and PVSK. The amorphous or graphitic nature of these carbon nanoforms, as well as the interactions between CDs and PVSK, clearly determines the photovoltaic outcome of the PSCs. Thus, a small amount of graphitic carbon dots (g-N-CDs) leads to more-stable PSCs, while maintaining and even improving the power conversion efficiency (PCE). In addition, the long-term evaluation of the g-N-CDs-containing cells shows improvement of the PCE over time, up to 109% of the initial efficiency after 40 days while the reference performance is dropped to 86%.
研究了石墨型和非晶态氮掺杂碳点(N-CDs)作为钙钛矿太阳能电池(PSC)添加剂的作用。通过X射线衍射、核磁共振、场发射扫描电子显微镜、紫外可见光谱和光致发光光谱对N-CDs:钙钛矿(PVSK)混合物进行的详细研究揭示了N-CDs与PVSK之间存在相互作用。这些碳纳米形式的非晶态或石墨性质,以及CDs与PVSK之间的相互作用,清楚地决定了PSC的光伏结果。因此,少量的石墨碳点(g-N-CDs)可使PSC更稳定,同时保持甚至提高功率转换效率(PCE)。此外,对含g-N-CDs电池的长期评估表明,PCE随时间提高,40天后达到初始效率的109%,而参考性能降至86%。
